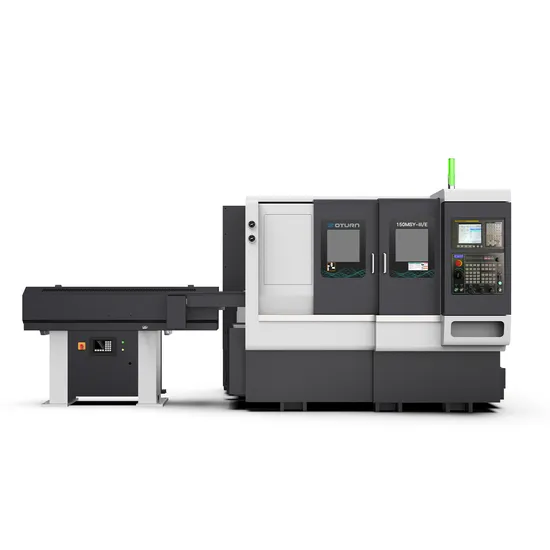

Oturncnc 5 Axis Turning Lathe Center 12-Station Power Driven Double Turret Ety150msy-III CNC Lathe

Product Description

Product Description
The two-axis lathe can process both ends of the workpiece at the same time in one clamping, which greatly simplifies manual operations, increases output and reduces processes. The second spindle enables full turning and expressly transfers workpieces during machining, thereby reducing cycle times. The machine adopts an optimized 30-degree inclined structure design, which also has high precision, super rigidity and excellent cutting stability. The strong structural lathe bed is made of one-piece high-strength HT300 cast iron and uses finite element analysis. The overall mechanical rigidity and stability are excellent, and it can maintain long-term reliable accuracy, improve processing stability and tool life, and stress relief treatment improves accuracy stability. The high-strength roller linear rail design structure, the transmission system adopts screw pre-tension design to improve the rigidity performance, and the simple and elegant appearance is in line with the trend of the trend. Main features of this machine tool: 1. Adopt direct drive synchronous electric spindle device: magnetic ring incremental encoder (sine and cosine) positioning accuracy: 20 arc seconds, C-axis indexing accuracy: 40 arc seconds. Effectively eliminate spindle vibration, and the nose deflection accuracy is within 0.002MM. Improve the surface finish of the workpiece, adopt a rear-mounted rotor, which makes installation and maintenance faster, the spindle motor is equipped with a cooling system to suppress the influence of thermal displacement and ensure a constant operating temperature of the spindle. The spindle system has undergone strict dynamic balance testing. The good accuracy retention, high rigidity and high efficiency enable the whole machine to not only complete finishing, but also perform rough machining and heavy cutting for users. It is especially suitable for mass production of complex shapes and high smoothness. product. 2. High rigidity integrated design servo power turret. It helps the servo turret's rapid and accurate tool changing performance, and when coupled with the power milling of a high-speed power axis, it achieves excellent turning and milling combined processing capabilities. The tool holder is installed using a high-rigidity BMT installation interface, and the power transmission shaft is driven by a servo spindle motor. 3. The machine tool is equipped with roller linear guides and ball screws. The heat-treated and precision-ground ball screws can ensure the best accuracy and durability. Each axis adopts a direct transfer axis structure and a double-anchor pre-relay method, which can make the heat The amount of displacement is minimized, greatly improving processing accuracy. The high-rigidity, large-sized, heavy-duty linear slide rails maintain intact accuracy when the machine is subjected to impact, and the displacement is smooth and low-noise, which can extend the service life. 4. This machine provides users with a complete hydraulic and lubrication system, using high-quality hydraulic pumps, hydraulic valves and other components to greatly reduce the failure rate. The hydraulic and lubrication systems are designed to be simple and reliable. 5. It adopts Taiwan rotary chuck cylinder and optional automatic chip removal device, which can greatly reduce the labor intensity of the operator and achieve safe and efficient production. The above functional components can be programmed and controlled, and various functions can be designed and installed according to the special requirements of the user. A special fixture. Product Parameters

Item	Name	Unit	150MSY-III
Travel	The largest diameter rotating bed	mm	Ф380
	Max. processing diameter	mm	Ф100
	Max.Swing Over Cross Slide	mm	Ф160
	Max. processing length	mm	150
Main-Spindle Hydro cylinder Chuck	Spindle nose	/	A2-5
	Max. speed of spindle	rpm	5500
	Hydraulic Cylinder/Chuck	/	6"/5"
	Spindle hole diame	mm	Ф56
	Bar diameter	mm	Ф45
	Direct drive electric spindle power	kw	17.5
	Spindle direct drive motor torque	Nm	62-125
Sub-spindle Hydro cylinder Chuck	Spindle nose	/	A2-4
	Maximum speed of spindle	rpm	6000
	Hydraulic Cylinde/Chuck	/	6"/30
	Spindle hole diame	mm	Ф46
	Bar diameter	mm	Ф32
	Direct drive electric spindle power	kw	11
	Spindle direct drive motor torque	Nm	27-66
axis feed parameter	X1/Z1/Y axis motor power	kw	1.8/1.8/1.8
	X2/Z2 axis motor power	kw	1.3/1.3
	X1/Z1 axis travel	mm	135/370
	X2/Z2 axis travel	mm	215/400
	X/Z/Y/S axis rapid speed	mm/min	30/30/6/30
	positioning accuracy	mm	±0.005
	repeat positioning accuracy	mm	±0.003
	X1/Z1 axis Slide rail type	mm	(Roller)35/35
	X2/Z2 axis Slide rail type	mm	(Roller)30/30
Servo drive Cutter parameters	The cutter tower type	pcs	BMT45-12T
	Power cutter tower motor	Kw	4.0kw
	Y axis travel	mm	80(±40)
	Maxi.speed of	rpm	5000 ER20
	The cutter biock specifications	mm	20x20
	Circular cutter holder specification	mm	Ф32
	The adjacent tool change time	sec	0.15
Servo drive Cutter parameters	The cutter tower type	pcs	BMT40-8T
	The cutter biock specifications	Kw	3.0kw
	Circular cutter holder specification	rpm	5000 ER20
	The adjacent tool change time	mm	20x20
	Machine size	mm	Ф25
	Machine Weight	sec	0.15
Outline dimensions	Cutting fluid tank volume	m	2.2x2.1x1.7
	Volume of hydraulic unit box	kg	3500
Other	Hydraulic oil pump motor power	L	150
	Volume of lubricating oil tank	L	40
	Auto lube pump motor power	kw	1.5
	Cooling water pump power	L	2
	The cutter tower type	W	50
	The cutter biock specifications	W	750
