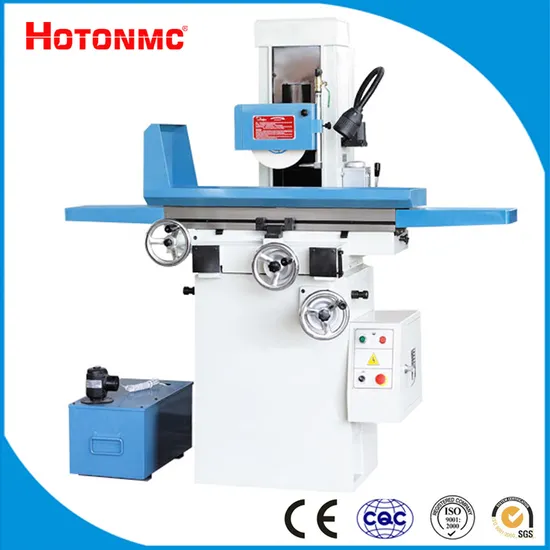

Manual Surface Grinder Machine with CE Approved M618A MD618 M820 M818A
| US$2,000.00-3,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
M618A M818A M820 M1022
Abrasives
Grinding Wheel
Controlling Mode
Artificial
Automatic Grade
Manual
Cylindrical Grinder Type
Surface Grinder
Precision
Precision
Certification
CE, RoHS, ISO 9001
Condition
New
Table Size
155X460mm
LONGITUDINAL TRAVEL
500mm
CROSS TRAVEL
185mm
motor
1.5kw
WHEEL SIZE
200X13X31.75mm
Transport Package
Plywood Case
Specification
800kgs
Trademark
HOTON
Origin
Shandong, China
HS Code
8460190000
Production Capacity
10 PCS/Month
Product Description
MANUAL SURFACE GRINDING MACHINE FEATURES:
1 Adopt the exceeding precise class7(P4 level) ball bearing for spindle
2 Bring transmission by synchronous belt, operating simple and convenient
3-axis manual operation, X, Y axis can be eletric auto operation.
High rigidity H-frame column with spindle center to table
Enhanced ribbed full cast iron base
Enlarged spindle housing for heavier grinding
Cartridge w / 4 preloaded class 7 (P4) bearing
Roller steel balls on linear table ways for easy and smooth longitudinal movements.
Double-V saddle ways for rigidity
Manual lubrication system
SPECIFICATIONS:
| TECHNICAL PARAMETERS | UNITS | M618A | |
| Max.work piece to be Ground( L×W×H) | mm | 500×190×335 | |
| Max. Grinding Length | mm | 500 | |
| Max. Grinding Width | mm | 190 | |
| Distance From Table Surface To Spindle Center | mm | 335 | |
| Slide way | V-type rail with Steel-ball | ||
| V-type rail with Steel-ball | Kg | 200 | |
| Table Size (L×W) | mm | 460×180 | |
| Number of T -Slot | mm×n | 12×1 | |
| Speed OF Working Table | m/min | 3-23 | |
| Cross Feed On Handwheel | mm | 0.02/Graduation 2.5/revolution | |
| Vertical Feed On Handwheel | mm | 0.01/Graduation 1.25/revolution | |
| Wheel Size (dia.×width×bore ) | mm | 200×16×31.75 | |
| Spindle Speeds | 50Hz | rpm | 2850 |
| 0-6000 | |||
| Spindle Motor | Kw | 1.1 | |
| Coolant Pump | Kw | 0.4 | |
| Minimum of Numerical Display | mm | ||
| Machine Size (L×W×H) | mm | 1550×1060×1590 | |
| Packing Size (L×W×H) | mm | 1060×1170×1870 | |
| Gross,Net | T | O.75, 0.65 | |
| Contact Us: |
| Andy Wang TENGZHOU HOTON MACHINERY CO.,LTD Tel:0086 632 5633796 MP:0086 13506328892 hotonmachinery.en.made-in-china.com |
| Company Profile: |
| Tengzhou Hoton Machinery Co.,LTD was established in 2006, and is the professional machine manufacturer in China. There are 480 workers, of whom 60 are engineers. It has an area of 46,000 square meter, general assets 30,000,000. It has a store of 350 equipments and the good ability of products design & manufacturing. It has export quality permit from 2007, and has export right given by the State Foreign Economic Trade Committee in 2008. |
| The leading products: "Hoton" series of CNC machines, Lathes, Milling machines, Drilling machines,Grinding machines, Saws, Sheet metal machines, Metal forming machines, and other machine accessories.Some products have national patent.It has fourteen series, over eighty models by itself. It has the ability of making 100,000 sets every year. All the products are designed perfectly and has high quality high performance and low price, and the excellent quality guarantee system. The products have past ISO9001 and CE certification since 2009. The products have been export to five continents, over forty countries and areas. It resulted to the attraction of client abroad and home, the quickly promotion of products sale. |
| Tengzhou Hoton Machinery Co.,Ltd. is willing to make common progress and developments with all the customers. Quality first,Constantly perfecting skills. |
