Tractor Cultivator Chisel Plough Heavy Duty

Product Description

Product Description
3ZT FIELD CULTIVATOR
1) The machine has the characteristics of convenient space adjustment and easy depth adjustment. Its structure is reasonable, durable, easy to use, easy to maintain and can meet the agronomic requirements of intensive farming.
2) The machine adopts double spring tension device, in which the plow tip can automatically bounce up when it encounters obstacles in the working process, and quickly restore its original working state after crossing, thus playing the role of protecting the plow tip. The vibration of plough legs caused by uneven soil resistance is helpful to reduce the matching power.
3) The machine can install two types of plough tips: deep-loosening plough tips and loosening shovel, so that the machine can be applied to middle tillage, loosening soil, moisture conservation, weeding and other operations of field crops.

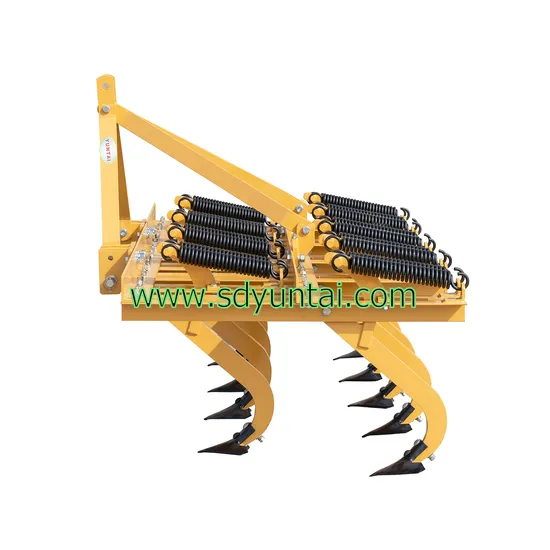

Detailed Photos

Model	3ZT-5	3ZT -7	3ZT -9	3ZT -11	3ZT -15
No. of tine	5	7	9	11	15
Working depth(mm)	200-250	200-250	200-250	200-250	200-250
Working width(mm)	1200	1500	2100	2850	3000
Matched power(hp)	30-40	50-65	60-80	60-80	80-110
Weight (kg)	200	255	315	370	520

SHANDONG YUNTAI MACHINERY CO.,LTD., founded in March 2005, registered capital 100 million CNY, covering an area of 135,000 square meters, is a leading
exporter of agricultural machinery and accessories.
YUNTAI company produce 20,000 sets tractor implements and 1,500,000 pcs of
accessories annually and have its owe R & D team and strong production capacity.
YUNTAI company produce agricultural machinery and accessories matched with
18 to 500 horsepower tractor. Including the tillage, fertilizering,Seeding, harvesting,
transporting and plant protection machinery. Main equipments are disk plow, disc
harrow, subsoiler, rotavator, rear blade, spreader, mower, trailer, grain cart, potato
harvester, thresher etc. Main accessories are farm disc blade, plowshare, plow shovel, harrow tine, bearing assembly, harrow axle, trailer axles ,forging parts, casting parts
and so on.
YUNTAI company have advanced production lines of machining, welding,
punching, forging, sandblasting and powder coating. We also have two automated heat treatment lines and the heat treatment production technology is at the top level in the industry. Our products are exported to more than 70 countries and regions, such as the
United States, Germany, France, Australia,Asia, Africa,etc.
