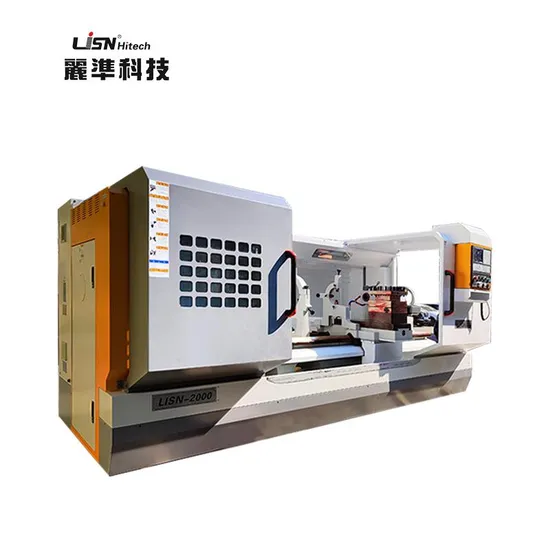

Ck6185 CNC Lathe Machine 5 Axis CNC Milling and Turning Composite Machine

Product Description

Product Description
1.This machine is a two -coordinate (longitudinal Z,horizontal X) continuous control horizontal CNC lathe .lt has higt processing performance for the processing of shft and disc parts.lt is suitable for large batch size ,high processing precision and dimensional consistency.lt requires high processing of parts ,especially suitable for ,aerospace ,automtive ,mold,instrumentation and other mechanical processing industrise,and efficient,high -volume ,high -precision machining of parts.lt is a high effciency,high precision,high quality,high efficiency,low cost machine tool.
2.The machine tool adopts a mechanical, electrical and hydraulic integrated structure, and the overall layout is reasonable. Its high speed, high precision and high rigidity provide users with high efficiency and high reliability in use. The key purchased parts are purchased through bidding, and the products of well-known manufacturers are selected to ensure the precision and reliability of the machine tool. The whole machine adopts a closed full protective structure, which conforms to the principle of ergonomics and is easy to operate, which is conducive to safety and reduces the pollution to the production and operation environment.
Main Features
Excellent stability Excellent rigidity High performance Safety gate Maximum rotary diameter of bed body: φ500 Maximum swing diameter on board: φ260 Maximum length of workpiece: 1000mm, 1500mm and 2000mm Detailed Photos
Product Parameters

Main Technical Parameters LiSN-2000
Items		Unit	Parameters
Maximum rotary diameter of bed body		mm	φ500
Maximum swing diameter on board		mm	φ260
The high of the bed center		mm	250
Maximum length of workpiece		mm	750
			1000
			1500
			2000
Maximum turning diameter		mm	φ500
X Axis travel distance		mm	290
Z Axis travel distance	1000	mm	1800
X/Z rapid feed rate		mm/min	3800/7600
X Axis servo motor torque		Nm	6
Z Axis servo motor torque	750-1500	Nm	10
	2000	Nm	15
Spindle Speed Range(Manual)	Low speed	rpm	16-160
	Medium speed	rpm	120-600
	High speed	rpm	400-2000
	Low speed	rpm	12-100
	Medium speed	rpm	70-300
	High speed	rpm	260-1200
Form of spindle nose		type	C-6
			D-8
			D-11
Hole through spindle diameter		mm	φ52
			φ82
			φ 105
Taper hole of the spindle			Morse 6#
			90 1:20
			120 1:20
Manual three-jaw chuck		mm	φ250
Spindle motor power		kw	7.5Kw Servo 7.5kw
Electric tool holder form		type	Four vertical stations
Cutting tool specifications		mm	25×25/φ32
Tail seat sleeve diameter		mm	φ75
Taper of tail seat sleeve hole		mm	MT5#
Dimensions	1000	mm	2625x1414x1815 2600KG
		mm
		mm

Company Profile
Lizhun Machinery Co., Ltd. is a company focused on innovation, development and production of CNC machining centers and CNC lathes. Adhering to the spirit of innovation and excellence, the company has provided many famous enterprises at home and abroad with extremely superior machines in performance, precision and quality. In the future, Lizhun will continue to maintain the spirit of innovation and excellence to provide strong and lasting support for the processing industry, and provide excellent processing machines for 5G, aviation, automobile and other industries.
Lizhun Machinery Co., Ltd. is located in Dongguan, Guangdong province. The product exhibition hall is located in Songshan Lake, Dongguan City, with beautiful scenery and elegant working environment. The factory is located in Dalingshan, with complete facilities and experienced staff. The staff has many years of experience in innovation, development, assembly and production, which ensures that each machine has extremely outstanding quality and performance when it leaves the factory.
The factory covers a large area and has multiple production lines to ensure production capacity and supply capacity. Excellent capacity and supply capacity can ensure that customers can receive the machine within the agreed time which can avoid a series of problems caused by insufficient capacity.

FAQ
1. Is it all right to make customer's own brand name?
A: yes. we are available with OEM

2. Are you a manufactuer or trading company?
A:We are the manufacturer

3. Can you do the design for us?
A: yes. if you want a different control system design or higher column , we are available.

4 . What is your terms of delivery?
A: FOB shenzhen.

5. What's your payment term?
A: T/T OR L/C at sight.
