Energy Saving 180m3/h Road Building Bridge Construction Concrete Mixing Plant Equipment

Product Description

Product Description
Stability and Durability: adapt and apply the most advanced technologies around the world.
Stationary modular structure, fast and easy installation.
XDM JS Concrete mixer or Sicoma mixer, Excellent mixing performance with high efficiency and high productivity.
Excellent environmental protection, dust collection system and anti-noise design.
Special lifting mechanism,start and stop smoothly.long life of steel wire rope.
Feeding and mixing complete sealing,powder material silo adopt pulse negative pressure dust catcher, no pollution.
Weighing accurately, control humanization an intelligent.
Complete failure prevention and alarm mechanism, not because the voltage is not enough to block the discharging door.
Increasing aggregate bin volume, can use assisted feeding mechanism to loader no longer busy.

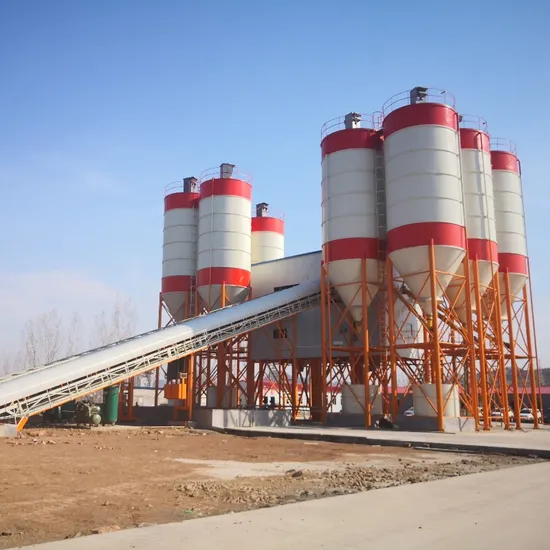

Detailed Photos

1	Aggregatestorage hopper-4 x15 m³
2	Aggregate weighing hopper -1.5 m
3	Aggregate weighing conveyor -800x11.100 mm
4	Skip hoistsystem
5	Mixer chassis and superstructure
6	Twinshaft mixer with lubrication system-1 m
7	Cement weighing hopper- 600 kg
8	Water weighing hopper-300 lt

9	Additive weighing hopper-20 lt
10	Air compressor and pneumatical equipment
11	Control panel,pcand plotter, power panel
12	Control cabinet with air conditioner
13	Cement silo-75 tons capacity
14	Screw conveyor
15	Silo top filter-24.5 m² surfacearea
16	Safetyvalve, level indicators, silo accessories

Product Parameters

Model Lifting Type Theoretical productivity m³/h Mixer capacity Weighing Precision Power kw

HZS25	Bucket	25	500	Aggregate 2%	Powder Water Additive 1%	37
HZS35		35	750			50
HZS50		50	1000			74
HZS75		75	1250			105
HZS60	Hopper lifting/ high blocking edge/ flat belt/ herringgbone pattern	60	1000			75
HZS90		90	1500			110
HZS120		120	2000			140
HZS180	Flat belt/ herringbone pattern	180	3000			205

Company Profile
FAQ
1 : Are you original manufacture?
A: Yes. we are HongHua, an official leading manufacture in construction machinery in China.
Core products cover:
Asphalt Mixing, Concrete Mixing and Stabilized Soil Mixing Plant;
2:What kind of payment can be accepted?
A: Normally we can work on T/T term or L/C term.
3:Do you provide equipment operation training?
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training.
4:What about the delivery time?
A: 45 days after receving the deposit.
5:What about the warranty time?
A: 12 months after shipment.
6.What about the Minimum Order Quantity?
A: The MOQ is 1 pcs.
