Multifunctional Hydraulic Stone Splitting Machine Manufacturer

Product Description

please contact Alysa for details
Stone Cutting Machine for all kinds of stone
Introduction

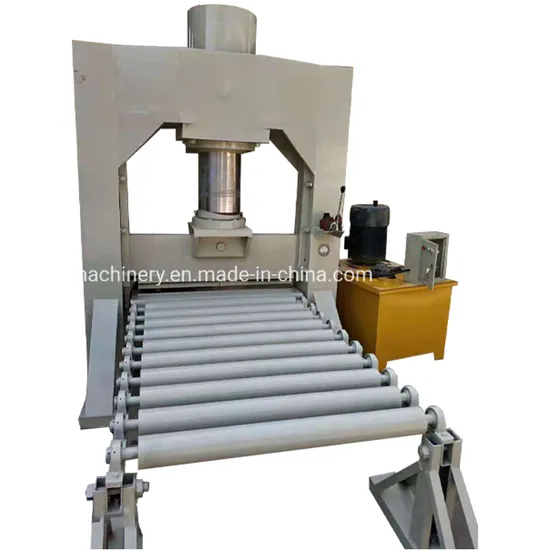

This machine is a hydraulic equipment that can quickly split granite, marble, sandstone, basalt, slate and other rocks. The huge power of 320 tons, coupled with the ultra-wide knife edge of 1200mm, enables it to cut large-scale blocks of any rock into large-scale building stones, curb stones, strip stones, and various specifications with a maximum cross-section of 1200*800mm. It also provides semi-finished products for small blocks, paving stones, wall stones, curb stones and other small models of stone cutters.
Because the upper and lower cutter bodies can automatically expand and contract 1-3cm according to the shape of the stone, even if the surface shape of the block is a little irregular, it can be quickly split, and the section is flat and accurate.
Application field and introduction of stone splitter
(1) Mining operation of building stone: secondary disintegration of large ores (metal ores, non-metal ores);
(2) Partial and complete demolition of concrete components (cement pavement, machine tool foundation, bridge and housing components).
(3) Crushed stone treatment of dangerous rock slopes in housing construction on water conservancy and hydropower expressways.
(4)Excavation of foundation pits, trenchless pipeline construction, and removal of road blocking boulders.
Parameter

Model	Power	Max.pressure	Capacity	Processing size	Dimension	Blade size	Weight
TP-40	4kw	40T	1000kg/8h	200*400mm	1300*1100*1900mm	330mm	750kg
TP-100	7.5kw	100T	5000kg/8h	300*600mm	1500*1100*1900mm	600mm	1000kg
TP-350	16kw	350T	1200kg/8h	1000*1000mm	2500*2000*4000mm	1000mm	4000kg
TP-500	18kw	500T	1200kg/8h	1500*1500mm	3000*2000*4500mm	1500mm	5000kg
Remark: If you need other models, we can customize for you.
