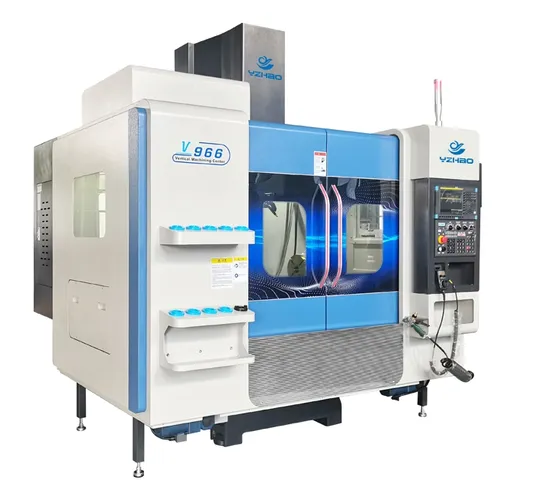

High-Precision V966- CNC Machining Center for Efficient Manufacturing Solutions

Product Description

Product Description
V series vertical machining centers are high-efficiency, high-precision vertical machining centers developed by our company.
The main structure is made of high-quality Meehanite cast iron to ensure long-term and stable accuracy. The structure of the
machine tool is designed through finite element analysis, and the reasonable structure provides high rigidity of the machine
tool. Three-axis precision ball screw pre-tensioning design, servo motor direct drive, no backlash, providing high-speed
motion transmission performance and precise position control. Milling, boring, drilling, tapping and other processes can be
completed in one clamping. It is suitable for high-speed precision machining of small and medium-sized mechanical parts
in industries such as general machinery, automobiles, and textile machinery.

Vertical CNC Machining Centers
Name	Unit	V850	V966	V1167	V1270	VM1370	VM1380	VM1680	VM1890
Worktable size(L*W)	mm	1000*500	1000*550	1200*600	1400*700	1500*700	1500*800	1700*800	200*900
Worktable loading capacity	kg	500	600	600	800	1000	1500	1500	1500
T slots-width*Pitch	mm	5-18*80	5-18*90	5-18*100	5-18*125	5-18*145	5-22*145	5-22*145	5-22*164
Max. travel of the workbench-axis X	mm	800	900	1100	1200	1300	1300	1600	1800
Max. travel of the slide-axis Y	mm	500	600	600	700	700	800	800	900
Max. travel of the spindle-axis Z	mm	550	600	700	700	700	700	730	750
Distance form spindle nose to table	mm	120-670	120-720	120-820	120-820	150-750	130-830	130-860	150-900
Distance form spindle nose to table	mm	550	630	670	770	750	860	860	860
Spindle speciff cations		BT40	BT40	BT40	BT40	BT50	BT50	BT50	BT50
Spindle form		(Belt/Direct)
Maximum spindle speed	r/min	15000	15000	15000	15000	6000	6000	6000	6000
X/Y/Z X/Y/Z Rail speciff cations	mm	35/35/35	45/45/45	45/45/45	45/45/45	45/4*45	55/4*45	55/4*45	55/4*45
Screw speciff cations	mm	R3616	R4016	R4012	R4012	R4012	R5010	R5010	R5010
X/Y/Z X/Y/Z Rapid feed rate	m/min	48/48/48	36/36/36	36/36/24	36/36/24	24/24/24(12)	20/20/20(12)	20/20/20(12)	20/20/20(12)
Positioning accuracy	mm	0.01	0.01	0.012	0.012	0.012	0.012	0.015	0.015
Repeat accuracy	mm	0.008	0.008	0.01	0.01	0.01	0.01	0.012	0.012
Optional magazine	T	24/30	24/30	24/30	24/30	24/30	24/30	24/30	24/30
Total weight	kg	4500	5500	6000	7000	8500	10500	11500	14500
Overall dimension	mm	2500*2850	2600*2950	3100*3050	3200*3250	3850*3150	4050*3250	4350*3350	4950*3550

We are a professional machine tool manufacturer, mainly producing full-function CNC CNC lathes of inclined body type, cutter tower type, turning and milling compound, as well as CNC machining center series, CNC gantry machining center series, industrial robots and automation special equipment, etc. We can also provide customers with customized equipment manufacturing. Our products are widely used in aerospace, auto parts, ship parts, communication industry, high-speed rail parts, refrigeration parts, household appliances parts, plumbing parts, valve industry and hardware mold parts and other fields. We work with partners all over the world to provide our customers with superior products and services.
