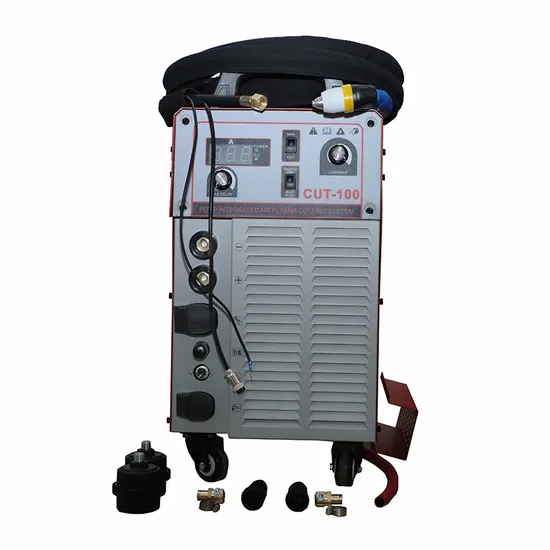

Metal Cutting Air Plasma Cutting Machine

Product Description

Main Features:
Our plasma power supply is designed with advanced inverter technology and is suitable for plasma cutting systems that use compressed air to cut. inverse
The emergence of variable welding and cutting equipment benefits from the appearance of inverter power supply theory and devices:
1) CUT-40/60/80/100/160 inverter cutting power supply uses high-power device IGBT to convert 50/60Hz power frequency to medium
frequency. Subsequently, the voltage is reduced and the current is adjusted. At the same time, pulse bandwidth modulation technology (PWM) is used. Can produce a powerful large power supply that can be used for cutting.
Compared with traditional rectification and conversion technology, the advantages of inverter technology are mainly in the obvious low energy consumption, lighter weight, and the structure is smaller and more compact, and the performance is better. Built-in air compressor plasma cutting machine, you can work anytime and anywhere.
Our series of plasma cutting power supplies can provide a stronger, more concentrated and more stable arc. The air in the arc is almost all electric
The arc temperature can reach 10000-16000°C, reaching a high degree of ionization, forming a powerful plasma arc. This means
The plasma arc can be used to cut metal quickly, and the heat affected zone can be reduced as much as possible, and the energy can be effectively used.
It can be used and can obtain an extremely smooth cutting surface, which brings convenience for subsequent processing.
Compared with other cutting power supplies, our series of inverter plasma cutting power supplies can provide fast electricity through advanced electronic circuits.
Source adjustment and control, with first-class cutting operation characteristics and extremely high conversion efficiency.
Our series of plasma cutting power supplies have many uses. They are mainly used in the cutting of metal sheets, including some
It can be used when the equipment cannot be cut, and can be used for various metal materials with different properties, including stainless steel, alloy steel, carbon
Steel, copper and other non-ferrous metal materials. This machine can cut the plate into complex shapes as required.
