L230 Coating Thickness measurement

Product Description

Product Description

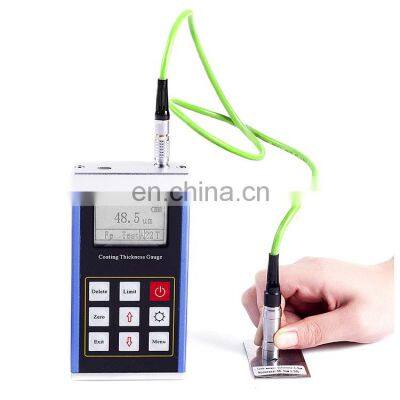

L230 Coating Thickness GaugeProduct Description1. Coating thickness gauges are widely used in the fields of electroplating, anticorrosion, aerospace, aviation, chemical industry, automobile, shipbuilding, light industry, and commodity inspection. 2. It can be used not only in the laboratory but also on the engineering site. Configure different probes, suitable for different occasions.3. It is an essential instrument in the nondestructive testing industry.1. Full English menu;2. Two working methods;3. Data deletion function;4. Automatically alarm the measured value outside the limit;5. Power supply undervoltage indication;6. Manual and automatic shutdown modes7. Two measurement methods;8. Can store 500 measured values;9. The limit can be set.Function:The magnetic measurement method can be used to detect the thickness of the non-magnetic coating on the magnetic metal substrate (such as aluminum, chromium, copper, zinc, tin, rubber, paint, etc. on steel alloys and hard magnetic steel).SpecificationModelL230Probe typeF1Working principleMagetic inductionMeasuring range0~1250μmLow resolution0.1μmIndication errorOne point calibration±（3% H + 1）Two-point calibration± [(1 ~ 3%) H + 1]Test ConditionsMinimum radius of curvature mmConvex 1.5, concave 9Minimum area diameter mmΦ7Basic critical thickness mm0.5working environmenttemperature0 ~ 40 ℃humidity20% ~ 90%power supplyAA type alkaline battery 1.5V twoshellmetal shellDimensions150 × 55.5 × 23mm (host)weightF1 / 320gStandard configurationHost, standard test piece, substrate, AA type alkaline battery, probe F1Packing & Delivery · Tianjin port or Qingdao Port deliver by sea and also can ship by air via express companyCompany ProfileCangzhou Lovely Technology Co., Ltd. is a professional manufacturer, specializing in Testing Equipment, Universal Testing Machine, Asphalt Tester, Test Molds, Soil Road and Lab Tester. We supply various type of products ..... We assure high quality to you.All our products are made in China. Excellent quality with competitive price.FAQQ1: Are you a factory or trading company? A: We are a factory specializing in manufacturing soil, concrete, cement, aggregate , asphalt test equipment, etc.Q2: Where is the loading port?A: Tianjin port or Qingdao Port.Q3: How to choose the Transportation Term? A:Usually,we may according to your needs,we may choose the most reasonable freight,then to select for you. Q4: What certificates do you have? A: We have ISO 9001, CE, SGS. Q5: Do you have an OEM service?A: Yes. We can provide OEM services according to your requirements.Q6: What are the payment terms?A: T/T payment is preferred and other could be accepted, such as L/C, D/P, Western Union, PayPal etc. It is negotiable
