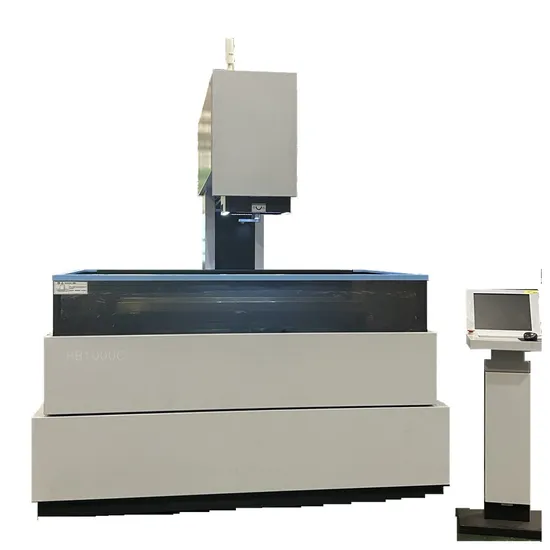

AC Servo Large Travel CNC Machine Tool Wire Cutting EDM Machine

Product Description

Product Features
2.Best roughness Ra<0.6um
3.Max.cutting speed hit 300mm²/min
4.With advanced and particular pluse power, gets lower loss.The diameter of wire wore 0.005mm in 200000mm2 cutting.
5.Professional high-quality industry computer and international brand parts makes the products good performance.
6.High-strength resin castings ensure the machine body having enough rigidity and strength
7.Handy control Product Parameters

Worktable Travel	1000x600 mm
Wire Electrode Diameter	Φ 0.10-0.22 mm
Machine Weight	2500 kg
Mahine Layout Size	2260 x 1870 mm
Max. Cutting Thickness	500 mm
Max.Cutting Tapper	12°/100 mm
Max. Workpiece Weight	900 kg
Max. Workpiece Size	1250x700x400 mm
Max. Workpiece Current	12A
Best Surface Roughness	0.6 μm
Max. Workpiece Current	300 mm2/min
Power Supply	3-380V10% 50±1Hz
Environment Temperatuer	10-35°C
Consumed Power	1.2 kVA
Language(Optional)	Chinese,English, Korea, Japanese

Detailed Photos
The new head design ensures the cutting accuracy, simplifies the operation steps and improves the cost performance.
Protect Environment
Frame-shaped water-retaining structure prevents leakage of the cutting fluid in the machining area. The brand-new elevating manager make it more convenient to set work-pieces and greatly saving the space.
LED light
LED light with working indicator light, so you can check the equipment's running state at any time.
Two ways of wire threading
It meet different machining needs, and helps to change the guider much easier.
Centralized lubrication
Centralized Lubrication for screw of guide rails keeps workshop clean and tidy.

Comprehensively meet the latest national standard for medium-speed wire cutting EDM ( JB/T11999.1-2014 )
Forward-looking design concept and wide use of low-speed wire cutting technologies ensureunprecedented machining performance and realize machining reliability and consistency on thebasis of high efficiency.

Nonelectrolyte power supply technology
The titanium alloy minimizes thecontamination on the surface of materials through discharge controlnduring machining with nonelectrolytic power supply, preventing oxidation andiscoloration on the surface
High speed nonelectrolyte power to inhibit electrolytic corrosion, to prevent the formation of "softening layer" and improve the surface quality
Maching Features


Checking Instrument and equipment
Comprehensively meet the latest national standard for medium-speed wire cutting ( JB/T11999.1-2014)
The use of dual-frequency laser interferometer, three-coordinate measuring instrument, ball.bar, geometric accuracy measuring instrument and other high-precision testing instrumentsand inspection and test procedures executed in strict accordance with the latest nationalstandard for medium-speed wire cutting run through the whole production process ofproducts, guaranteeing the excellent quality of each product in an all-round way.

Company Profile
Suzhou Sanguang Science&Technology Co., Ltd. is a research and development, manufacturing, production, sales, service as one of the high-tech enterprises, is a leading enterprise specializing in the production of CNC electrical discharge machine tools . The company is located in the scenic Suzhou National High-tech Industrial Development Zone, headquartered in No. 145 Songshan Road, Suzhou New District.
Company product line "SANGUANG" brand includes Brass wire cut EDM, Molybdenum wire multi-cutting EDM, Die-Sinker EDM and Small hole drill EDM. Taking advantage of the brand advantage of "Sanguang Brand", it integrates the characteristics of international mainstream machine tools in the design and manufacture, relies on stable quality, reliable performance and humanized operation mode, which is favored by various users . In addition to having a stable market in China, the products are also exported to the United States, Germany, Turkey, Sweden, Japan, South Korea, Australia, Poland, Hesigo, Saudi Arabia. Iran, Brazil, South Africa, Colombia, Malaysia, Thailand, India, Vietnam ect.

Company History
1966 : Suzhou No.3 Optical Instrument Factory
1968 : Started to research Molybdenum wirecut EDM machines with photo electric tracing
1969 : Developed and produced GDX-1model
1982 : Developed and produced SSX-3molybdenum wire cut EDM machine based onSingle-board machine controller
1984 : DK7725D machine won the National Sliver Medal
1989 : The company entered into partnership with COSMOS international MachineryCo.,Ltd Hongkong to set up a joint venture called Suzhou Sanguang Electric MachineryCo. Ltd
1994 : Sodick Co.,Ltd Japan entered into partnership and the name of the company was changed into Suzhou Sodick-Sanguang Electric Machinery Co.,Ltd
1995 : Started to research and producedDK7632 Brass wire cut EDM machine
2008:Relocated at No.145 Songshan Road Suzhou, China, plant area 38060m²
2010 :Multi-cutting molybdenum wire cut machine, HA series were released ;
2012 :The latest Brass wire cut machine, LA series were released
2014 :Became a public company , stock code :430414
2016 :Developed and produced HB400,which won IF award of 2017
2018 :Released the latest Linear Motor machine HB400L
Certifications
