Aggregate Cone Crusher / Aggregates Crushing Cone Crusher for Sale

Product Description

Product Introduction
GPY series single-cylinder cone crusher developed and manufactured by our company is currently the most advanced cone crusher in whole China. It aims at the high end market and is integrated with the advanced mechanical, electrical and hydraulic technologies as a whole, which achieves the perfect crushing efficiency. It features in robust casting steel frame, forged alloy main shaft, and high accurate arc gear transmission system. Combined with one suitable crushing chamber from all optionals and PLC automatic control system, the cone crusher could fully play its performance and advantages. It is widely used for the fine and coarse crushing of various kind of stones and minerals, which features in high crushing efficiency, and could meets different crushing requirement for our clients.
Technical Parameters

Model	ECC. mm	Feed opening(mm)						Power kw	CSS(mm)/ Throughput Capacity(t/h)
		EF	F	MF	M	C	EC		8mm	10mm	15mm	20mm	25mm	30mm	35mm
GPY100	20	40	50	100	130		150	90	45-50	45-55	65-75	90-100
	25									50-60	70-85	100-115
GPY200	25		70		130		210	160		85-105	105-125	125-150	155-175	180-205
	32										135-155	165-185	185-215
GPY300	32		60	100	130	180	260	250	100-200	110-140	155-185	185-215	220-250	255-285	290-320
	40									140-160	195-225	235-265	280-310	315-345

Note: EF= Extra Fine, F= Fine, MF= Medium Fine, M= Medium, C= Coarse, EC= Extra Coarse
Product Features
(1)The crushing chamber is designed as curve and combines the theory of laminating crushing, which features in high capacity, less platy grain content, because the material in chamber is squeezing each other and is crushed according to its texture.
(2)Compared with spur gear, the transmission gear possesses bigger torque and better transmission performance.
(3)The alloy casting frame is super robust and durable, besides, the lower frame is specially enhanced.
(4)The high-strength forging main shaft is super robust and durable, which is suitable of crushing hard rocks, at the same time, it is light in weight.
(5)The modular design of lubrication system and hydraulic system work separately, so the breakdown probability is reduced.
(6)The positive pressure anti- dust system ensures the clean of lubrication system. No extra grease seal and labor maintenance needed during operation.
(7)LC intelligent operating system makes the over-load protection, iron enter protection and plate wearing auto compensation high automated. Besides it can remotely monitor the oil temperature, flow, pressure and other parameters.
(8)Special designed mantle and bowl liner with high utilization ratio, which greatly reduce the wearing parts stock expenses.
(9)Most parts can be assembled and disassembled on the upper and lateral sides, which makes the machine maintenance labor-save and time-save.

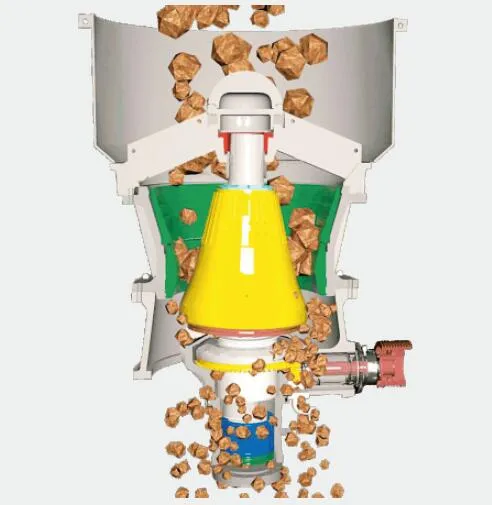

Structure
Test Running
Before delivery, we do trail running on the crusher, the technicians will check the vibration, noise, heating and other conditions of the crusher. Unqualified products could not be delivered to the customers.
Package and Delivery
The hydraulic stone cone crusher should be processed to be rustproof and moisture proof before delivery. The small parts are packed into wooden crates; the big parts are wrapped by plastic sheeting.
Company Overview
ATAIRAC History&Scale
Established Time:In 1958
Production Base:Around 300,000 square meters
Employees No.Around 1000
Machinery&Quality Control
(1) Over 500 sets machining equipment and inspection equipment
(2)Complete crushing machinery manufacturing industry chain
(3) Certificates:ISO, CE,BV,TUV,GOST
R&D Ability
(1)4 research and development base
(2)Around 60 design engineers
(3)Cooperating with international advanced crushing machinery companies
(4)Industrial standard maker of <Vertical Shaft Impact Crusher>
(5)Industrial standard maker of <Complex Vertical Impact Crusher>
(6)Industrial standard maker of <Autogenous Grinder>
(7)Industrial standard drafter of <Four Roller Crusher >
(8)62 Technical Patent in crushing and grinding machinery
ATAIRAC Crushing Solution
3000TPH downward stationary crushing&screen production line
800TPH downward mobile crushing&screen plant
300-2000 thousand tons per year steel slag recycling production line
Construction waste recycling production line
FAQ
1. How long is the date of delivery?
30 working days after payment of earnest money or depends on order quantity.
2. How long is the gurantee period of your GPY hydraulic cone crusher?
We guarantee quality of the machines (excluding wearing parts) for a period of one year from the date of trial run finish under our technician's guidence.
3. What's the after sale service of your company?
We will send engineers to guide your workers to install the machine, take trial run; the buyer should prepare the materials and tools needed, and offer necessary assistance. The actual expenses incurred for accommodation, to and from travel for the engineer, and insurance, should be borne by the buyer.
