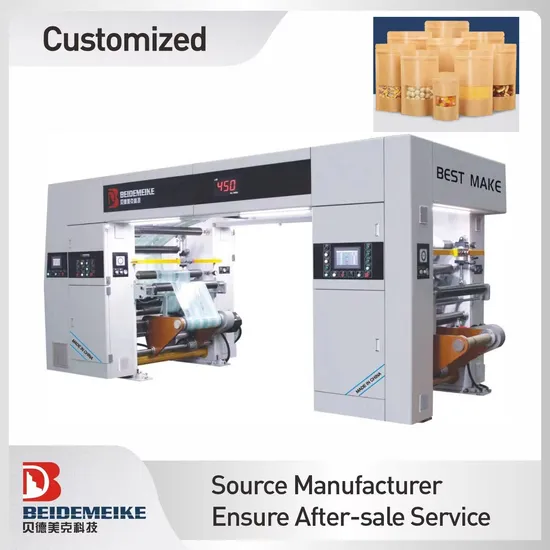

Multifunctional Flexible Packaging Solventless Lamination Machine for Plastic Aluminum Kraft Paper Bag

Product Description

Introduction
A solvent-free laminating machine is a type of equipment that uses solvent-free adhesives for lamination processing, and is widely used in industries such as printing, packaging, and electronics. It has become an indispensable and important equipment in modern industrial production due to its characteristics of environmental protection, safety, efficiency, and energy conservation.
Product Parameters

Model	BD-1050A	BD-1250A
Max. speed	400m/min	400m/min
Feeding width range	400-1050mm	500-1250mm
Max.unwind diameter	Ø800mm	Ø800mm
Max.rewind diameter	Ø800mm	Ø800mm
Paper core of unwinding	3''or6''	3''or6''
Paper core of rewinding	3''or6''	3''or6''
Edge tidiness for lamination	±2mm	±2mm
Total power	Approx55kw	Approx 60kw
Machine dimension	Approx5600(l)*2600(w)*2450(h)mm	Approx5600(l)*2800(w)*2450(h)mm
Machine weight	Approx.8000kg	Approx.8500kg

Main Features
1. Advantages : Modular design, making machine installation and daily use easier.
2. Applicable objects: Large and medium-sized flexible packaging enterprises and other types of Composite Enterprises.
3. Applicable scope: Various films, aluminium plating films, aluminium foil, paper, etc.
4. Accurate coating control and easy adjustment. The coating unit adopts
independent servo drive and linear independent adjustment.
5.Coating unit: Five roller coating structure: Measuring roller, transfer steel roller, transfer rubber roller, coating steel roller, coating rubber roller.
Lamination machine optional function: Strip window; Shaped window; Composite black and white film; Applications

Efficient solvent-free laminating machines are widely used in the manufacturing industry of soft packaging, such as ice bag , rice bag, kraft paper food bag ,vacuum bag, pet food bag, etc..

Laminating substrates	Thickness of substrates		Coating substrates	Thickness of substrates
BOPP	12-80μm		BOPP	12-80μm
PETP	8-30μm		PETP	10-30μm
LDPE,LLDPE	20-200μm		LDPE,LLDPE	30-200μm
OPA	12-18μm		OPA	12-18μm
NYLON CAST	20-80μm		NYLON CAST	30-80μm
ALU(Foil)	6.3-40μm		PP CAST	60-150μm
PP CAST	20-150μm		PAPER	40-150gsm
COEX FILM	20-200μm
PAPER	40-150gsm

The above data is for reference only. The material thickness can be changed according to the increase in power of the solvent-free lamination machine. workshop
Packaging & Shipping As long as customers have a demand, factory workers pack machines until late at night. The equipment on the car is a 400C multifunctional solvent-free lamination machine, which is preparing to be shipped to Vietnam. After Sales Service Our service commitments
Before-sale service
1) 24hours online free consultation of equipment
2) Provide the standard device and the flow chart
3)Customize tailored solution as per client's demand and requiremer
4) Welcome to visit our factory at anytime
Service during sales:
1) Qualified raw material and components guranteed
2)Keep clients updated with the production process
3)Strict quality control during production and inspection before delivery
After-sale service:
1) Shipping following up until goods arrives at destination safely
2) Instant overseas technical support and operation guidance
3)Provide the tutorial videos for install and machining
4) Quick delivery for spare parts replacemen Exhibition show Beide Meike participated in the 2023 China Rubber and Plastic Exhibition ("Chinplas") in Guangdong, where we showcased our 500b high-speed and efficient solvent-free laminating machine. And we have established good connections with customers and distributors from various countries.
Company Profile
Jiangxi Beide Meike Technology Machine Co., Ltd is a production-oriented enterprise specializing in the development and production of flexible packaging machinery. Our company has manufactured the only high-efficiency, high-performance, and multi-purpose solvent-less lamination equipment in the world with built-in Mixer, focusing on various demands in Solvent-less lamination Field of flexible packaging. So far, the market share of the product has grown at an annual growth rate of 50%, the market covers packaging agglomeration areas both at home and abroad. Through unremitting efforts and innovation, our company has developed a new type of solvent-less lamination equipment with high-speed, multifunctional, Multi-layer. After initial market launch and customer feedback, it has been highly praised in the industry for its high cost-effectiveness and functionality. We warmly welcome domestic and foreign customers to visit our company for inspection and conduct technical exchange!
Why choose us? As a leading manufacturer of Solventless lamination Machines, we are committed to providing our customers with reliable, cost-effective solutions. In the face of more fierce market competition, in order to win more seats in the market and further occupy the overseas market, our company constantly enriches the product line and introduces new Label Lamination Machine. Our products are manufactured to the highest standards, and we are proud to be both a supplier and a manufacturer. If you are interested in our Label Lamination Machine, please feel free to contact us, and we look forward to creating a future with you. Our state-of-the-art production facility is equipped with the latest technology to ensure our products meet the highest standards. We use new technologies and new materials to create brand new products, while optimizing our old products. We are a trusted supplier of Solventless lamination Machines to businesses both large and small across various industries. We focus on cooperation with international teams to rapidly accumulate experience and enhance our strength. Our Solventless Composite Machines are built to deliver exceptional performance and reliability, maximizing uptime and reducing maintenance costs. Our company adheres to the corporate culture and business philosophy of 'honesty and trustworthiness, the pursuit of excellence' to realize the steady development of the company and mutual benefit and win-win with customers.
