Dt2 Exclusive Technology Bucket Conveyors Grain Elevator System

Product Description

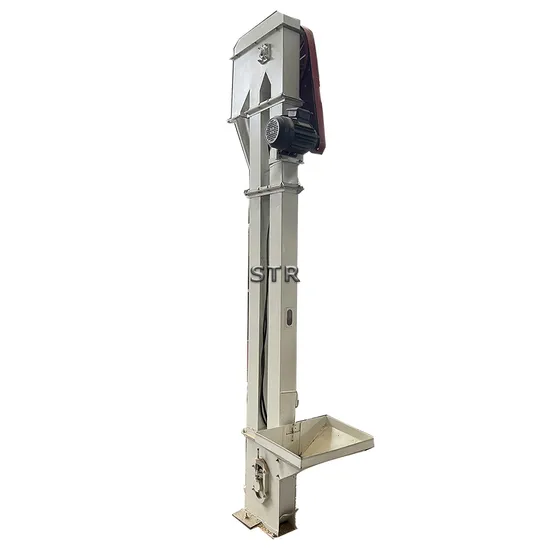

DT-2 Exclusive Technology bucket conveyors grain elevator system
Product Description
Product Usage
DT series middle speed bucket elevator is widely used for vertically lifting granular material (density is not more than 2 t/m3) in grain storage, rice mill, flour mill, fodder processing factory. The machine is featured with small volume, high capacity, power saving and stable operation. It's mainly used for paddy lifting in rice mill plant.
Product Features
1.Small installation space,large capacity, high lifting height
2. Total enclosed structure with good sealing,no dust leak out.
3. Materials are fed into the bucket evenly ;
4. The height of elevator is customized according to real condition;
5. The bucket tension can be adjusted easily;
6. Less back-flow.
Working principle
The driving device drives the pulley to make the belt with plastic buckets do circular movement from head to tail.There is feeding inlet at tail and discharging outlet at head.Thus materials are fed from the bottom and discharged from the top.
The bucket filled with material goes to the head section, then the material is thrown out from the outlet under the action of centrifugal force.The empty bucket goes back to the tail section and filled with material at the inlet again,then lifted up to head section and do parabolic discharge movement for discharging. The cycle realizes the vertical transportation of materials.
Main Technical Parameters

Type	Capacity (t/h)	Power (Kw)	Notes	Weight(kg)
DT4	3.5~4.5 (t/h)	0.75	Plastic Bucket	230
DT6	5~6 (t/h)	1.1	Plastic Bucket	260
DT8	7~8 (t/h)	2.2	Plastic Bucket	350
DT15	12~16 (t/h)	3	Plastic Bucket

Detailed Photos

Packaging & Shipping
1,Standard export package or according to clients' requirement;
2,We cooperate with MAERSK,MSC,CMA,COSCO,and other big shipping company with long term cooperation contract,to ensure the safety of machines,to ensure the in time delivery... Company Profile
Built in 1937,as the first manufacturer of rice mill machine in China,Rizhao Stream(STR) mainly produces Grain Cleaner,Rice Mill,Rice Huller,Rice Grader,Rice Polisher,Rice Packing Machine,Grain Dryer,Grain Silo,Rice Parboiling Machine,Bucket Elevator, Crusher Machine...
STR is experienced in complete set of fully automatic rice milling equipment with daily output of 20-600 tons, wheat flour plant 5-500 tons per day, maize flour plant 5-500 tons per day.
Rizhao Stream(STR) is 'Famous brand of china machinery industry' and 'Shandong famous brand',with a more perfect quality management system.Our company won 'two grade national enterprise' honor in 1989; Won 'Shandong Quality Management Award' in 1991; Passed ISO9000 in 1997; Passed 'CCC 'in 2006; Recently,won 'Top ten industrial enterprises all the region ' 'Top ten integrity taxpayers of RIZHAO City ', and so on.
Certifications
Contact Information


Our Advantages
1, Relatively cheaper price in grain processing field
2, High quality steel as raw material which is thicker
3, With more than 80 years experience in grain machine,our engineers are professional in design
4 , Unique design for your rice/maize/wheat milling plant
5, Good after sale service.We will answer you in 2 hours and offer solution in one day
6, Better service for spare parts
FAQ
Q1:Who are you?
A1:We are leading manufacturer of rice/maize/wheat milling machine.
First built in 1937 as government enterprise.
Q2:What can you do for us?
A2:We can supply higher quality machines and instruct the installation & training.Service is life long. Q3:Why would I buy from your factory?
A3:Using thicker steel,high quality spare parts,our machines can work for 10 years at least. Q4:How do you ensure the quality of your machines?
A4:Most of our QC workers have more than 20 years experience.
All machines are tested before leaving factory. Q5:What is your leading time and delivering time?
A5:Normally it is 25 working days.
For big project,it is about 2 months.For small machines,in 3~7 days.
We will confirm the exact delivering date when contract. Q6:What size of workshop we should build?How many land do we need?
A6:Once you confirm the machine model,our engineers will design the layout for you accordingly. Q7:What is your warranty?
A7:It is at least 12 months or longer.
