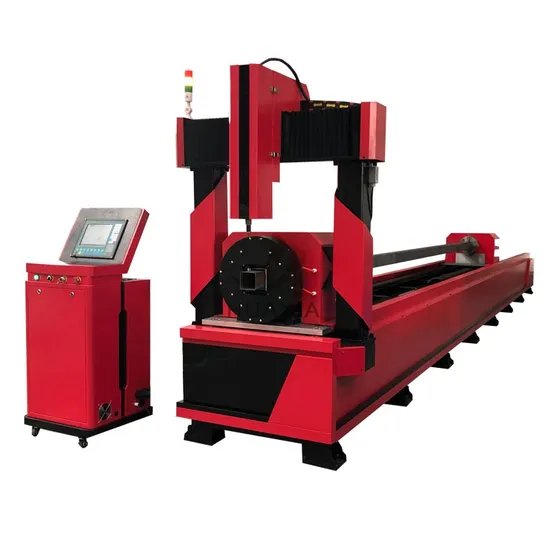

2022 Jinan Round Pipe Plasma Cutting Machine CNC Metal Steel Square Rectangle Tube
| US$5,600.00-16,000.00 | 1 set (MOQ) |
Basic Info.
Model NO.
HXP-6000
Customized
Customized
Layout
Horizontal
Cutting Material
Copper, Carbon Steel, Iron, Aluminum, Metal Alloy, Stainless Steel
Automatic Grade
Automatic
Power Source
Electric
Cutting Mode
Plasma Cutting
Power Supply
USA Hypertherm/China Huayuan Power Source
Control System
Starfire/Flmc-F2300A
Nesting Software
Fastcam
Design Software
Auto CAD,Caxa
Gross Power
8.5kw
Transmission
Anti-Friction Gear-Wheel
File Transfer Mode
USB Interface
Cutting Diameter
Regarding Your Demands
Cutting Thickness
Regarding Power Supply
Cutting Length
Customized
Transport Package
Plywood Case After Packed by Wrapping Film
Specification
HX3000
Trademark
HuaXia
Origin
China
HS Code
8456401000
Production Capacity
200 Sets/Month
Product Description
Square pipe plasma cutting machine** Technical Parameters of Plasma cutting machine
| 1 | Cutting graphics | All kinds of plane figure |
| 2 | Cutting speed | 0-4000mm/min |
| 3 | Round tube speed | 0-4000mm/min |
| 4 | Cutting method | Plasma /flame |
| 5 | Cutting area | X:1500mm,Y:2500mm/3000mm |
| 6 | Cutting thickness | Flame :6-200mm, Plasma :1.5-20mm (according to the plasma power supply) |
| 7 | Thickness of circular tube | Flame :6-80mm,plasma1-20mm (according to the plasma power supply) |
| 8 | Max tube diameter | 0-250mm(can be customized ) |
| 9 | Cutting length | According to different machine size |
| 10 | cutting precision | ±0.5mm |
| 11 | NC programming | Support AUTOCAD/TYPE3/CAXA/SOLIDWORKS.. |
| 12 | File transfer | U disk |
| 13 | Power supply voltage | 220V 50HZ /plasma:380V |
| 14 | Work environment temperature | Temperature:-10ºCto +60ºC, Relative humidity:0-95%No condensation |
Plasma power supply
China HUAYUAN Power Source USA Hypertherm Power source
| HUAYUAN LGK:(A) | 63 | 100 | 120 | 160 | 200 | 300 |
| Cutting Thickness:(mm) | 8 | 15 | 20 | 30 | 35 | 40 |
| Hypertherm:(A) | 45 | 65 | 85 | 105 | 125 | 200 |
| Cutting Thickness:(mm) | 8 | 10 | 20 | 18 | 25 | 30 |
Samples
Packing
FAQ
Q1: I know nothing about this machine, what type of machine should I choose?
We will help you choose the suitable machine and share you the solution; you can share us what material will you cut, the material thickness and working size.
Q2: When I got this machine, but I don't know how to use it. What should I do?
We will send English manual and Operation Video and for the machine. Our engineer will do training online. If needed, we can send our engineer to your site for training or you can send the operator to our factory for training.
