Onvif CCTV DVR 4CH 8channel CCTV Hybrid Recorder H. 264 1080n 5in1 Xvr for Ahd Camera Analog IP Tvi Cvi Camera NVR Support Audio
| Negotiable | 10 Pieces (MOQ) |
Basic Info.
Model NO.
SE-5304XVR
Compressed Format
H.265
Operating System
Linux
Application
Commercial DVR
Interface Type
BNC/VGA/HDIM
Video Input/Output
4/8/16/32 Channel DVR, 4CH BNC Input
Audio Input/Output
4 Channel
Remote Control
Without Remote Control
Video File Logging Mode
Alarm Recording, Motion Detection Recording, Video Manual, Time Lapse Video
Audio
1CH Input, 1CH Output
Hard Disk Size
up to 8tb Each
HDD Supported
1X HDD
BNC Camera Input
4CH 5MP Analog Input
Interface
1CH HDMI, 1CH VGA, 2X USB
Compression
H.265, H.264
HDMI Resolution
1920X 1080
OEM, ODM
Yes, Support Software and Hardware Customised
Customized Logo
MOQ 50PCS
Transport Package
Paper Carton
Specification
300(L)*209(W )*48.5(H )
Trademark
SECUMATE, OEM, ODM
Origin
Shenzhen, China
HS Code
8521909090
Production Capacity
20000 Pieces/Year
Product Description

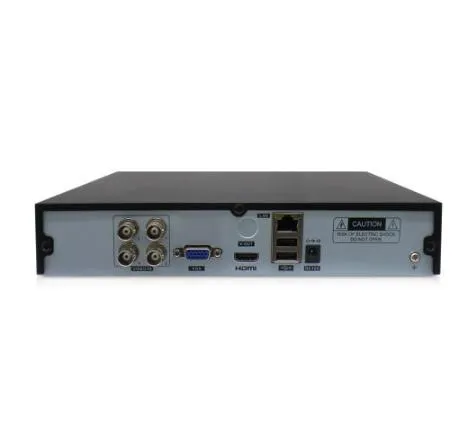

4 Channel 5MP H.265 HD Hybrid AHD TVI CVI CVBS DVRMODEL: SE-5304XVR Support 4ch 5MP-N AHD/TVI/CVI/CVBS BNC video input
4ch playback
HDMI/VGA simultaneous video output up to 1080P
Support 1x SATA HDDs, up to 8TB each, 2x USB 2.0
1 Channel Audio input, 1 Channel Audio output
Multiple network monitoring: WEB browser, VMS, Smart Phone(Fseye)
| Model | SE-5304XVR | |
| Video Compression | H.265, H.264 | |
| Video System | NTSC/PAL | |
| Operation System | Linux(Embedded) | |
| Analog video-input | 4ch BNC | |
| IP Video Input | 2ch,(only IP up to 4ch) | |
| Composite Video Input | Up to 6ch (Analog video + IP video) | |
| Video Output | HDMI/VGA Output | |
| Audio input /output | / | |
| Display | Resolution | 5MP-/4MP-N/3MP/1080P/720P/960H |
| Feature | 1/4/6/8/9 | |
| Record | Resolution | 5MP-N/4MP-N/3MP/1080P/720P/960H |
| Speed | 4x5MP-N@20fps; 4x4MP-N/4x 1080P/720P@25fps | |
| IP: PAL: 25fps(each ch), NTSC: 30fps(each ch) | ||
| IP-Recording Bandwidth | 16Mbps ~48Mbps( default is 16Mbps, decrease one Analog channel can increase 8Mbps ) | |
| Maximum output Brandwidth | 48Mbps | |
| Maximum decode performance | 4x5MP-N@20fps; 4x4MP-N/4x 1080P/720P@25fps | |
| Recording Mode | Continuous/Manual/Motion detect | |
| Synchronous Playback | 4CH | |
| HDD interface | 1SATA HDD, up to 8TB | |
| Multiplex Operation | live display, record, playback, backup and network | |
| USB | 1xUSB3.0 1*USB2.0(for mouse and backup/upgrade) | |
| Sensor & Alarm I/O | NO | |
| PTZ Control | / | |
| Mobile Surveillance | Support Mobile Phones based on IOS and Android operation system | |
| VGA/HDMI | 1280*1024,1920*1080, 1680*1050, 1920*1080 | |
| Power Supply | DC 12V/2A | |
| Dimension(WxDxH) | 300X227X53mm | |
| Working Temperature | -10°C~+55°C | |
| Working Humidity | 10%~90% | |
