Vertical Automatic Packing Machine for Biscuit/Candy Volumetric Packing Machine/Quad Seal Bag Packing Machine

Product Description

MG-720A VERTICAL AUTOMATIC PACKING MACHINE
Technical Characteristics:
1.PLC control with stable, reliable biaxial high accuracy output and color touch screen, bag-making, measuring, filling, date printing, cutting and sealing in one operation.
2. Box-packaging bag is more elegant.
3. Servo motors driven, high precision orientation, size more nicety;
4. External film releasing mechanism: simpler and easier installation of packing film;
5. The process of vertical sealing can adjust the volume deviation automatically;
6. Stand bag with burns edges, 4 sides seal edges;
Application:
It is suitable for packing granule or powder products such as peanuts, rice, milk powder, flour, sugar etc. Max volume 2000ml.
Technical Parameters:

(Type)	MG-720A
(Bag length)	100-420mm(L)
(Bag width)	80-240mm(W)
(Max width of roll film)	700mm
(Packing speed)	5-40bags/min
(Measuring range)	150-1200ml
(Air consumption)	0.65mpa
(Gas consumption)	0.3m³/min
(Power voltage)	220V
(Power )	2.2KW
(Dimension)	(L)1520mm×(W)1050mm×(H)1560mm
(wight of machine)	740Kg

MJW-A10 MULTIHEAD WEIGHTER
Technical characteristics:
1. Select the best combination immediately from diversified weight combination through computer with perfect combination of high precision and high speed.
2. High precision data-type weighing sensor realizes precise weighing.
3. Liquid crystal screen operating system in multiple languages such as Chinese and English ,etc.
4. IP65 grade water-proof and dust-proof design . It's clear and sanitary with all stainless still parts. Full sealed design prevents accumulation of material and facilitates cleaning.
5. It can fine the opening and closing speed of hopper door according to the feather of items to be weighed , and prevent crushing and blocking of material .
6. With powerful digital automatic counting function . It can record the index for each batch such as total bag number , pass rate and difference of single bag , etc.
7. Optional devices: suction hopper ,printing device ,tolerance sorting device .
SGM-375 Z Shape elevator Elevator
SGM-130 Finished Product Conveyor
Technical parameters:

Model	MG-130	MG-375
Convey height	800mm	3100mm
Power	40W	750W
Convey measure	50-300mm/s	4T/H
Dimension	1300(L)×430(W)×890(H)mm	3000(L)×650(W)×3750(H)mm

Configurations (electronic components) list:

No.	Item	Brand/Origin
1	Touch Screen	Delta/Taiwan
2	PLC	Delta/Taiwan
3	Servo Motor	Delta/Taiwan
5	Horizontal Cylinder ( Cross Sealing Jaws)	Pneulead/Italy
6	Vertical Cylinder (Vertical Sealing Bars)	Pneulead/Italy
7	Cutting Cylinder	Pneulead/Italy
8	Coding Printer Cylinder	Pneulead/Italy
9	Film Transport Cylinder	Pneulead/Italy
10	Pressure Regulator	Pneulead/Italy
11	Solenoid Valve	Pneulead/Italy
12	Pneumatic FRL	Pneulead/Italy
5	Solenoid Valve	Pneulead/Italy
6	Photocell Sensor	Autonics/Korea
7	Mains Switch	Delta/Taiwan
8	Solid-State Relay	Fotek/ Taiwan
9	Intermediate Relay	IDEC/ Japan
10	Temperature Controller	YaTai/ Shanghai
11	Proximity Switch	LEK/Guangzhou
12	Button	Schneider/Germany
14	Frequency Converter	Delta/Taiwan
15	Terminal Block	Weidmuller/ Germany
16	Leakage Protection Switch	Delixi/China

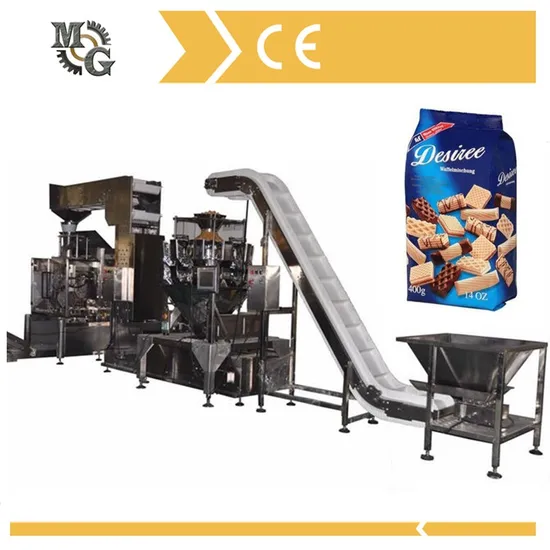

Machine Picture:
Our Service:
1, Warranty Time: One year, within this period if spare parts damage except the wrong operation , seller supply spare parts for free.We can send technician overseas for debugging machine, buyer should be responsible for necessary minimum fee like:lodging and air ticket .

2, Commissioning Services: During the time of installation and debugging, our engineers will not leave, until you are satisfied with the machine.

3, Training Services: Our engineer will train your staff installation and commissioning, operation during this period if necessary.And they will not be leave until your staff can operate properly.

4, Maintenance Services: As soon as we receive your inquiry about fault, we will reply you within 24 hours.
5,Lifelong After Sales Services: We provide lifelong services for all the products we sold out, and supply the spare parts.
6,Inspection Services:Accept the third party inspection company or inspectors check the products before shipment.

7,File Services: we can supply Manual Specification,Operate Video and other files you need.
FAQ:
Q1: How to find a packing machine suitable for my product?
Tell us about your product details and packing requirements.
1. What kind of product would you like to pack?
2. The product size of you need for the product packing.
3. The weight of each pack you need.
4. Your requirement for the machines and the product shape.
Q2: Is engineer available to serve oversea?
Yes, but the travel fee is responsible by you.
In order to save your cost, we will send you a video of full details machine installation and assist you till the end.
Q3. How can we make sure about the machine quality after placing the order?
The pictures and videos for you to check the machine quality are available to you before delivery.
And also you can arrange for quality checking by yourself or by your contacts in China.
