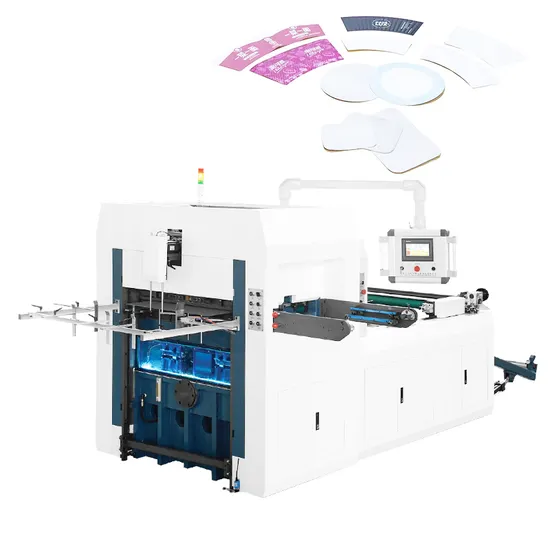

High Pressure Paper Mould Die Cutting Machine Supplier
Basic Info.
Model NO.
YG850
Species
Die Cutting and Creasing Machine
Imprinting Type
Platen
Placing Form of Template
Horizontal
Die Cutting Tool
Metal Mold
Computerized
Computerized
Automatic Grade
Automatic
Application
Paper Packaging Materials, Stickers Products, Heat Insulation Material, Insulating Materials, Dust-proof Material
Product Type
Paper Die Cutting Machine
Processing Type
Printing and Cutting Machine
Name
Creasing Die Cutting Machine Automatic Paper Die C
Keyword
Paper Cup Printing and Die Cutting Machine
Function
Reel Paper Die Cutting Machine
Core Components
PLC
Weight
5500 Kg
Voltage
220V/380V 50Hz
Power
11.5kw
Ength of Guide Roll Surface
950 mm
Paper Material
125~400 GSM Roll Paper
Diameter of Paper Roll
Less Than or Equal to 1.6m
Cutting Speed
90~140 Times/Min
Cutting Style
Punching Style (for Roll Paper)
After Sales Service
Video Technical Support, Field Installation
Transport Package
Wood Packing
Specification
1750*1350*1850 mm
Trademark
Yugong
Origin
China
HS Code
8607990000
Product Description
Product Description Hot Sale High Speed Paper Box Cup Bowl Die Cutting Machine With Embossing PunchingAutomatic Punching and die cutting machine is the best choice for die cutting paper from roll to paper blanks, it can die cut for printed paper roll by following color marks and white paper by setting cutting length.
This punching and die cutting machine adopts micro-computer to regulate the speed,servo motor to feed paper and use the photo sensor to cut and collect blanks at a high speed.
It can die cutting by setting certain length or following color marks.Compared with the traditional Hydraulic machine,it is much more efficient,time-saving,material-saving,and much more profitable.
Product Parameters
| Paper request | 100-500g/m2 (art paper, offset paper, pe paper ) |
| Voltage supply | 380V or customized |
| Cup size | 3-32oz |
| Speed | 170-230times/min |
| Roll diameter | 1400mm |
| Roll width | 860mm |
| General power | 8.5kw |
| Weight | 2200kgs |
| Packing weight | 2300kgs |
| Measurement | 3100*1400*1800mm |
| Packing size | 2900*1600*1850mm |
| Electric box weight and size | 150kgs 630*500*1000mm |
Packaging & Shipping
Company Profile
FAQ 1.Q:Are you trading company or manufacturer?A:We are original equipment manufacturer.2.Q:How long is your delivery time?A:It is according to the model and quantity.Generally it is 3-5 days if the product are in stock.It will be 15-30 days if you want to customize the product.3.Q:Do you provide samples? ls it free or extra?A:Yes,we could offer you the sample.But it's not free. You need to pay for the sample and the cost of freight.
4.Q:What is your terms of payment?A:We accept T/T,Westerm Union,Money Gram,Paypal,etc.
