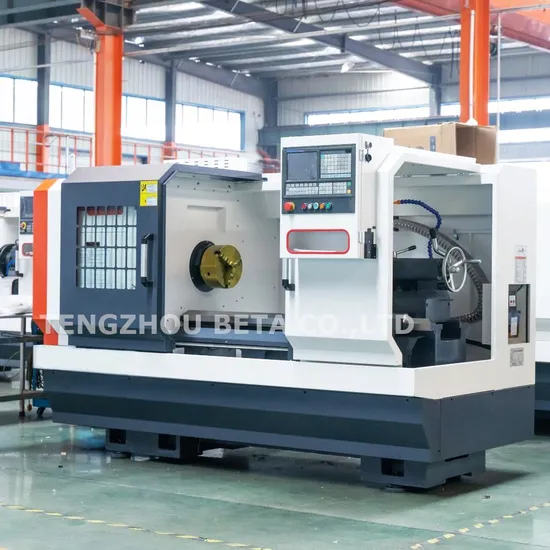

China New Metal 1000mm Screw Cutting Flat Bed Horizontal Turning CNC Lathe Ck6150
Basic Info.
Model NO.
CK6150
Type
Horizontal Lathe
Processing Accessory
Chuck CNC Lathe
Guide Rail
Horizontal Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
CNC
Automatic Grade
Automatic
Setting Mode
Floor-type
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Name
China New Metal 1000mm Screw Cutting Flat Bed Hori
Model
Ck6150
CNC Controller
GSK/Siemens/Fanuc CNC Controller
Max.Swing Over Bed
500mm
Max. Turning Length
1000mm
Spindle Bore Diameter
82mm
Chuck
Manual Chuck
Tool Turret
Electrical Turret 4-Station
Delivery Time
1 Month
Warranty Time
12 Months
Guideway
Horizontal Hardened Guideway
Tailstock
with Manual Tailstock
Hydraulic Chuck
Optional Choice
Voltage
380V
Color
Customized
Transport Package
Wooden Case
Specification
1000MM
Trademark
BETA
Origin
Shandong, China
HS Code
8458110090
Production Capacity
100 Sets Per Month
Packaging & Delivery
Package Size
400.00cm * 200.00cm * 200.00cm
Package Gross Weight
3500.000kg
Product Description
Standard accessories:
Flat bed structure, hardened guideway,
width of guide 400mm, Max.swing over bed 500mm,
Spindle bore diameter 82mm(130mm is optional),
Distance between points 1000/1500/2000mm,
Spindle motor power 7.5kw,
Spindle frequency converter speed adjustment,
CNC controller GSK
10 inch manual 3-jaw chuck ,
4-way electric toolpost,
manual tailstock,
automatic coolant system and lubrication system,
work light, tools & Tool box, English operate manual
Optional accessories:
Siemens/Fanuc CNC controller,
Hydraulic chuck,
Hydraulic tailstock,
6/8-station turret,
| Model | CK6150 |
| Max. swing over bed | Φ500 mm |
| Max. swing over cross slide | Φ250 mm |
| Spindle bore | Φ82mm (130mm optional) |
| Spindle nose | A2-8 (A2-11 optional) |
| Spindle speed | 1800 rpm |
| Spindle motor power | 7.5 kw |
| X/Z axis travel | 300mm, 1500 mm |
| X/Z axis torque | 7.5/10 N.m |
| X/Z axis rapid feeding speed | 8/10 m/min |
| X/Z axis position accuracy | 0.005 mm |
| X/Z axis repeatability | 0.005 mm |
| Tool bar section | 25*25 mm |
| Tailstock sleeve dia. | Φ75 mm |
| Tailstock sleeve travel | 200 mm |
| Tailstock taper | MT5 |
| N.W. | 3000 kg |
| Machine dimension | 3150*1700*1820mm |
