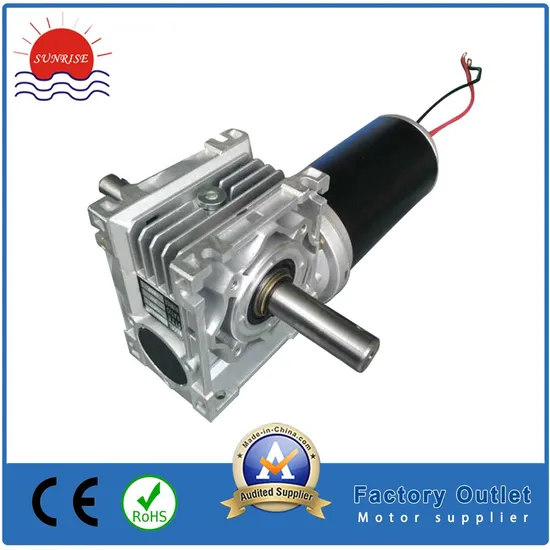

80ZYT165-2438-RV040-63B14 Gear Brushless Motor Electric Brush Brushed Permanent DC PMDC Motor for Reducer Motion Simulator 80mm 24V 3000rpm 400W

Product Description

80ZYT165-2420-30RV25 Permanent Magnet DC PMDC Brushed Motor
Product Description
In a Permanent Magnet DC (PMDC) motor, permanent magnets located in the stator provide the magnetic field, instead of it being created in stator windings. PMDC motors are generally smaller but still offer an impressive output performance, making them an excellent choice for use in mobility, patient care, industrial and leisure products.
What is a PMDC motor?
In PMDC motors (Permanent Magnet Direct Current), permanent magnets located in the stator provide the magnetic field, instead of it being created in stator windings.
Advantages of PMDC motors
Cost-effective and with a high starting torque, PMDC motors are generally smaller but still offer an impressive output performance, which makes them a popular choice for use in many applications.
Sunrise manufactures an extensive range of PMDC motors trusted by global manufacturers for more than 30 years. They are most often combined with one of our gearboxes to reduce speed and increase torque for the ultimate geared motor solution. Our PMDC motors are suitable for a wide range of applications in different industries such as mobility, patient care, industrial automation and leisure products.
Custom PMDC geared motors from Sunrise
Sunrise standard permanent magnet DC motor-only products covers the following performance range:
• Speed: 1000 - 5000 RPM • Power: Up to 2030 Watts • Torque: 0.1 - 4.9 Nm
Sunrise standard right-angle and inline PMDC geared motor combinations are available in the following performance ranges:
• Speed: 0.2 - 1390 RPM • Power: 23 - 750 Watts • Torque: 0.1 - 150 Nm
Specifications :

MODEL	80ZYT165-2438-RV040-63B14 REV1
VOLTS	24V
NO-LOAD SPEED	3800±10%RPM
RATED POWER	400W
RATED SPEED	3000±10%RPM
RATED TOROUE	1.27 N.m
RATED CURRENT	22A
TYPE	TENV
DUTY	S1
PROTECTION	IP-44
INS.CLASS	B
DIRECTION	BI-DIRECTIONAL
RATED SPEED	50±10%RPM
RATED TORQUE	57 Nm

Product Parameters

PMDC MOTOR 80ZYT
MODEL	VOLTAGE (VDC)	No load Speed (r/min)	Rated Torque (N.M)	Rated Current (A)	Output Power (W)	Rated Speed (r/min)	Gear Ratio	Duty	Protection
80ZYT165-2420-30RV25	24	2000	1.4	11.5	220	1500	25:01:00	S1	IP44
Special motors can be customized per your requirements

We offer several levels of PMDC motor customization, including shaft variations, output flange options, various cable lengths, brakes, encoders, paint finishes, and terminal boxes.
If you have a particular specification in mind, we recommend a fully customized solution which includes the ability to incorporate other components of your drive system. Our engineering teams have extensive application specific knowledge, enabling us to produce a PMDC motor that is completely tailored to your individual needs. Recommended Products
