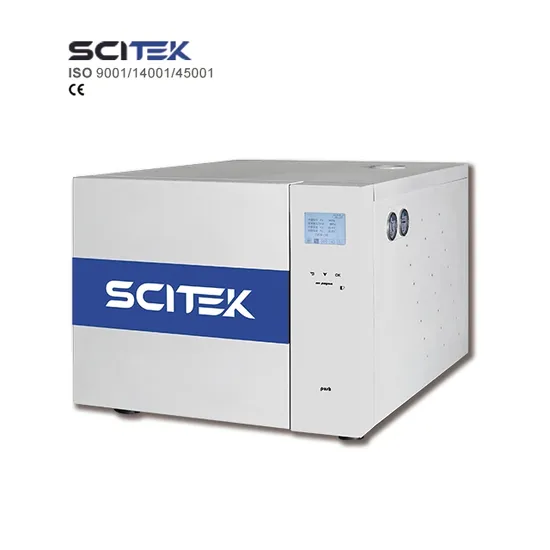

SCITEK Class B 45L Autoclave Medical Sterilization Autoclave for Laboratory

Product Description

Product DescriptionModel Features:
Multi Safety Features
Overheat protection:automatically cutting off heating with audible and visual alarming when the autoclave is overheated.
Interlock safety: preventing from starting a cycle if door is not properly locked or from door opening if the chamber is pressurized.
Anti-burning protection:automatically cutting off heating with audible and visual indication when the autoclave is lack of water.
Steam pressure safety valve: automatically works when the chamber pressure exceeds the limit.
Automatic operation from sterilization to drying (Pre-vacuum sequence, heating, sterilization, steam discharge and post-vacuum drying) can be easily set and monitored by LCD touch screen.
Built-in vacuum pump provides 3-time pulsed vacuum process,extracting the air out of the medical dressing and the A degree hollow medical instrument efficiently.
Built-in steam generator prevents the media from contamination.
Post-vacuum drying function offers efficient drying results.
Positive pulsing function removes the air efficiently.
With 0.22µm air filter, blocks all microorganisms from exiting the chamber during the air removal phase.
Optional printer, real-time record sterilization process, error and alarm information.
Product Parameters

Model	ST-B45B
Capacity	45L
External Size(WxDxH)	870x600x520mm
Chamber Size(ØxH)	Ø316x590mm
Chamber Material	SUS304
Sterilization Temperature	105~136 ºC
Designed Temperature	150ºC
Max.Working Temperature	136 ºC
Temp.Accuracy	0.1ºC
Temp.Uniformity	≤±0.5ºC
Designed Pressure	-0.1/0.3Mpa
Sterilization Pressure	0.23Mpa
Pressure Resoluiton	0.1KPa
Ultimate Vacuum	-0.096MPa
Temp. Controller	PID control by microprocessor
Display	LCD touch screen
Drying Function	YES
Drying Time	15min
Sterilization Program	Medical instrument program Luminal instruments Dressings program Rubber program Liquid program BD Test program Vacuum Test progrm Sterilization of medical dressing, medical Instruments, Instruments with cavity, Rubber, liquids plus 4 user-customized programs BD Test and vacuum test.
Water Injection method	Built-in water tank
Power Consumption	3.6KW
Power Supply	220V 50Hz
Standard Sterilization Shelf	1pcs SS shelf
Optional Accessories	printer
Net Weight	65kg
Gross Weight	120kg
Shipping Size(WxDxH)	1150x700x700mm
