LED City Color Light/LED Wall Washer Light
| US$235.00-320.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
LED 011/011A/011C/011D/011E
IP Rating
IP54
Diffuser
Borosilicate Glass
Beam Angle
6-120degree to Choose
Lifespan
50000 hours
Warranty
2 Years
Certification
CE, EMC, LVD, RoHS, SGS
Electric Current Type
AC
Input Voltage
90-245VAC 50/60Hz
DMX Channel
3CH/6CH,4CH/7CH
Switch Power Supply
Built-in and Auto Switching
Control Panel
Digital 4 Characters Alphanumeric
Connector
3 or 5-Pinxlr (in and out)
Electronic Dimmer
1-100% Linear Dimmer
Electronic Strobe
1-30 Flashes/Second
Cooling
Entire Casing as Heat Sink (No Fans)
Flicker Free
Refresh Rate >1000 Hz
Key Point
Temperature-Protected Easily
Usage
Theatres, Stage , Robust Housing
Transport Package
Carton/Flycase
Specification
77*52*62cm Weight: 28KG
Trademark
MSLighting
Origin
Guangzhou, China
HS Code
94054090
Production Capacity
500PCS/Week

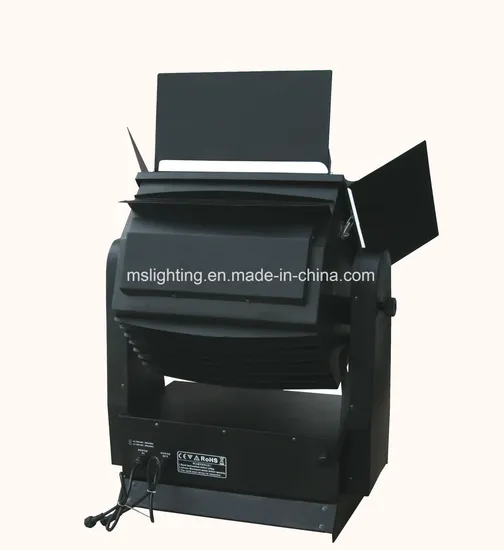

Product Description
This LED light adopts in 120*1W/3W/5W,156*1W/3W RGB/RGBW/RGBA/UV/WA which is the most advanced lamp as light sources. It is new generation green high technology product. It projects long distance, big angle, and abundant colors. It brings people new vision sense, which makes people feel they are in a changeable color world.The nice design is good for dispelling heat very well and long life. Project angle can be adjusted randomly. The base is with holes, which are facility for orientation and fitting.
It is widely used in stage show, casino, advertisement, outside wall of mansion etc. It is controlled by controller with DMX; The effect can be gradual change, jump change, color glitter, random change, and alternate gradual change and so on. Perfect cast light beam provides architecture designers and light designers abundant imagine space.
| Model | LED 011 (120*1W) RGBW/A | LED 011A (120*3W) RGBW/A | LED 011C (156*1W) RGBW/A | LED 011D (156*3W) RGBW/A | LED 011E (120*5W) RGBW/A | |
| Housing Material | Aluminum | Aluminum | Aluminum | Aluminum | Aluminum | |
| Housing Color | Black | Black | Black | Black | Black | |
| Aperture Cover | PMMA | PMMA | PMMA | PMMA | PMMA | |
| Operating voltage | 90-130V AC / 176-254V AC | 90-130V AC / 176-254V AC | 90-130V AC / 176-254V AC | 90-130V AC / 176-254V AC | 90-130V AC / 176-254V AC | |
| Power | Switch Power Supply | Switch Power Supply | Switch Power Supply | Switch Power Supply | Switch Power Supply | |
| LED current | 320mA | 680mA | 320mA | 680mA | 1.4A | |
| Control Modes | Direct DMX 512, Master/slave. Stand alone. Sound Activity, Sound activity synchronization | |||||
| DMX Channel | 7CH/4CH | 7CH/4CH | 7CH/4CH | 7CH/4CH | 7CH/4CH | |
| Control panel | Digital 4 characters alphanumeric | Digital 4 characters alphanumeric | Digital 4 characters alphanumeric | Digital 4 characters alphanumeric | Digital 4 characters alphanumeric | |
| Connector | 3-PinXLR (In and Out) | 3-PinXLR (In and Out) | 3-PinXLR (In and Out) | 3-PinXLR (In and Out) | 3-PinXLR (In and Out) | |
| NO.of LED | 120*1W LEDS (24R/ 32B/ 32G/ 32W) | 120*3W LEDS (24R/ 32B/ 32G/ 32W) | 156*1W LEDS (39R/ 39B/ 39G/ 39W) | 156*3W LEDS (39R/ 39B/ 39G/ 39W) | 120*5W LEDS (30R/ 30B/ 3G/ 30W) | |
| LED Life Time | 80000-100,000 hours | 80000-100,000 hours | 80000-100,000 hours | 80000-100,000 hours | 80000-100,000 hours | |
| Beam Angle | 25°/30°/45°/60° | 25°/30°/45°/60° | 25°/30°/45°/60° | 25°/30°/45°/60° | 25°/30°/45°/60° | |
| Power Consumption | 160W | 420W | 210W | 520W | 520W | |
| Light Projecting Distance | 20-100M | 20-200M | 20-120M | 20-250M | 20-400M | |
| IP Rating | Outdoor, Waterproof, IP 54 | |||||
| Operating Temperature | 20ºC-+45ºC | |||||
| Size | 770*520*620mm | |||||
| Weight | 28KG | |||||
| Compatibility: | ||||||
| 1. Color Range: 16.7 million additive RGBW colors; continuously variable intensity (256×256×256=16777216) | ||||||
| 2. Dimming 0-100%with regulated constant color control | ||||||
| 3.Strobe: 10 Flashed per second (any color) | ||||||
| 4. Function: it is max mix color, color change, color's gradual change, flash, speed/luminance the adjustable, and save function | ||||||
| 5. 7channel Mode and 4channel Mode would change each other in every light | ||||||
| 6. 7CH Mode DMX Value | CH 1_ General dimmer (1-255, from dart to light) | |||||
| CH 2_ Red (1-255, Dimmer, from dart to light) | ||||||
| CH 3_ Green (1-255, Dimmer, from dart to light) | ||||||
| CH 4_ Blue (1-255, Dimmer, from dart to light) | ||||||
| CH 5_ White (1-255, Dimmer, from dart to light) | ||||||
| CH 6_ Strobe & Color change/ color gradual change open | ||||||
| CH 7_ Strobe & Color change& color gradual change's speed adjustment (1-255, Speed adjustment, from slow to fast) | ||||||
| 7. 4CH Mode DMX Value | CH 1_ Red (1-255, Dimmer, from dart to light) | |||||
| CH 2_ Green (1-255, Dimmer, from dart to light) | ||||||
| CH 3_ Blue (1-255, Dimmer, from dart to light) | ||||||
| CH 4_ White (1-255, Dimmer, from dart to light) | ||||||
| 8. Control modes | 0. Sound activity mode | |||||
| 1. DMX control mode | ||||||
| 2. Adjusting the color manual | ||||||
| 3. Adjusting the brightness manual | ||||||
| 4. Adjusting the strobe manual | ||||||
| 5. Adjusting the strobe speed manual | ||||||
| 6. Master-slave control mode, as the master | ||||||
| 7. Sound activity synchronization mode | ||||||
| 8.Adjustingcolor's gradual change manual | ||||||
| 9.Adjustinggradual change's speed. | ||||||
