Melt Flow Index Tester For PE Nylon Fluoroplastics And Other Engineering Plastics

Product Description

Product Description

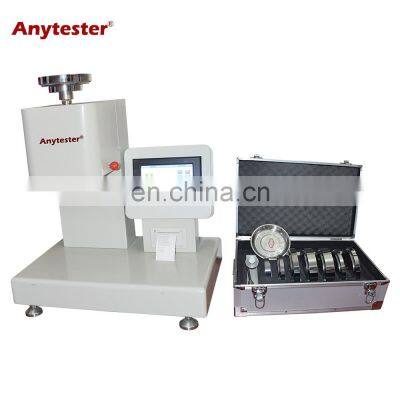

Product DescriptionAT430C Melt Flow Index tester is used to measure the melt flow rate (MFR) of thermoplastic resin in quality control and research applications. It is suitable for PE, nylon, fluoroplastics and other engineering plastics which of higher melt temperature, and also suitable for PE, PP, ABS resin and other plastics which of lower melt temperature. Specification Model AT430CTemperature range 120℃~450℃Temperature error ≤±0.2℃Temperature resolution0.1℃Temperature recovery time≤4 minDisplay modeTouch screen operation Test methodMFRTiming accuracy0.1sCutting modeManual & automaticStandard dieTungsten carbide, Φ2.095±0.005mmHeight of standard die8.000±0.020mmInner diameter of feed cylinderΦ9.550±0.025mmDiameter of pistonΦ9.475±0.015mmLength of piston head 6.350±0.100mmPower AC220V, 50Hz, 450wStandardsASTM D1238ISO 1133-1GB/T 3682-2000JB/T 5456__Futures★ Chinese/English operate interface; ★ Simple structure, easy to operate, easy to maintain;★ Color touch screen control;★ Professional software to control temperature automatically, automatically cutting material, real time display test curve, mini-printer to printout test data;★ Can automatically calculate the melt flow rate (MFR) after inputting the mass value;★ Can store recent 40 groups of test data.Packing & DeliveryPackagingPackaging Details1. The equipment is covered with film is protect it from water vapour during the trip. 2. The box is filled with foam to protect the equipment from impact. 3. Exported wooden box made from plywood, don't need fumigated. PaymentPayment TermT/TEXW30% T/T in advance, paid the balance before shipmentFOBCFR(C&F)30% T/T in advance, paid the balance before shipmentCIFL/CL/C amount above 50,000 usd, we can accept L/C at sightWest UnionAmount lower than 5000usdDelivery Time30~40 days after receiving payment for one containerRelated ProductsAT416 Full Notch Creep Tester AT421D Series Digital Charpy Impact TesterAT405 Digital Axial Notch Milling MachineAT400 Torque Rheometer Our CompanyHistorySince 1982 with more than 20 years' experienceWarrantyTwo Year Warranty for whole productTrainingVideo and user manual for trainingOnsite serviceInstallation and training service is availableTesting serviceFree sample testing before order is availableLead time15 working days lead time for most productContacting Us Lily ChengWebsiteMobile Phone+86 180 5517 3820Whatsapp+86 180 5517 3820Skype1933039910@qq.comWechat+86 180 5517 3820
