Automatic Multi-Functional, Roll-to-Roll Screen Printing Machine for FPC RFID

Product Description

Label Automatic Roll to Roll Screen Printing Machine
Machine Description:
User-friendly touch screen control interface in English for maximum operational convenience.
Equipped with two-side dust romoval rollers to ensure dust-free printing in a good quality.
Film material forwarding and printing head stroke is driven by servo motors to ensure high precision.
Three photocell sensors applied for automatic register in multi color printing works.
Quality linear guides are used in the machine to have the printing head move fast and smooth.
Work table with vacuum suction to hold the film firm during printing process, and release it while material forwarding is going on.
Hot air dryer inner length 60M and 80M for option. Heating temperature is adjustable freely.
Automatic roll to roll silk screen printing machine includes a feeder, a screen printing unit and a hot air dryer.
Application: RFID, heat transfer label, labels and stickers, membrane switches, graphic overlay, IMD, IML, FPC, ceramic decals, motorcycle helmet decals, nameplate and non-woven fabrics, etc.
Machine Parameters:

Model			LTA-3040		LTA-5060		LTA-6080
Max. Printing Size			300x400mm		500x600mm		600x800mm
Printing Speed			0~5000 print/hr.		0~2500 print/hr.		0~2500 print/hr.
Max. Screen Frame Size			600x800mm		800x1000mm		900x1200mm
Frame Adjusting Variable			60mm		60mm		60mm
Max. Substrate Width			320mm		520mm		620mm
Registration Accuracy			±0.01mm		±0.01mm		±0.01mm
Air Source			0.4~0.6mpa		0.4~0.6mpa		0.4~0.6mpa
Power			220V, 3KW, 15A		220V, 3KW, 15A		220V, 3KW, 15A
Printing Material Thickness			0.02~0.5mm		0.02~0.5mm		0.02~0.5mm
Weight			600kgs		700kgs		950kgs
Overall Dimensions (L*W*H)			7000x1100x1900mm		8200x1200x2000mm		9000x1350x2200mm

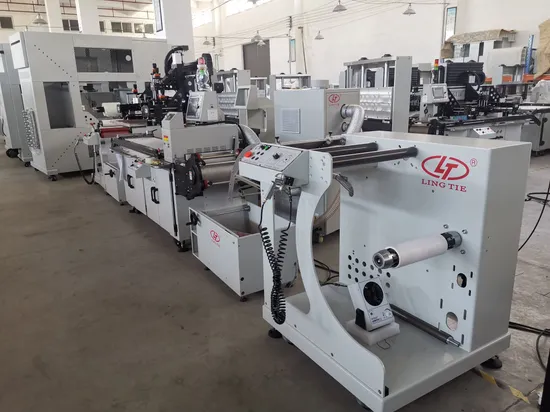

Machine Photos:
Vacuum Table: fix the PET film during printing process. Automatic register system for screen alignment.
Feeder: dust removing, protect film removing, electrostatic eliminating,etc.
Inspection Station: Timely inspection of printing quality to avoid waste.
Rewinding Shaft: After printing, through the tunnel oven drying, automatic rewinding at last.
