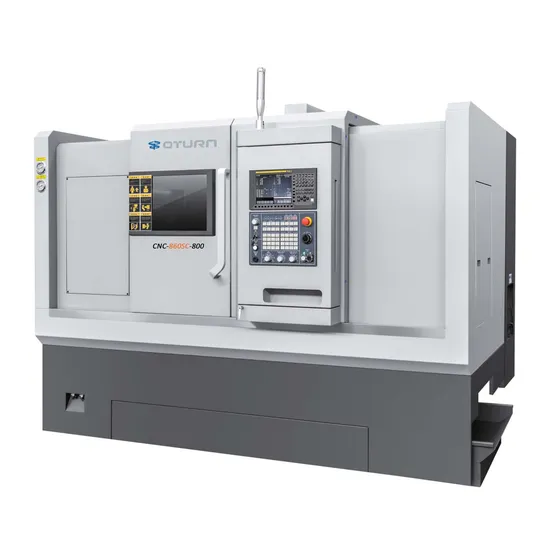

High Quality Double Spindle Turret Slant Bed CNC Lathe Machine 860sc-800 CNC Turning Lathe with High Precision

Product Description

Product Description
High rigidity, heavy cutting, and high stability. It adopts an integral cast inclined bed, a 45° inclined bed structure, and a thick reinforced rib design to minimize distortion and thermal deformation.
4-axis linkage simultaneous machining, dual-spindle dual-turret design, under the control of the multi-axis multi-channel CNC system and post-processing program, can not only complete 4-axis linkage processing, but also realize automatic U-turn processing of parts and simultaneous rough and finish turning , with a series of multi-functions such as two spindle processes that do not interfere with each other.
2 sets of feed axes. The highest configuration of this series has two sets of X, Y, and Z feed axes. Two sets of Y axes are hard-rail orthogonal Y-axis structures, providing the machine tool with sufficient milling capabilities.
Low resonance and high precision. When the equipment is processing in both directions at the same time, the maximum resonance value caused is less than 5%, and its performance is particularly outstanding. The static docking accuracy of the dual spindles can reach 0.005mm, and the synchronous docking accuracy can reach 0.01mm, which can meet most customer needs.
Modularization and flexible matching. In order to meet the needs of the market, the structure also has the characteristics of modular design, which can realize flexible structural matching according to needs.
Opposing dual spindles, the left and right sides can be processed at the same time, greatly shortening the processing time.
The upper and lower turrets are equipped with milling functions (the upper turret is equipped with a Y-axis) and can install up to 48 tools.
It can handle everything from small batches of multiple varieties to large-scale production. All processes can be completed with one clamping. Product Parameters

Item		Specification
Bed	The bed and base are made of high-quality cast iron, and the bed is slanted at 45°.
Processing range	Maximum rotation diameter of bed	780mm
	Maximum processing diameter of discs	650mm
	Maximum processing diameter of the carriage	500mm
	Maximum processing length of ball material	800mm
	Maximum rod hole diameter	Main: Φ75mm / Auxiliary: Φ51mm
Travel Feed	X-axis maximum travel	350mm
	Z1/Z2 axis maximum travel	1050/900mm
	Y-axis maximum travel	±75mm
	Chuck spacing	0-800mm
	X/Z1/Z2/Y axis rapid movement rate	18m/min
	X/Z1/Z2/Y screw diameter/pitch	X:50/80mm,Z:63/12mm
	X/Z1/Z2/Y linear guide width	55mm
	X-axis servo motor	β22(with brake)
	Z1/Z2 axis servo motor	β22/22
	Y-axis servo motor	β12
	Turret servo motor	3N.m
	Power head servo motor	β22
Precision	X/Z1/Y axis positioning accuracy	±0.008mm
	X/Z1/Y axis repeat accuracy	±0.005mm
Spindle	Spindle nose type	Main: A2-8 / Auxiliary: A2-6
	Spindle through hole diameter	Main: Φ88mm / Auxiliary: Φ66mm
	Spindle maximum speed	Main: 2500 rpm / Auxiliary: 4000 rpm
	Spindle servo motor power	Main: 15KW / Auxiliary: 26KW(electric spindle)
	Chuck/rotary cylinder	Main: 10 inches / Auxiliary: 8 inches
Power head	90° power head	ER40 / 3000 rpm
	0° power head	ER40 / 3000 rpm
Turret	Turret specifications	BMT65/12 stations
	Tool holder specifications	25×25
	Boring tool holder	Φ40mm
Other	Total capacitance	56KW
	Machine tool net weight	About 7700Kg
	Machine size (length*width*height)	6000×2300×2550mm
