Finger Joint Line Woodworking Composer
| US$27,500.00-37,700.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
WS18
Condition
New
Certification
ISO, CE
Power Type
Hydraulic
Voltage
380V
Processing Length
2-2.6 Meters (Adjustable)
Processing Width
1.6 Meters (Adjustable)
Processing Thickness
12-40mm
Hydraulic
3
Trimming Saw
2
Cross Cutting Saw
1
Transport Package
Customized
Specification
customized
Trademark
customized
Origin
China
HS Code
846599900
Production Capacity
200 Sets Per Year
Packaging & Delivery
Package Size
1900.00cm * 600.00cm * 200.00cm
Package Gross Weight
1100.000kg
Product Description
Product ParametersAutomatic Finger Joint Plate Splicing Machine
Compact Laminated Board
| MODEL | WS18 | WSZ24 | WS24*3M |
| Total length of equipment | 19 | 24m | 24m |
| Total width of equipment | 6m | 6m | 7m |
| Maximum machining width | 1.6m | 1.6m | 1.6m |
| maximum processing thickness | 35mm | 40mm | 40mm |
| Maximum processing length | 2500mm | 2500mm | 3000mm |
| Power of hydraulic station | 18kw | 20KW | 20kw |
| Cutting edge saw power | 3KW*2 | 3KW*2 | 3KW*2 |
| Power of heating system | 9KW | 18KW | 18kw |
| Intelligent thickness adjustment | YES | YES | YES |
| Material pressing method | Cylinder | Cylinder | Cylinder |
| Thermal insulation system | YES | YES | YES |
| Operator | 1 person | 1 person | 1 person |
| production | 50 sheets/hour | 60 sheets/hour | 60 sheets/hour |
| weight | 1100KG | 1300KG | 1800KG |
| Automatic gluing - automatic extrusion - automatic edge cutting - automatic drying - automatic sawing - automatic elevator - automatic palletizing The equipment only requires one worker to feed the material in front, and the rest of the actions are automatically completed by the equipment. | |||
| Loading rack, gluing machine, machine head, hydraulic station, machine body, edge cutting saw, tail cutting saw, automatic stacking elevator, electric control cabinet | |||

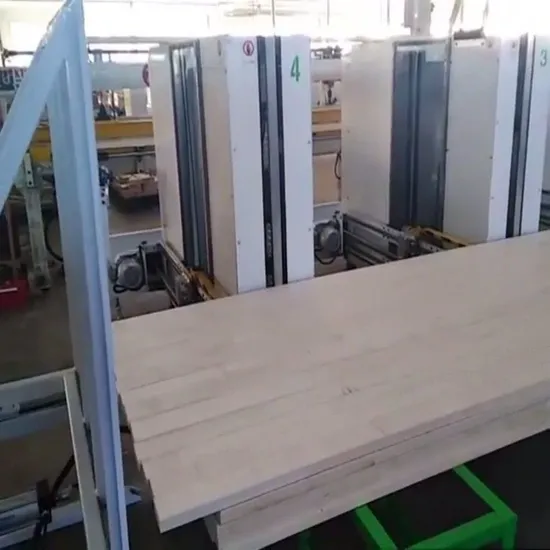

Detailed Photos
Related Machines
Full Auto Finger Joint Shaper Line
| MODEL | WS-600sc |
| Max working width | 600mm |
| Min working thickness | 120mm |
| Max.working length | 800mm |
| Cutter speed | 6000r/min |
| Draw saw speed | 5600r/min |
| Triming saw speed | 5000r/min |
| Tenoner cutter dia. | 160mm |
| Tenoner cut-off saw dia. | 70mm |
| Cutter motor power | 11kw*2 |
| Saw motor power | 7.5kw*2 |
| Feeder motor power | 0.55kw*5 |
| Working air pressure | 0.5-0.8Mpa |
| Net weight | 3600kg |
| Overall | dimensions 5000x5000x1400mm |
| With automatic gluing | YES |
| The material of the glue roller | Precision machined aluminum rollers |
| Automatically Trimming Comb on both ends, Automatically Gluing One worker operate only for loading the wood squares. Servo Motor with fast running speed,smooth and stable movements. | |
Automatic Finger Jointer
| MODEL | WS2500 | WS3000 | WS6000 |
| Processing length | 2500mm | 3000mm | 6000 |
| processing width | 35-150 | 35-150 | 35-150 |
| processing thickness | 15-50mm | 15-50mm | 20-80mm |
| Size of working table | 2600x500mm | 3100*500mm | 6000*500mm |
| saw blade Motor | 2.2kw | 2.2kw | 2.2KW |
| Oil pump motor power | 2.2kw | 2.2kw | 5.5KW |
| Max.thrust for oil pressure | 4000kg | 6000kg | 7000KG |
| Feeding motor power | 0.75kw | 0.75kw | 0.75 kw |
| Production speed | 30m/min | 30m/min | 30m/min |
| Overall dimensions | 4370x1100x1500mm | 4870x1100x1500mm | 7900x1500x1500mm |
| Weight | 1000kg | 1300kg | 2000kg |
| Total power | 5.7kw | 5.7kw | 9kw |
| Only one worker is needed for feeding, automatically squeezes and connects, saws and cuts, and discharges materials at a fast speed. The teeth are intact and without gaps. | |||
Sand planer
| MODEL | WS1300 |
| Motor power | 1#:22kw,2#:37kw,3#:22kw |
| Conveying power | 4kw |
| Elevator power | 0.55kw |
| Processing width | 1300mm |
| Processing thickness | 1-110mm |
| Processing length | >=580mm |
| Belt length | 1330*2200mm |
| Working air pressure | 0.8mpa |
| Conveying speed | 2-25 meters per minute |
| Weight | 4000kg |
| First process planer diameter | 180mm |
| Second sand frame steel roller diameter | 240mm |
| Third sand frame rubber roller diameter | 210mm |
Automatic Timber Stacker
| Model | 6000-4 |
| Finger Joint Board Length | 2000-6000mm |
| Finger Joint Board Width | 30-200mm |
| Finger Joint Board Thickness | 0.8-100mm |
| Portals | 4 |
| Motor power | 14KW |
| Working Air Pressure | 0.6MPA |
| Voltage | 380V |
| Weight | 1500KG |
| Speed | Adjustable |
| Finger Joint Board factory, furniture factory, aluminum profile factory, wood processing plant, wooden factory, floor factory, etc | |
Company Profile
Specialize in research & development, production, sales of Woodworking Machines SINCE 1988
We have serves 11,000 enterprises and our products have been exported to over 60 countries in the world.
Sawmill & Kilns & Pallet & Biomass & Forestry & Recycling
Sincerely welcome worldwide distributors to join us!
