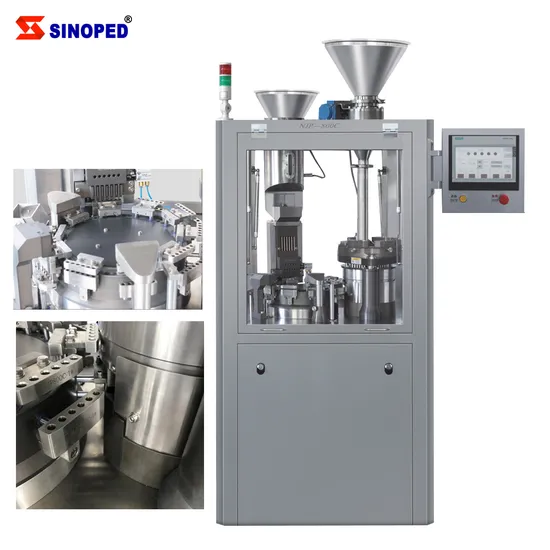

Automatic Capsule Filling Machine Njp-800 Small Automatic Powder Hard Capsule Filling Machine

Product Description

Product DescriptionGood Quality Capsules Filling Hand Machines Capsule Filling Machine with Low Price
The NJP-800 capsule filling machine manufactured by our company has been improved and innovated for several years. Now the third generation of 800 fully automatic capsule filling machine has advanced technology and excellent configuration. It not only has all kinds of performance and technical standards of the same type 800 in China.
1. NJP-800 is a capsule filling equipment widely used in small and medium-sized pharmaceutical factories.2. The equipment adopts eight-station intermittent separator to operate, which has low noise, high precision and stable operation.3. Strong adaptbility to capsules high probliy suitable for fling westerm medicine, Chinese patent medcine, Chinese herbal medicine.4. Fully enclosed modular rotary table. ultra-low work station design and smooth operation, and facilitate mold replacement and cleaning.5. The material fling mechanism adopts the principle of hole plug. and the dose accuracy and volume dfference are better than those stipulated by the natinal pharmacopoeia6. Man-machine satety protection device, with the function of automatic alarm stop fou lack of capsule, medcine and gate control.7. The unique design principle can complete the mbaing and fling derice that adds ifferent drugs in the same capsule8. The equipment is small in sice, high in precision and easy to operate. which is the preferred product for hospitals, scientific research and teaching institutions
Detailed Photos New Powder Hopper
The new hopper adopts butterfly valve-type powder feeding, and is very suitable for drug powder with poor liquidity, including Chinese herbal medicine and Chinese patent drug, due to that its vibration unit equipped will force the powder to run down, which has solved problem of failing to feed in powder that often happens in the traditional screw feeding device because of the poor liquidity of powder.
Capsule Hopper
The loading condition can be seen via the observation holes. When capsules are used up, the machine will sound an alarm and stop automatically. Frame of capsule Separation StationThe newly designed frame of capsule separation station uses transmission of guide rail, enjoying higher precision and longer service life. Its closed design can prevent the defective capsule and dust from entering, ensuring a rapid and orderly capsule separation, as well as accurate capsule orienting. New Turntable
The new rotary table is designed fully enclosed and with concept of modularization. Its super low station designed, equipped with imported Silicone ring, provides a very good anti-dust effect. It can prevent drug powder from entering the rotary table's inner cavity, ensuring maintenance-free and lubrication charging-free for the inside part. It operates with high stability and accuracy, and meets the requirements of two-in-one filling process.Product Parameters
Main Features1. Small in size, light in weight, energy savings, easy to operate and clean.
2. Opening and locking of capsule can be controlled automatically which is safe and convenient.
3. Equipped with inching control system, which makes it easy and convenient for cleaning, loading and unloading of upper and lower dies.
4.Equipped with gate control security system and mechanical failure security system, which provides functions of automatic alarm and shutdown.
5.Automatic alarm and shutdown will be activated when lacks empty capsule or powder.
6.Rich functions designed on the HMI, including counting and displaying functions during the production, and it is able to link with printer, if needed, for printing information including date of production, lot number, quantity, etc.
7. The plane cams are running in the mode of double rails, where the two axes run out separately. It can improve the operation accuracy and meanwhile eliminate the possibility of collision between the lower die and the dosage disc.
8.The high precision cam splitter uses optical dividing head of German Zeiss. The dividing spindle is machined in the CNC all at once, which has ensured accuracy dividing of the turntable and dosage disc while the machine runs fast, thus ensuring the precision of filling. Higher precision of cam splitter also provides the machine longer service life.
9.The operating cams are all processed with 20crmoti carburizing and quenching treatment, and then machined in CNC grinding machine all at once, which has ensured the accuracy and unity of the cams and provided a longer service life.Product Parameters

Model	NJP-800
Filling capacity	48000pcs per hour
Weight	900Kg
Dimension	1060×860×2030mm
Power supply	380/220V 50Hz
Total power	5.7KW
Segment bores	6 holes
Vacuum	40m3/h-0.04-0.08Mpa
Dust collector	24.5Kpa 210m3/h
Air compression	Air consumption 5m3/h Pressure 5-7Kg
Water source	500L/h 0.1-0.2Mpa
Operating noise	<75DB(A)
Filling percentage	Empty capsule 99.9% filled capsule 99.8%
Capsule size	00,0,1,2,3,4,5#
Filling accuracy	Western medicine ±3% Chinese medicine ±4%
Suitable for	Powder, Granule, Pellet, Tablet.
