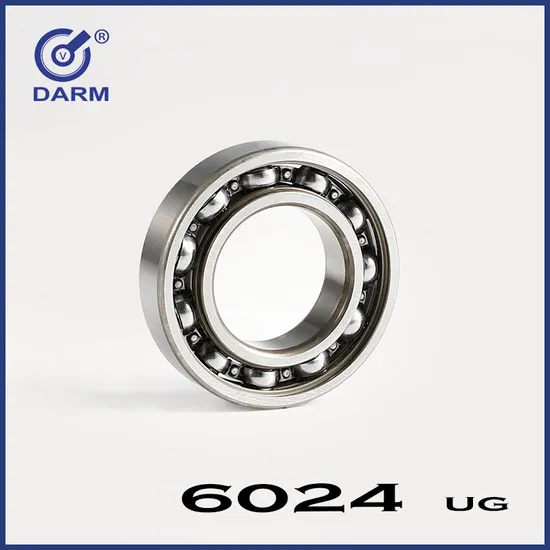

6024 Motor, Power Tool, Water Pump, Air Compressor, 6000 Series Deep Groove Ball Bearing

Product Description

Product Description 6000 series deep groove ball bearings
https://delmarbearing.en.made-in-china.com/product-list-1.html

Bearing NO	( mm)Boundary Dimensions			( Kn)	(Kn)	( r/min ) Limit Rotational Speed		( Kg)Weight
	d	D	B	Dynamic Load Rating Cr	Static Load Rating Cor	Grease Lubrication	Oil Lubrication
6000	10	26	8	4.58	1.97	30000	36000	0.019
6001	12	28	8	5.11	2.39	28000	32000	0.021
6002	15	32	9	5.59	2.84	24000	28000	0.03
6003	17	35	10	6.00	3.25	22000	26000	0.04
6004	20	42	12	9.38	5.03	18000	20000	0.068
6005	25	47	12	10.06	5.85	15000	18000	0.079
6006	30	55	13	13.23	8.30	13000	15000	0.113
6007	35	62	14	16.21	10.42	11000	13000	0.149
6008	40	68	15	17.03	11.70	10000	12000	0.185
6009	45	75	16	21.09	14.77	9000	11000	0.231
6010	50	80	16	22.02	16.25	8500	10000	0.25
6011	55	90	18	30.26	21.93	7500	9000	0.362
6012	60	95	18	31.66	24.22	7100	8500	0.385
6013	65	100	18	32.06	24.89	6700	8000	0.408
6014	70	110	20	38.59	30.43	6000	7100	0.537
6015	75	115	20	40.20	33.20	5600	6700	0.603
6016	80	125	22	47.50	39.80	5300	6300	0.821
6017	85	130	22	50.80	42.80	5000	6000	0.848
6018	90	140	24	58.00	49.80	4800	5600	1.103
6019	95	145	24	60.50	54.00	4500	5300	1.156
6020	100	150	24	64.50	56.20	4300	5300	1.174
6021	105	160	26	72.50	66.00	4000	4800	-
6022	110	170	28	85.00	73.00	3800	4500	-
6024	120	180	28	88.00	80.00	3600	4300	-
Note: Above-mentioned products include its modification series, such as Z,2Z,RS,and 2RS ets.

Detailed Photos
Black chamfer with rubber seal
Black chamfer with white dust cover
open UG
white chamfer with Yellow dust cover
THE USE OF THE BEARING
Some tips on use
Rolling bearing is a precise part. Therefore it should be used carefully. No matter how high performance the bearing has, it can be obtained by improper use, the followings are the points for attention to use bearings.
(1) Keep clean the bearing and its surrounding areas
It is harmful to the bearing even by tiny dust which can not be seen by human eyes. Therefore it should always keep clean the surrounding environments in order to prevent the bearing from dust corrosion.
(2) Use bearing carefully
Scar and indentation can essily be produced out of strong impact to the bearing in use and become the cause of accidents. Therefore special caution should be given to its use.
(3) Use the appropriate operating tool
Avoid using a hammer or heavy direct tap on a bearing or sleeve, must use appropriate tools such as press or heating.
(4) Be careful to the rust corrosion of the bearings
The sweat in the hands will cause rust in operating the bearings. Therefore your hands should be cleanly washed and dried before operation. You'd better wear gloves in doing the work.
(5) Handler should familiar with bearing
(6) Establish bearing handling criteri
·Bearing storage
.Bearing and surrounding cleaning
.Dimension of mounting parts and inspection
.Machining quality
.Mounting handing
.After mounting inspection
·Disassembly handing
·Keep maintain
·Adding lubricant
Installation Instructions Bearing mounting
Precautions for proper mounting of bearing
1) Bearing preparation
Bearing should not be unpacked until before mounting due to spray anti-corrosion oil and pack anti-corrosion paper. In addition, spray anti-corrosion oil on bearing have good lubricate function. For general purpose, just directly using bearing fill-in grease bearings, without cleaning. However, bearing for instrument or high speed rotating must be cleaned with clean filtered oil in order to remove the anti-corrosion oil. At that time, the bearings are easy to corrosion could not storage long term.
2) Inspection of shafts and housings
Cleaning shaft and housing, confirming no scratched or machine burrs, no abrasive and cutting piece in housing. Secondly comppare with drawing, the shaft and housing of dimension, form and machining quality should be inspected.
chart 1 Measure location for shaft diameter chart 2 Measure location for housing bore diameter
As chart 1 and chart 2 showing, divided several locations to be measure on shaft and housing bore diameters, It should be careful inspected perpendicular between shaft, housing fillet dimension and shoulder.
Before mounting bearing, it should be sprayed mechanical oil on fitting surface after check out the shaft and housing.
Bearing storage
Before leaving the factory, the bearing is sprayed proper rust-inhibiting oil and packed rust-inhibiting paper. The quality of bearing is guaranteed, if the packing is not broken.
For long-term storage, if the humidity less than 65% and the temperature about 20, it should storage on shelf which is higher 30cm than ground.
In addition, storage occasion should avoid sunshine and contact with cold wall.
