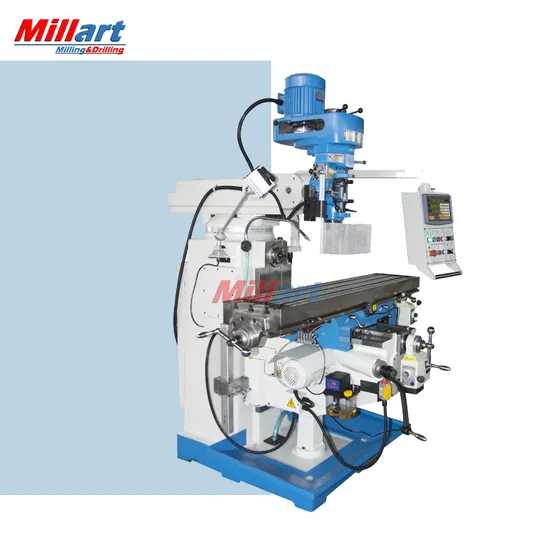

High Quality Vertical Turret Milling Machine 3HP/5HP Motor, Horizontal Turret Milling Machine X6325W X6330W

Product Description

Product description:
Technical parameter :
Universal turret milling machine are widely used for processing flat face, slope face, keyway, key groove, slot and drilling, reaming, boring in almost every country all over the world because of the high quality with competitive price.
Taiwan original milling head and 3 axes Taiwan leadscrews make sure our milling machines performance better than others.
Cast iron with high precision, long service life
Three axis hardening treatment
Equipped with manual lubricating device.
Turret milling head with tilt from Taiwan
With horizontal milling head

Model	X6325W	X6330W
Table size(mm)	254x1370	1370x305
Longitudinal travel(mm)	870	870
Cross travel(mm)	420	380
Vertical travel(mm)	435	400
T-slot No.and size(mm)	3*16	3*16
Ram travel(mm)	470	500
Distance from spindle nose to table(mm)	0-400	0-400
Vertical Spindle speed( rpm)	65-4500/16 shifts	66-4540
Horizontal spindle speed( rpm)	40-1280/12 shifts	40-1300
Spindle hole taper	R8/ISO30	7:24 ISO40 (V/H)
Spindle travel(mm)	127	127
Vertical Spindle motor	2.25kw/3hp	3.7kw/5hp
Horizontal spindle motor(kw)	3.7	3.0
Head swivel	90°	90°
Head tilting	45°	45°
Dimension of package(mm)	1516x1550x2080	1750x1650x2340
G.W/set(kgs)	1500/1600	1550/1650

Standard accessories:
Drill chuck
Reduction sleeve
Draw bar
X,Y,Z axis auto power feed
Mill arbors
Collet chuck kits
Coolant system
Chip tray
Work lamp
Optional accessories:
X axis power feed motor
Y axis power feed motor
Z axis motorized lifting
2 Axis DRO
3 Axis DRO
Air draw bar
58 pcs Clamping kits
Spindle protection
6"Machine vice
Variable spindle speed
Company information:
FAQ
Q: Are you a trading company or a physical factory?
A: We are a specialized physical factory for more than 10 years. Our machines also gained CE certificate, ISO9001 and EAC certificate.
Q: What's your main products of your company?
A : We specialized in Vertical Machining Center, CNC Lathe, Milling Machines, Lathes, Drilling Machines, Saws, Shapers and so on.

Q: Can you provide customized machine?
A: Yes, we provide customized service for customers to meet different requirements.


Q: Can we visit your factory?
A: Sure, we warmly welcome you to visit our factory at any time. The more you know about us, the more you will trust us! So you can rest assured on our quality machines and our best service.
Q: What's the Payment Terms ?
A : T/T ,30% deposit when order ,70% balance payment before shipment ; Irrevocable LC at sight.
Q: What is your trade terms?
A: FOB, CIF ,DDP and CFR all acceptable.
