MD-S540 270 Rotated Digital Remote Pressure Gauge on Fire Extinguisher

MD-S540 270 Rotated Digital Remote Pressure Gauge on Fire Extinguisher

US$38.90-44.90 20 Pieces (MOQ)

Basic Info.

Model NO.
MD-S540
Measuring Range
Vacuum Gauge
Type
Digital Display
Accuracy
1
Display
Digital
Application
Industrial
Connection Type
Radial Direction
Function
Local Indication Type
Installation Structure
Direct Mounting
Features of Measurement Medium
General Pressure Gauge
Dia
40mm
Output
RS485
Range
6/16/30MPa
Connection
M10*7
Shell Materials
304ss
Transport Package
Carton
Specification
0.5kg
Origin
Shanghai
HS Code
9026209090
Production Capacity
100000/Year

Packaging & Delivery

Package Size
10.00cm * 15.00cm * 10.00cm
Package Gross Weight
0.300kg

Product Description

Product Description

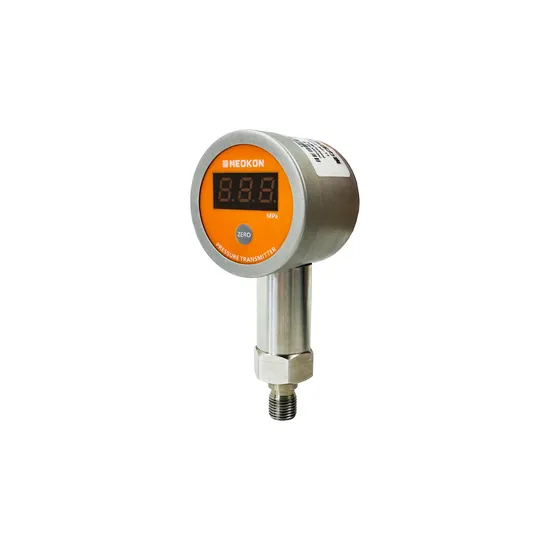

MD-S540 series digital remote pressure gauges use RS485 remote transmissionsignals. This series of remote pressure gauges uses three-digit display to display thepressure value in real time. At the same time, the pressure signal can be transmittedremotely, and the transmission distance is better than 500 meters.
This series of digital remote pressure gauges has a built-in pressure sensor withexcellent accuracy. lt adopts 304 stainless steel shell and joints, excellent workmanshiphigh cost performance, and has a very wide range of media applicability. The IP54protection level of the whole machine, the watch body supports 270° rotation angle, andthe dial orientation can be adiusted at any time.
This product can be used to replace the traditional pointer remote pressure gauge orpressure transmitter.
APPLICATION:
Gas fire extinguishing tank monitoring

TECHNICAL PARAMETERS:
Range 6/16/30MPa
Overload Capacity 120%
Display LED display
Response times <2ms
Accurate 1%FS
Long-term Stability 0.5%FS/year
Power supply 12~28VDC
Output RS485
Working temperature -20~80°C
Electrical protection Anti-frequency interference design
IP rate IP54
Testing medium Gases or liquids that are not corrosive to stainless steel
Connection M10*7
Shell materials 304SS
de
A

WNG DEFINITION:a
WIRING deWIEIDEFINI
