Txk Factory 380V 3000kg Motorized Electrical Winch for Sale

Product Description

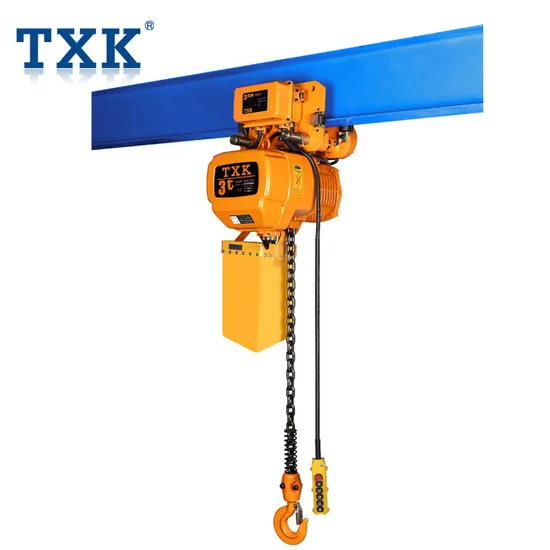

TXK Factory 3000kg Motorized Electrical Winch for Sale

Characteristics:
0.5~50 ton lifting capacity With upper hook (fixed) or with trolley Single/Double speed option Shell: aluminum alloy Chain: high quality G80 Chain container: canvas / iron Gear & chain wheel: alloy steel + heat treatment Hooks: heat forging+heat treatment Chain diameter: 6.3~11.2mm (as per different capacities) Motor rotate speed:1440r/min(single speed), 2880/960 r/min(double speed), Standard chain length: 3m (can be customized) Power specification:200~690V,50/60HZ,3 Phase Safe voltage:24V/36V/48V Button switch:2/4/6/8 buttons option Insulation grade:F class Protection class: IP55 Working group:M4 Working temperature: -40ºC ~ +40ºC OEM acceptable Customized logo acceptable Package: plywood case Warranty: 2 years for mechanical parts, 1 year for electric parts

Single Speed					Technical Parameters
Model	SSDHL
	0.5-01S	01-01S	1.5-01S	02-01S	02-02S	2.5-01S	03-01S	03-02S	03-03S	05-02S
Capacity (t)	0.5t	1t	1.5t	2t		2.5t	3t			5t
Lifting Speed (m/min)	7.2	6.6	8.8	6.6	3.3	5.4	5.4	4.4	2.2	2.7
Motor Power (Kw)	0.8	1.5	3.0	3.0	1.5	3.0	3.0	3.0	1.5	3.0
Rotation Speed (r/min)	1440
Insulation Grade	F
Power Supply	3P 220V ~ 690V
Control Voltage	24V/36V/48V
No. of Chain	1	1	1	1	2	1	1	2	3	2
Spec. of Load Chain	ø6.3	ø7.1	ø10.0	ø10.0	ø7.1	ø11.2	ø11.2	ø10.0	ø7.1	ø11.2
Net Weight (Kg)	47	61	108	115	73	115	122	131	85	151

Dual Speed					Technical Parameters
Model	SSDHL
	0.5-01D	01-01D	1.5-01D	02-01D	02-02D	2.5-01D	03-01D	03-02D	03-03D	05-02D
Capacity (t)	0.5t	1t	1.5t	2t		2.5t	3t			5t
Lifting Speed (m/min)	7.2/2.4	6.9/2.3	9.0/3.0	6.9/2.3	3.3/1.1	5.4/1.8	5.41.8	4.5/1.5	2.4/0.8	2.7/0.9
Motor Power (Kw)	0.8/0.27	1.8/0.6	3.0/1.0	3.0/1.0	1.8/0.6	3.0/1.0	3.0/1.0	3.0/1.0	1.8/0.6	3.0/1.0
Rotation Speed (r/min)	2880/960
Insulation Grade	F
Power Supply	3P 220V ~ 690V
Control Voltage	24V/36V/48V
No. of Chain	1	1	1	1	2	1	1	2	3	2
Spec. of Load Chain	ø6.3	ø7.1	ø10.0	ø10.0	ø7.1	ø11.2	ø11.2	ø10.0	ø7.1	ø11.2
Net Weight (Kg)	54	74	144	150	86	148	159	168	102	184
