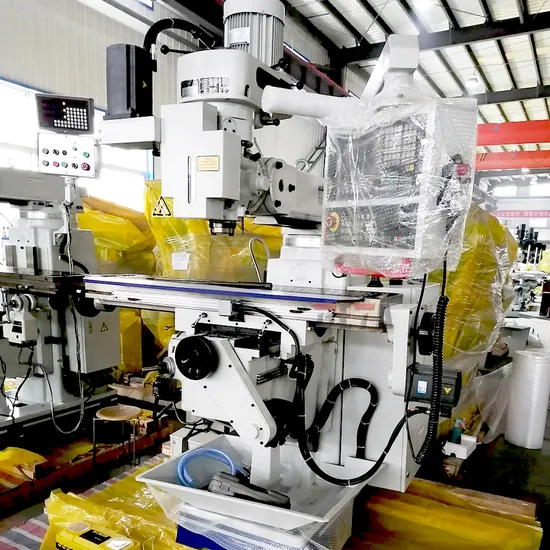

High Precision 3 Axis Turret Variable Speed CNC Milling Machine Xk6325
Basic Info.
Model NO.
XK6325
Type
CNC Milling Machine
Object
Hardware
Structure
CNC Turret Milling Machine
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
CNC
Automatic Grade
Automatic
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Guideway
Hardened Guideway
Worktable Size
254X1270mm
X/Y/Z Axis Travel
750/400/103mm
Spindle
R8 ISO40
Milling Head
3HP or 5HP
Delivery Time
Two Month
X/Y/Z Axis Motor
Servo Motor
Voltage
Customized
Spindle Speed
4540rpm
Color
Customized
3-Axis Rapid Feed
Standard
Variable Speed Milling Head
Optional
Table Loading
280 Kgs
Control
GSK Siemens CNC System
Air Drawbar
Optional
Transport Package
Wooden Case
Trademark
BETA
Origin
Shandong, China
Production Capacity
50 Sets Per Month
Packaging & Delivery
Package Size
200.00cm * 200.00cm * 200.00cm
Package Gross Weight
1500.000kg
Product Description
High Precision 3 Axis Turret Variable Speed CNC Milling Machine XK6325| Model | Unit | XK6325 | XK6330 | |
| Table size | mm | 254×1370 | 305×1370 | |
| T slots | n*mm | 3×16 | 3×16 | |
| Table loading | kg | 280 | 350 | |
| X axis(table longitudinal move)travel | mm | 750 | 800 | |
| 850 | 900 | |||
| Y axis(table cross move)travel | mm | 400 | 360 | |
| Z axis(Quill move)travel | mm | 103 | 103 | |
| X/Y/Z axis servo motor | kw | 1 | 1 | |
| Knee vertical travel | mm | 400 | 380 | |
| Ram travel | mm | 470 | 500 | |
| Distance from spindle to table | mm | 0-400 | 0-380 | |
| Spindle speed | Atandard:16 steps | rpm | 50HZ:66-4540 60HZ:80-5440 | 50HZ:66-4540 60HZ:80-5440 |
| Optional:Variable | 60-4200 | 60-3600 | ||
| Spindle taper | Standard:R8/Optional:NT40 | NT40 | ||
| Motor power | HP | 3 | 5 | |
| Head rotating | Swiveling | degree | 90° | 90° |
| Tilting | 45° | 45° | ||
| CNC controller | GSK/Siemens | GSK/Siemens | ||
| Packing size | mm | 1900×2000×2230 | 2000×2000×2250 | |
| G.W | kg | 1400 | 1800 | |
Features:
1.Cast-iron with wide, hardened, plastic-coated rectangular guide ways
2.Powerful main motor with electronic control and shifted gears ensure high torque and wide speed range
3.Cutter head swivel to both sides
4.Automatic central lubrication
5.Mini and economical style, with lower price and widely using
6.Milling head from Taiwan
7.Bearing from NACHI
8.Ball lead screw from Chinese famous brand
9.3-Axis servo motor and 3-axis rapid feed
10.Variable speed milling head for your choice as optional accessories.
