300B/H Automatic Bottle Outer Washing Machine for 5 Gallon
| US$5,300.00 | 5 Pieces (MOQ) |
Basic Info.
Model NO.
STJ-300
Voltage
220V
Composition
Rinser
Processing Material
Natural Ingredients
Process
Frozen and Chilled
Material
Stainless Steel 304
Capacity
300b/H
Model
Stj-300
Automation
Full Automatic
Storage Method
Normal
Shelf Life
>12 Months
Certification
ISO
Type
Water
Packaging Material
Plastic Packaging
Main Ingredient
Water
Transport Package
Wooden Package
Specification
300B/H 5G stainless steel 304
Trademark
JINRONG
Origin
China
HS Code
8422
Production Capacity
2000pieces/Year
Product Description

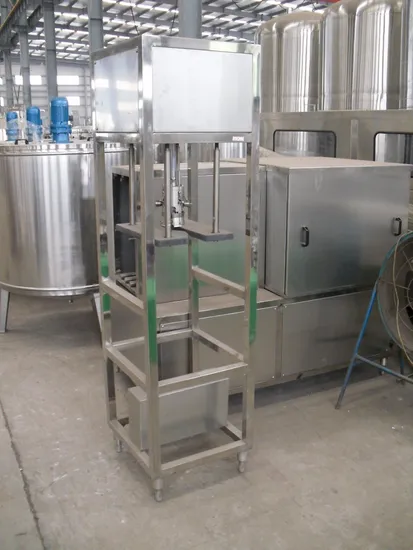

STJ series Automatic barrel outer brusher specially work with 3 and 5 Gallon barreled water production line, especially for production of mineral water. It is used for reducing the settling caused by the mineral water itself and some algae substances in the process of mineral water producing. With the omni-directional cleaning including the bottom, inner and outer of the barrel, the machinery improves the cleaning efficiency remarkably and reduces the possible pollution caused from manual washing and decreases the worker's pressure. The machine is made of excellent stainless steel with the advantage of easily-rinsing and corruption-resistance. The machine works reliably and efficiently based on the compact structure and high automatic technology. It is the fully automatic barreled water producing equipment combined with machine, electronic and pneumatic components.
Type: STJ-300
Number of washing heads: 3
Dimension of barrel: Ф276×490
Capacity: 300 barrels per hour
Power supply: 380V, 50Hz, Max power consumption 1.7kw
Structure type: gear wheel transmission
Overall dimension(mm): 1600×1210×890
Weight: about 1 Ton
The working process is achieved by rotary barrel outer brusher.
| Item No. | Trouble | Reason | Solution |
| 1 | De-capping doesn't work well. | 1. If the nuts of de-capper is loose or tight. | 1. To adjust the nuts accordingly. |
| 2. The bolt type sheet can't hold tightly. | 2. To adjust the screws accordingly. | ||
| 2 | Air cylinder doesn't work or work abnormally. | 1. There's water inside the solenoid valve which cause short circuit. | 1. To wipe the water with dry cloth, tighten the solenoid valve terminal block screw and ensure the surface keep dry. |
| 2. Solenoid valve no voltage. | 2. To check the circuit condition, and solve the problem. | ||
| 3. With voltage but there's dirty inside the core of the air way plate. | 3. To clean the core with clean gas, if necessary, to change the solenoid valve parts. | ||
| 4. The throttle valve is not adjusted very well. | 4. To adjust the position of the valve, when in clockwise, will speed up the air cylinder, and vice versa. | ||
| 3 | The pump stops suddenly with alarm. | Thermal relay overload. | 1. To check the power condition and pump condition, if there's any block. |
| 4 | The driving chain misplaced due to sudden stop. | Position misplaced due to sudden stop. | Under manual condition, to push the main axis air cylinder, and push the chain until the right position. |
