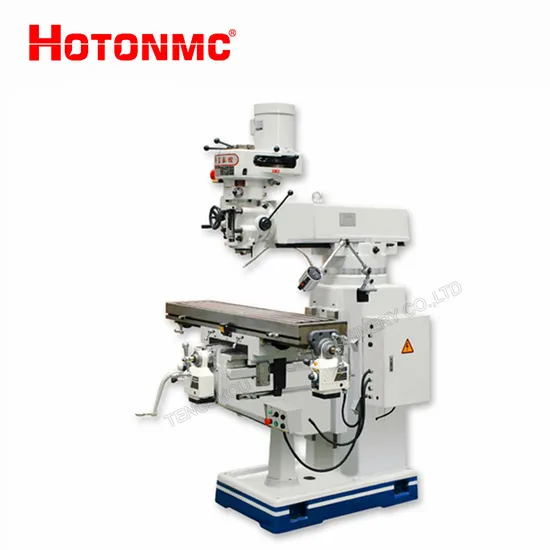

X6333V Turret Milling Machine XN6330h X6330H XS6330H X6325D X6330D
| US$2,800.00-3,900.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
X6333V
Type
knee type milling machine
Object
Metal
Structure
Ram
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Overall Welding Tooth
Controlling Mode
Artificial
Automatic Grade
Manual
Precision
Precision
Certification
CE, ISO 9001
Condition
New
Table Size
254X1370mm
Long Travel(mm)
950mm
Cross Travel(mm)
420mm
Vertical Travel(mm)
420mm
Motor
3.75kw
Transport Package
Plywood Case
Specification
1600kgs
Trademark
HOTON
Origin
China
HS Code
8459590000
Production Capacity
10 PCS/Month
Product Description
TURRET MILLING MACHINE FEATURES:
Feature of X6323
Double 55° swallowtail guide way is adoped on both Y, Z-axis, so it is easy to adjust and repair.
Adopted strengthen rib on both ides of the column that makes the machine rigidly and beautiful.
Feature of X6325:
Rectangular guide way on Y-axis and Z-axis is feature a good rigidety
The guide way on saddle is lined with TF wearable material
The worktable surface and 3 axis guide way are hardened and precision ground
Feature of X6325D:
Rectangular guide way is adopted both on Y and Z axis.
The guide way on saddle is lined with TF wearable material. Which makes the machine stably
and rigidly, also makes it beautiful and easy to operate.
5HP milling head motor and quill diameter is 100MM
Feature of X6333
Double 55° swallowtail guide way is adoped on both Y, Z-axis, so it is easy to adjust and repair.
Adopted strengthen rib on both ides of the column that makes the machine rigidly and beautiful.
Feature of X6330A
Double 55° swallowtail guide way is adoped on both Y, Z-axis, so it is easy to adjust and repair.
Adopted strengthen rib on both ides of the column that makes the machine rigidly and beautiful.
SPECIFICATIONS:
| MODEL | X6323A | X6325 | X6325D | X6333 | X6330A | |
| Table size | 230*1067 230*1246 | 254*1270 254*1370 | 254*1270 254*1370 | 330*1370 330*1500 | 305*1370 305*1500 | |
| Long travel(mm) | 650 840 | 850 950 | 850 950 | 840 1000 | 870 1000 | |
| Cross travel(mm) | 305 | 420 | 420 | 368 | 380 | |
| Vertical travel(mm) | 350 | 420 | 420 | 450 | 430 | |
| T-slot No.and size(mm) | 3x16 | |||||
| Ram travel(mm) | 315 | 470 | 470 | 500 | 500 | |
| Distance from spindle nose to table surface(mm) | 0-350 | 0-405 | 0-405 | 0-450 | 0-350 | |
| Spindle hole taper | Standard:R8 | standard:ISO40 | ||||
| Spindle travel(mm) | 127 | |||||
| Spindle speed(r.p.m) | standard: shift grade 16, 50HZ 65-4500,60HZ80-5440 | |||||
| optional:variable:60-4200 | ||||||
| Auto.quill feed | Three steps:0.04/0.08/0.15mm/revolution | |||||
| Spindle motor | 2.25kw/3hp | 2.25kw/3hp | 3.75kw/5hp | 3.75kw/5hp | 3.75kw/5hp | |
| Head swivel | 90° | |||||
| Head tilting | 45° | Fix | ||||
| Dimension of package | 1400 x1476x2030 | 1516 x1550x2080 | 1516 x1550x2080 | 1800 x2016x2180 | 1566 x1650x2080 | |
| G.W/set | 1100 | 1550 | 1590 | 2300 | 1750 | |
| MODEL | X6333V |
| Features | Rectangular guide way on Y/Z-axis |
| Table size | 305×1370 |
| Table loading | 350Kg |
| Long travel | 800mm |
| Cross travel | 420mm |
| Vertical travel | 420mm |
| T-slot No. and size | 3×16 |
| Ram travel | 500mm |
| Distance from spindle nose to table surface | 0-405mm |
| Spindle hole taper | ISO40 |
| Sleeve Diameter | 85mm |
| Spindle travel | 127mm |
| Spindle speed | Variable speed 50HZ: 66-4540 60HZ: 80-5440 |
| Auto. quill feed | (three steps) : 0.04 ( 0.0015" ) / 0.08 ( 0.003" ) / 0.15 ( 0.006" ) mm/revolution |
| Spindle motor | 3.75KW/5HP(380V) 2.2KW/3HP(220V) Milling Head from Taiwan |
| Head swivel | 90° |
| Head tilting | 45° |
| Dimension of machine | 1516×1550×2500 |
| G.W/set | 1500Kg |
