Engine Cylinder Head Block Pressure Tester Machine Tpt1600

Product Description

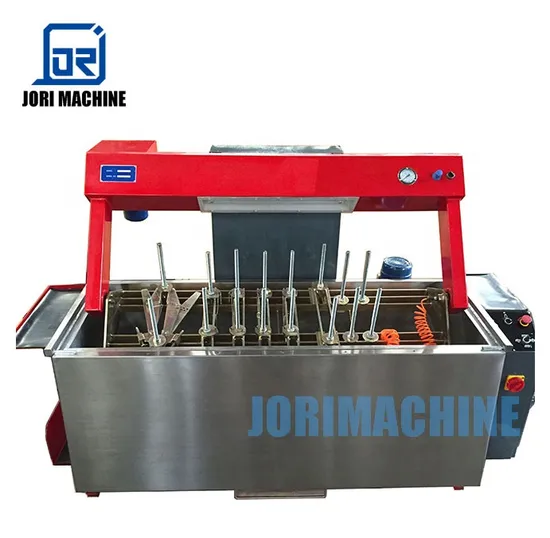

Engine Cylinder Head And Cylinder Block Pressure Tester Machine TPT1600
1.Easy and efficient pressure test of cylinder head and cylinder block coolant circuits.
2.Quick and easy clamping system allowing tests at a pressure of the 4 to 5 bar.
3.360°
electric powered roll-over fixture. 360°
4. Hydraulic cradle lift for easy positioning of heavy cylinder heads.
5.Stainless steel tank with heat barrier.
6.Heating elements: two changeover 4500 Watts elements.
7. Water level control. Low votage:24 V operating control.
8.Electronic adjustable thermosistor .
9.Heating programmer daily or weekly.
Specifications:

Model	TPT1600
Max. head capacity
Maximum length	1200 mm / 47.24"
Maximum width	400 mm / 15.74"
Maximum height	300 mm / 11.81"
Maximum weight	100 Kg / 220 Ibs
Capacity of stainless steel tank	500liters / 132 USngal
Raising/lowering travel	600 mm / 23.6"
Raising/lowering time	10 seconds
Speed of rotation	6 RPM
Power supply	380V 3PH
Packaged Weight	650kg

Machine Details

Our Company
Packing & Delivery
Our Service: Pre-Sales Service Of Engine Cylinder Head And Cylinder Block Pressure Tester Machine TPT1600
1.Fastly and professional reply to you about your questions for our Engine Cylinder Head And Cylinder Block Pressure Tester Machine TPT1600 2.Expert sales person will provide you professional suggestion to you based on your correct needs for the configurations of the machines3.Detailed and clearly explain to you when you come to our factory for visiting before contract
In-sales service for Engine Cylinder Head And Cylinder Block Pressure Tester Machine TPT1600
One-stop and customize service for you, all Engine Cylinder Head And Cylinder Block Pressure Tester Machine TPT1600 related machines are available from us 24 Hours online service, 7 Days one week support for you if any technical questions or problems about Engine Cylinder Head And Cylinder Block Pressure Tester Machine TPT1600
After sales service for Engine Cylinder Head And Cylinder Block Pressure Tester Machine TPT1600
1.Operation manual and vedio and picture 2.Guarantee you steady supply for the spare parts with the lower prices
FAQ:
1. How long is your Warranty?
A: All our products will have ONE year guarantee and we will continue to offer advice and spare parts after this period.
Within ONE year after receiving our machines, Under right operation and non-artificial reasons, If there are any damaged parts or accessories, We will replace them by air-mail or Express immediately FREE OF CHARGE.
After ONE year warranty, Spare parts and damaged parts will be charged at cost price. If there is something wrong with the machine, We are responsible to solve this problem soonest, and help customers to restore production as soon as possible.
2. What's the payment terms?
A: At least 30% initial payment when place your order, 70% balance payment before shipment.
some machine need 100% payment in advance.
3. About machine's Transportation & documents?
A: Pls advise us the nearest port of your city in order to check the latest sea freight for you at first. Fast and security shipping company will be chose by our Delivery Department for customers (if we signed contract under CIF term). Even All risks Insurance will be covered during the whole transportation.
Before shipment we will supply all the common documents(packing list, commercial invoice, policy of insurance, bill of lading ) and send it by DHL.
Or Telex Release.
4. What's the MOQ?
A: 1 unit.
