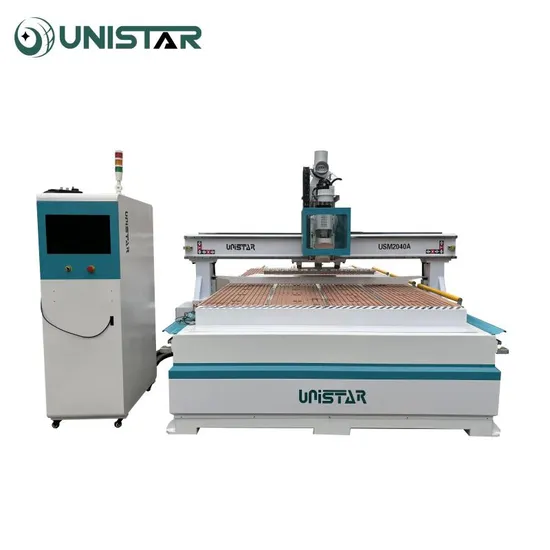

Furniture Making Woodworking Buy CNC Milling Machine for MDF Kitchen Design Engraving Machine Cutting Machine 1325 1530 2040 2140

Product Description

Furniture making woodworking buy cnc milling machine for mdf kitchen design engraving machine cutting machine 1325 1530 2040 2140
Automatic tool changer engraving machine is a major classification of CNC engraving machine, It has an independent tool library, which can automatically change the required tool during the processing of the workpiece without stopping the work.When engraving complex patterns, choose different tools, which greatly accelerates the work efficiency and improves the product quality. Product Parameters

Products name	USM-2040
Machine area (X)	2000mm
Machine area (Y)	4000mm
Machine Area (Z)	200mm
Working area	2000*4000*200mm
Spindle	HQD 9KW AIR cooling ATC spindle
Control system	Taiwan Syntec control system
Table type	Vacuum table
Motor and driver	Yako servo motor and drivers 1KW
Reducer	Shimpo reducer
Inverter	Fuling inverter 11KW
Transmission	X, Y axis by high precision Helical racks and pinions. Z axis Taiwan TBI ball screw (has good performance ,long life ,import from taiwan )
Rail guide	Taiwan Hiwin square linear guide way for x,y axis, import Taiwan High quality rail guide
Electricity	French electricity parts
Limited switch	OMRON limited switch
Prevent dust system	Dust proof system
Oil system	Automatic Oil Lubrication System
Tool sensor	Auto tool sensor
Dust collect system	5.5KW double bags dust collector
Vacuum pump	7.5KW vacuum air pump
Working voltage	AC380v/3ph/50HZ

Product Description
Advantages of machine
1. This engraving machine has a simple, convenient and easy to learn split keyboard operation mode, users quickly master the use of the method.
2.Adopting the automatic tool change mode, which has fast tool change speed and high processing efficiency.
3.Equipped with independent control cabinet, it is more convenient in terms of operation and maintenance.
4. In terms of control system, the control system of the tool changing engraving machine mostly uses Taiwan's numerical control system. This system has a good engraving intelligent processing program, can prevent mechanical collision, and can better control the processing speed, improve the processing efficiency.
5.With an independent dust suction and adsorption device, it can absorb the wood chips and slag generated in the process of processing, which not only keeps the workbench clean and tidy, but also makes the engraving machine have a good working environment.
6.This engraving machine has advanced file preprocessing function, which can help users correct processing errors in time, and the compatibility is better than the domestic system.
Application
1.Woodworking industry
Linear automatic tool changer cnc router can be used for soild wood furniture,mahogany furniture,solid wood door,supboard door and window,folding screen etc.
2.Artwork industry
Linear automatic tool changer cnc router can process wooden craft,mural art of wood,musical instrument etc.
3.The advertising industry
It can engrave all kinds of signage,trademark,nameplates,badge,decorative gift,embossed medal etc.
4.Small-scale woodworking industry
It can be used for solid wood furniture,mahogany furniture,MDF paint door, solid wood door,composite door,cupboard door and window,bedsidecabinet,folding screen etc.
5.Electronics industry
It can engrave electronic component,integrated circuit,electronic plastic case,electronic product model,circuit board,electronic Light box,computer and mobile phone keyboard,engraving a variety of electronic products.
Detailed Photos

Spindle
We use the 9KW HQD 9KW AIR cooling ATC spindle.It is a well-known brand in China. Air cooling spindle , no need water pump , very convenient to use.

Rail Guide
We adopt the world famous rail and guide manufacturer Taiwan Hiwin squarerails ,self-lubricating sliding block.This ensures equal force in all directions and accuracy and strength of the machine.

Table Type
Advantages Of Vacuum table:,saving time, improvingefficiency.

Control system
We use the famous Taiwan syntec control system, which makes the operation of the machine more convenient and the machine work more accurately.


Inverter
The meachine adjusted by fuling inverter;this guarantees the high working speed and accuracy,and can realize milling with high speed,high rotating precision,good rotating with low noise.


Control cabinet
Independent Movable control cabinet , Taiwan delta servo motor and drivers

Electrical accessory
French import s electricity parts with best quality

ATC tool changed system
Our automatic cnc router machine will replace suitable tools when needed for your tool path, and use different tools to carve or cut according to your different design patterns.
Samples of ATC machines
Packaging & Shipping

Company Profile
Certifications
Since company establishment in 2002, we have obtained many certificates such as EU CE Certificate, USA FDA Certificate,Saber Certificate, product patent certificate, ISO high quality inspection certificate, CCPIT Certificate etc.
Client show

FAQ
Q1 :How many years of warranty period?
A1:The whole machine have 2 years quality guaranty, ,any parts broken during the warranty time , we will take place of it free (Under no human damage ).
Q2: Do you have CE document and other documents for customs clearance
A2: Yes, we have CE, Provide you with a one-stop service. At first we will show you and after shipment we will give you CE/Packing list/Commercial Invoice/ Sales contract for customs clearance.
A3 :How to install and run the machine?
Q3: Our technician have installed the machine before shipping. For some small parts
installation, we will send detail training video, user's manual along with the machine.
95% customers can learn by themselves.
Q4: How to solve it if there is some problem or parts broken during operating metal tube laser cutting machine
A4: If machine technical problem , we have engineer online support service , through remote control , video show , to help solve problem , if parts broken ( not consumption parts ,we will take place a new one as soon as possible .
Q5: I don't know which kind of cnc router machine is suit for me
A5: Just tell us your working industry?
What kind of material you need to cut
And the size of wood board , then we have professional sales to recommend you best suit wood engraving machine .
