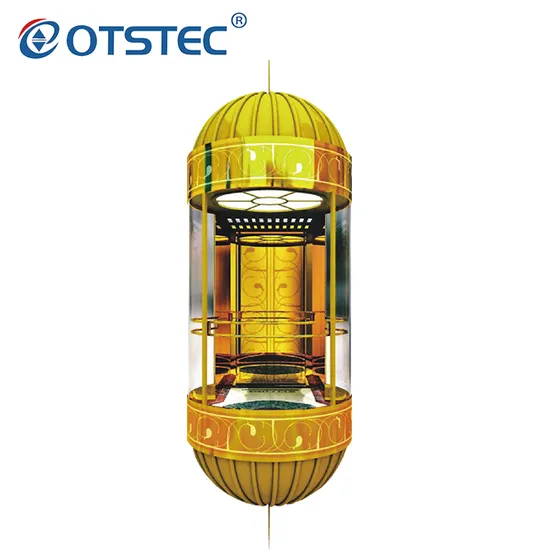

Otstec Cheap Residential Villa Lift Complete Equipment Elevator with CE

Product Description

Product Description
Product Parameters

Small Machine Room
Loading Passenger	Loading Capacity	Speed	Car Size	Shaft(Min.)	Overhead Height	Rise(Max.)
Passenger	(Kg)	(m/s)	W*D*H(mm)	W*D(mm)	W*D(mm)	HQ(Max.)(m)
8	630	1.0-1.75	1400*1100*2400	2200*1650	4500	95
10	800	1.0-2.5	1400*1350*2400	2250*1850	4600	150
13	1000	1.0-2.5	1600*1500*2400	2400*1950	4800	150
16	1250	1.0-4.0	1950*1400*2400	2800*1900	4800	150
21	1600	1.0-4.0	1950*1750*2400	2800*2200	5000	150
Machine Room less
Loading Passenger	Loading Capacity	Speed	Car Size	Shaft(Min.)	Overhead Height	Rise(Max.)
Passenger	(Kg)	(m/s)	W*D*H(mm)	W*D(mm)	W*D(mm)	HQ(Max.)(m)
8	630	1.0-1.75	1400*1100*2400	2250*1700	4800	90
10	800	1.0-2.5	1400*1350*2400	2250*1800	4800	120
13	1000	1.0-2.5	1600*1500*2400	2450*2000	4800	150
16	1250	1.0-2.5	1800*1550*2400	2600*2100	4800	150
21	1600	1.0-2.5	1950*1700*2400	2800*2200	5000	150

1. Material: Painted, Hairline stainless steel, mirror, etched, Titanium gold, rose gold, golden recess, glass;
2. Capacity: 250KG, 320kg, 400kg;
3. Speed: 0.4m/s,1.0m/s,1.5m/s, 1.75m/s,2.0m/s
4. Type: Traction home elevator, Strong drive home elevator, Steel belt home elevator, Knapsack frame structure home elevator;
5. Machine Room: Machine Roomless (MRL)
6. Control system: MonarchPermanent Magnet Synchronous And
Gearless Traction Machine
It uses rare earth materials,fully integrates coaxial
transmission technology, digital frequency technology
with group computer control technology, high-efficient
and energy-saving,with minimum operation cost, low
heat loss, and extremely high efficiency, can save up to
40% energy compared with general traditional technology.
Besides, by using gearless traction machine doesn't need
changing grease, no oil contamination, low noise design,
creating a quiet riding space for you.
VVF New Controller
It can automatically adjust the current and precisely control the torque of the host machine according to the load of the car, fully making the elevator stable and comfortable.
Door System
The application of advanced VVF control technology into elevator door machine system ensures the smooth and quiet door opening and closing, increases the sensitivity of elevator door opening and closing, and automatically adjusts the most appropriate opening and closing speed for each landing ensures safety and reliability. Besides, the door load detector with self-learning ability can better improve the sensitivity of door opening and closing, monitor the changes of door load for each floor.and can reopen the elevator door automatically in case of abnormal resistance
Production Process
Packaging & Shipping
Certifications
Exhibitions
Our Advantages
What advantages your elevators have?
We use the best parts for our elevators, gearless motor from XIZI forwarder,
door operator from Shenling or Wittur, control system from Monarch or STEP etc.
All these parts from the biggest and the best suppliers in the world.
Actually, elevator is an assembled product.
And we control the design, control system, and the parts quality and delivery.
Our strict management make sure the elevator can be installed without any problem
and all parts will be fixed in the correct position,
our design make sure the elevator can run stably and efficiently.FAQ
Q1. How to get fast reply for inquiry?
Send complete information to us, like below example.

Shaft	Not designed	Under construction or Finished
Elevator type	Tell us the capacity you need or for how many persons, also you can refer to our standard size as product parameters above	Passenger, panoramic, cargo, home, car lift
Machine room		With or without
Capacity/persons		1000kg/13persons
Floor/stop/door		6 floors 6 stops 6 doors
Speed		1.0m/s
Cabin door		one cabin door
Shaft size		(W)2200*(D)2100
Overhead height		4500mm (possible to change)
Pit depth		1500mm
Each floor height		≥2700mm
Decoration
Cabin		Stainless steel
Cabin wall		Stainless steel
Main landing door		Stainless steel
Other landing door		Painted steel
Floor		PVC /marble
Other requirements		any special reguirement, just let us know

Q2. What is your terms of packing?A: Generally, we packed our goods by solid wood case,If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.Q3. What is your terms of delivery?A: EXW, FOB, CFR, CIF.
Q4. How to do for passengers when elevator power is off suddenly?
In case of power failure, elevator stops, the passengers can press the Alarm bell button inside cabin, and the maintenance people should come, make the elevator stop in level and open the door.
Also, you can also buy an ARD or UPS device with the elevator, then it can make the elevator stop in level and open the door automatically. It can save time and reduce the fear for the passengers inside the elevator.
Q5. How about your delivery time?A: Generally, it will take 25 to 30 days after you confirm the elevator (escalator) specification and drawing, and receiving your advance payment.Q6. Do you test all your goods before delivery?A: Yes, for elevator,we will assemble the cabin,cabin frame,door operator ,for escalator,we will test to run 72 hours before delivery,at the meanwhile,we will send you many test pictures.Q7: How do you make our business long-term and good relationship?A:1. We keep good quality and competitive price to ensure our customers benefit ;2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
