AquaSTAR Series water heater heat pump

Product Description

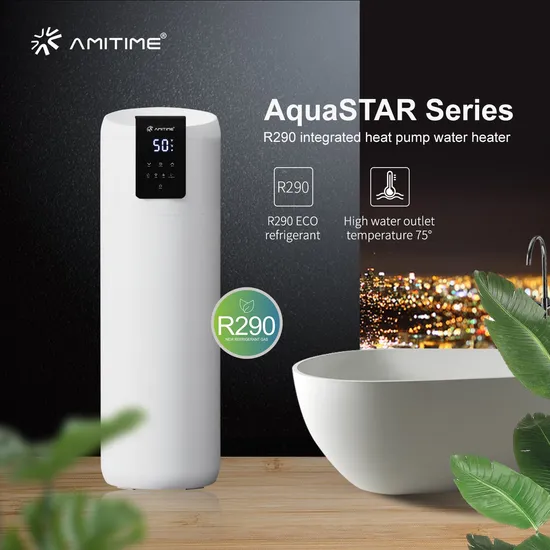

AquaSTAR Series
R290 integrated heat pump water heater
AquaSTAR R290 series developed by Amitime is a epitome of innovation in home comfort technology. This is an integrated all-in-one heat pump water heater series, champions eco-friendly application with its R290 refrigerant. Its smart operation panel provides an intuitive interface for flexible functions, and with built-in DTU & WIFI, it becomes a natural extension of your smart home network. The working priciple makes it easy to combine with residential fresh air system.
AquaSTAR R290 represents the forefront of sustainable, intelligent, and efficient water heating, promising a greener lifestyle.
Technical Data

Model		HAFV-01HGAAB-GM	HAFV-01HGAAB-GM01	HAFV-01HGAAB-GM02	HAFV-03HGAAB-GM
Volume	L	100	200	300	250
Air outlet method		Top	Top	Top	Side
Rated Heating Capacity	kW	1.28	1.28	1.28	3.5
Power Supply	V/Hz/Ph	230/50/1	230/50/1	230/50/1	230/50/1
COP(EN16147)7/6ºC	W/W	2.61	3.11	3.08	3.06
Heating Time*	h	4.55	5.41	8.15	4.05
Refrigerant	/	R290(150g)	R290(150g)	R290(150g)	R290(450g)
Electric Heater	kW	2	2	2	2
Noise	dB(A)	42	42	42	42
Operation Range	ºC	-5~43	-5~43	-5~43	-5~43
Water Outlet Temp Range	ºC	38~60	38~60	38~60	38~60
Max. Water Outlet Temp	ºC	75	75	75	75
Net Weight	kg	69	99	115	125
Net Dimension	mm	∮470*1550	∮650*1635	∮650*1860	∮650*1810

* Testing condition is ambient temp DB/WB 7ºC/6ºC, water inlet/outlet is 15ºC/55ºC
Product Description
· Key Features
· Detailed Photos
Company Profile
AMITIME was set up in 2003, and is a professional manufacturer in China and a leading supplier of developing and providing energy saving equipment and cost-efficient solutions for global market.
AMITIME has established an effective and dynamic platform for development and manufacturing, and has reached strategic cooperation with ES, Parker Davis and other international heat pump and air conditioning companies. Through a wider European and global perspective, the joint cooperation has been very competitive and commercial successful to strengthen our leading position for overseas market.
AMITIME has worked in the R&D of air source heat pump with DC inverter compressor technologies for more than 21 years. As one of the pioneer developers of DC inverter heat pump, AMITIME has successfully launched four products series, including DC inverter air source heat pump, commercial inverter heat pump, swimming pool heat pump, and fan coils.
AMITIME continually caters to the demand of customers, and becomes very professional on providing OEM/ODM solution to our international distributors and partners, and keeps on delivering most competitive, high energy efficient, good quality and cost effective products for global market.
· Workshop
(1)There are 27000 square meter factory area with 8 production lines.
(2)500+ employees, production capacity up to 600 sets/day
(3)Annual production capacity 100,000pcs to EU every year
(4)ISO 9001 / ISO14001 / QC080000 certified company
· Testing Labs
AMITIME testing labs contain 7 testing chambers, which are approved by TUV and ITS. They can do full tests complying with latest EU regulation EN14511 and EN14825 for units from 5kW up to 300kW. They cover capacity testing, reliability testing, long running testing, noise testing and low ambient temperature testing. -30ºC testing lab enables our heat pumps to be verified to meet high requirements for functionality and efficiency even at low outdoor temperature in different overseas market, especially for Scandinavian market.
· Showroom
· Business Range
AMITIME has made tremendous technology progress and continuously improved the product for many years, and established advanced production line with latest technology and R&D facilities for heat pump. That's why we are proud to become one of the leading manufacturers for European market. AMITIME has built a strong partnership with leading distributors of heating system throughout Europe, and we are able to provide ODM/OEM solutions for global market, making exclusive and premium design for different areas. Around 80% products of AMITIME, including DC inverter air to water heat pumps, pool heaters and fan coil units have been exported to overseas countries, such as Sweden, Norway, Finland, Denmark, Germany, France, Italy, United States, South Africa, Japan and other countries. Excellent performance and extraordinary quality of our products secure and strengthen good cooperation with our customers in a long term. Based on good experience from overseas market, AMITIME has expanded the business to domestic market since year 2010, with AMITIME brand, and has established nationwide sales channel, and grows up rapidly every year.
· Certificate
Exhibition
Project Cases
FAQ
1. Can we add our brand?
Yes, we do both of the OEM and ODM business.
2. What other products do you have?
> Residential Heat Pump (heatSTAR with A+++ Energy Level, R32/R290/R410A) > Commercial heat pump (PowerSTAR with DC Inverter+EVI & A++ Energy Level) > Swimming Pool Heat Pump (R32 Range with Full Inverter) > Fan Coil Unit (DC Motor & Touch Operation Panel)
3. How long is your warranty?
One year warranty for complete machine, three years warranty for compressor, and long term technical support.
4. What kind of payment term do you offer?
30% deposit to confirm the order, and the balance need to be done before shipment.
Any more questions, please feel free to contact us.
