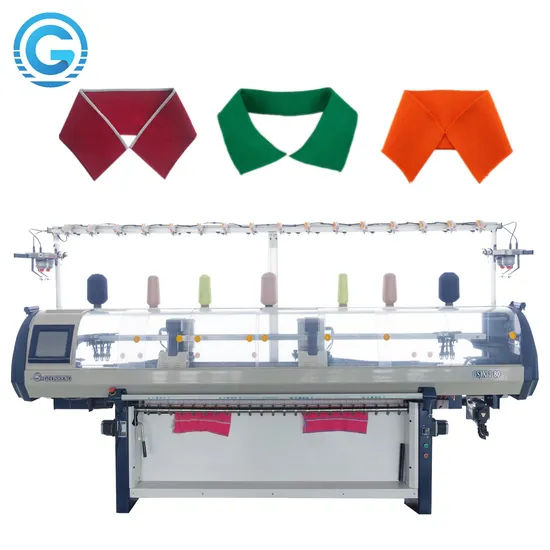

Single System 14G Automatic Sweater Knitting Machine

Product Description

DO YOU KNOW GSJX1-80?
WALK WITH KNITTER
TECHNICIAN OF KNITTING MACHINES
Guosheng is currently at the forefront of the industry after 30 years of product upgrade and 30 years of service enhancement.
maker of knitting machines in the world. It takes on the responsibility of enhancing overall performance.
and collaborate with the knitter to continually make substantial contributions to the standardization of the
knitting machine in the world.
CAUSES TO PURCHASE IT
As soon as you purchase our machine now, you will receive free machine operation training and pattern-designing training.
Guosheng's idea of service is mature and attentive service, free machine operating training, and
Free pattern-designing instruction for consumers.

SPECIFICATIONS FOR FLAT KNITTING MACHINE
MODEL	GSJX-1-80
GAUGE	14G
KNITTING SYSTEM	SINGLE SYSTEM SINGLE CARRIAGE
KNITTING WIDTH	80INCH
KNITTING SPEED	1.2m/s MAX.1.2M/SEC
KNITTING FUNCTION	TRANFER,TUCK,MISS,JACQUARD,INTARSIA,HIDE OR APPARENT SHAPING.
STITCH DENSITY	STITCH SYSTEM CONTROLLED BY STEPPING MOTOR,32 SECTION STITCH SELECTABLE,ADJUSTABLE SCOPE SUPPORTED BY SUBDIVISION TECHNOLOGY:0-650
RACKING	CONTROLLED BY AC SERVO MOTOR,RACKING WITHIN 2 INCHES AND WITH FINE ADJUSTIING FUNCTION.
DRIVE SYSTEM	SYNCHRONOUS BELT DRIVE,AC SERVO SYSTEM
NEEDLE SELECTION	CONTROLLED BY COMPUTER,ELECTRIC MAGNET NEEDLE CHOOSE SYSTEM WITH HIGH EFFICIENCY.
YARN CARRIER	1x8YARN CARRIERS ON EACH SIDE OF 4 GUIDE RAILS,SHIFTABLE ON ANY NEEDLE POSITION
TAKE DOWN ROLLER	PROGRAMMED INSTRUCTION CONTROLLED BY STEPPING MOTOR, 32 SECTION LEVELS SELECTION ADJUSTABLE AREA:0-100
PROTECTION SYSTEM	THE MACHINE WILL AUTOMATICALLY ALARM IF YARN BREAKING, FLOAT YARN,REWIND,END OF KNITTING,FAIL OF RACKING,NEEDLE BREAKAGE AND ERROR PROGRAMMING OCCUR ECT.
CONTROL SYSTEM	1,ADOPT LCD SCREEN,INPUT DEVICE:USB,SYSTEM MEMORY 256MB,A GREAT AMOUNT OF DESIGN FILES CAN BE STORED.2,MONITORING MENU,EACH KIND OF OPERATING PARAMETER,CAN BE SHOWN,AND THEY CAN BE ADJUSTED AT ANY TIME WHEN THE MACHINE IS RUNNING.3,DESIGN SYSTEM IS VISUAL AND EASY TO UNDERSTAND AND UPGRAD.4,MULTI LANGUAGE VERSION,THERE ARE CHINESE,ENGLISH ETC.
POWER	220V ,SINGLE-PHASE,HAVE MEMORIZING FUNCTION AT THE POWER-OFF MOMENT

It is an effective, high-quality device that is impossible to miss.
1) The motor model was utilized to optimize the cam structure, which significantly increased the speed of needle transfer.
2) Small carriage, quick return, increased productivity.
3) The fabric's flatness was increased by collaborating with the yarn storge.
4) The needle plate uses a simple construction and the milling flute technology, which enables it to perform with great efficiency after heat treatment.

1.Carriage
The carriage servo rotates at high speed,
The 5.2-inch head is 40mm
less than the previous generation.
When multi-color jacquard,
the production efficiency is greatly improved.
2.Yarn Transportation Device
The active Yarn transportation device
can effectively reduce the resistance
during yam transport.lt is especially
suitavle for yamrns with poor elasticity
or high brittleness,such as cashmere,
rabbit cashmere and other special
yarns,so as to make the fabric
organization uniform and improve the
weaving efficiency of the machine.
3.Oil-adding device
The automatic oiling device can arbitraily set the oiling interval and oilling time in the system to avoid maintenance problems caused by uncertain manual oiling times and fuel volume,and effectively increase
the service life of the machine.
4.Yarn Feeder
The machine is equidpped with 16 yarn feeders. which can automatically adjust the stopping position according to the kintting width.
lt can also automatically fine-tune the yarn feeder stopping position according to the speed of the machine head.
lt has the technical characteristics of fast response and accurate positoning.

We treat each product as if it were a child.
We utilize vacuum packaging to stop moisture and rust so that the product is secure throughout delivery.
Additionally, we offer comprehensive packing strategies in accordance with your needs, which makes loading, uploading, and storing
easier, as well as saving time on checking and delivery.
Ensure that you can obtain the right product at the right time.
