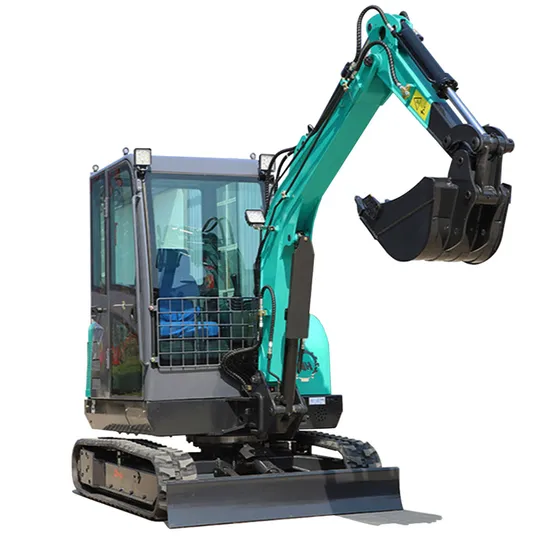

Haitai-7075 Small Excavator for Fruit Farmers

Product Description

product details

Mini Crawler Hydraulic Excavator Tractor Backhoe Excavator Price for Sale
Haitai excavator supports multifunctional operation, quick connection of accessories, excavation, crushing, ditch cleaning, drilling and soil pushing

Excavator features

A compact excavator can easily pass through narrow passages and doors.
2. The excavator's retractable chassis system and bulldozer allow for configuration of the excavator to achieve excellent performance
Work stability and optimal performance.
3. Adopting imported engines and perfectly matched hydraulic systems to provide efficient, economical, and reliable support for the most challenging work of excavators
Performance.
4. The bucket hose is well protected in the boom, and the excavator oil cylinder is installed above the structure.
5. The operating area is spacious, with a comfortable layout and convenient operation.
6. Excellent engines provide excellent power with minimal fuel consumption, thereby improving the productivity of each fuel tank.
Product parameters

Model	HT25S	Engine model	Yangma 3TNV76-P
bucket capacity	0.075m³	engine form	water-cooled inline three cylinder diesel engine
operating weight	2510mm	rated power	20.6PS(15KW)/2200rpm
overall length	3850mm	climbing ability	30°
overall height	2280mm	maximum shaking digging force	22.8KN
overall width	Shrink 1300, extend 1500mm	hydraulic system pressure	22.5mpa
maximum excavation height	3980mm	ground specific pressure	32kpa
maximum unloading height	2660mm	vertical elevator	800kg
maximum excavation depth	2510mm	horizontal lifting force	520kg
maximum excavation radius	4236mm	track width	250mm
minimum front rotation radius	1850mm(1400mm)	track length	1860mm
minimum rear rotation radius	710mm	driving speed (low speed, high speed)	2.6km/h 4.5km/h
and rotation speed	9.5 rpm	fuel tank capacity	28L

Product Features

The characteristics of tracked small excavators:
1. High fuel efficiency and strong power. Low fuel consumption, high configuration, and superior performance.
2. The standard bulldozer can level the site, backfill the soil, and increase stability
Mechanical;
3. Easy to operate, compact and flexible, with convenient transportation, it can be operated in narrow areas, especially
Suitable for orchards such as kiwifruit, vineyards, oranges, navel oranges, trenching, fertilization, weeding, etc.;
4. Arm side moving device: The front of the body is equipped with an arm side moving device. Arms can swing
90 degrees on the left and 50 degrees on the right, truly achieving similar direct excavation work
Reaching the wall root area without frequent physical movement. More suitable for small-scale on-site operations.

Product display

Company strength

1) How old is your factory? We have 20 years of production and nearly 10 years of experience, and we export to over 120 countries and regions. 2) What payment method can you accept? Usually, both T/T and L/C are visible to us. 3) What is the delivery time? Received 7% wire transfer or letter of credit What is your warranty for the next 40 to 30 working days? Usually it takes one year, and if there is a large quantity, we can negotiate. 5) What is your minimum order quantity? Minimum order quantity: 1 set 6) Can you accept OEM services? Yes, my friend. 7) Optional attachments? Remote control, basket, auger, grab, top seat, rear legs
