Mobile Screen Machine Cone Crusher Stone Crushing Equipment for Smaller Scale Granite Quarries Limestone Granite Basalt

Mobile Screen Machine Cone Crusher Stone Crushing Equipment for Smaller Scale Granite Quarries Limestone Granite Basalt

US$16,000.00-25,000.00 1 Set (MOQ)

Basic Info.

Model NO.
DP430S
Installation
Under The Guidance of Engineer
Color
Various;as Required
Warrenty
1 Year
After-Sale Service
Training, Technical Support, etc.
MOQ
1 Set
Input Size
360mm
Output Size
48mm
Object
Coal
Drive
Electric
Crushing Degree
Intermediate Crusher
Crushing Style
Extruding and Milling
Principle
Cylinder Culling
Cutter Material
High-Speed Steel
Finished Surface
Cut Off Tool
Compressive Strength (For Crushing)
250-300MPA
Tongs′ Features
Adjustable Tongs
After-sales Service
1 Year
Warranty
Life-Long Service
Transport Package
International Packing Standard
Specification
ISO, CE, SGS Certificate.
Trademark
TYM
Origin
Henan, China.
HS Code
8474209000
Production Capacity
327t/H

Packaging & Delivery

Package Size
170.00cm * 173.20cm * 165.30cm
Package Gross Weight
66000.000kg

Product Description

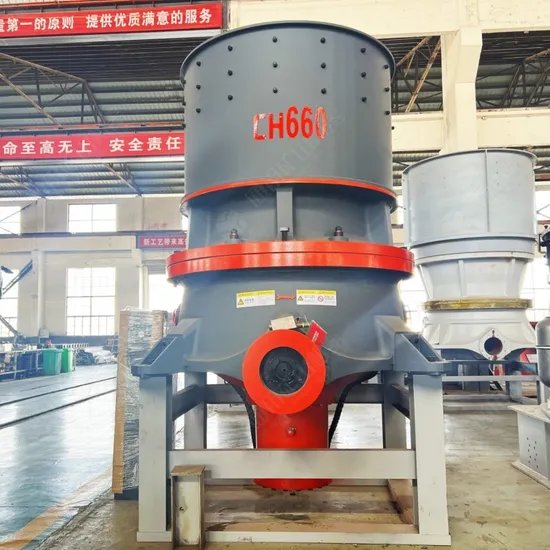

Product Description Single Cylinder Hydraulic Cone Crusher Introduction
Single cylinder hydraulic cone crusher can break or crush all kinds of medium hard or harder ore formining, chemical building, materials and other industrial sectors. This kind of machine has the features of big crushing ratio,continuous operating, even granularity, automated hydraulic clearing system, high capacity, simple structure and low operating cost, suited perfectly for middle and fine crushing.
Working Principle
When the single-cylinder hydraulic cone crusher (single-cylinder cone crusher) works, the motor drives the pinion gear of the crusher, the pinion gear drives the large gear, and the large gear assembly (large gear, large gear holder, eccentric steel bushing) drives the eccentric bushing assembly (eccentric cylinder bushing, eccentric copper bushing) and the main shaft assembly (main shaft, inner cone, inner cone liner) with the theoretical vertical line as the center, and the main shaft assembly in the eccentric copper bushing with the main shaft The spindle assembly can realize the rotation by the center line of the spindle.
When the machine is running empty, the eccentric bushing assembly "holds" the main shaft assembly and rotates along with the large gear.
When the material is added to the crushing chamber, the main shaft assembly (main shaft, inner cone) slowly rotates inside the eccentric bushing under the resistance of the material. The trajectory of the inner cone appears to swing back and forth in the crushing chamber while slowly rotating, and the material is crushed by the swinging inner cone.
The connection between the support sleeve and the frame body is pressed by the hydraulic cylinder. When unbreakable objects such as metal blocks fall into the crusher, the moving cone of the single cylinder is held up by the hydraulic piston at the bottom, which plays the role of discharge port adjustment and over-iron protection, repeatedly rising and falling to exclude blocked ore.
Advantage 1. The dual optimization of the body and cavity, combined with high-quality components, increases the equipment's throughput and production efficiency. 2. The multi chamber design comprehensively meets the needs of two-stage crushing, three-stage crushing, and four-stage crushing. 3. Equipped with a fully automatic control system, the operation is highly automated and easier for users to operate. 4. The integrated design of hydraulic station and lubrication station saves space and enhances equipment stability.
Production Line The material is evenly and continuously conveyed to the jaw crusher by the vibrating feeder, and after being crushed by the jaw crusher, it enters the impact crusher or cone crusher for secondary crushing. Then the crushed materials enter the vibrating screen for sorting, and finally the finished products are output by belt conveyor.
If you would like a quote for the entire line, please click here to contact us.
Application
Our stone Single cylinder hydraulic cone crusher can greatly reduce the operating costs. Single cylinder hydraulic cone crusher is widely used for crushing various materials like stone, granite, trap rock, coke, coal,manganese ore, iron ore, emery, fused aluminum,oxide,fused calcium carbide, lime stone, quartz, alloys. And the Single cylinder hydraulic cone crusher is widely used in mining, metallurgical industry,building material, highway and chemical industry.
Technical parameters
Model Cavity type Max feed size(mm) Feed opening(mm) Capacity
(t/h)
Power
(kw)
Maximum service weight
(kg)
Weight(kg)
DP100S M 170 19-41 85-215 90 2800 7350
DP100 M 105 10-22 55-100 90 2000 5700
MF 85 8-16 45-90
EF 32 6-16 40-75
DP430S EC 360 25-48 126-327 132 5200 12000
C 300 22-48 108-301
MC 235 19-48 91-275
DP430 EC 185 13-38 69-208 132 3000 9200
C 145 13-38 66-197
MC 115 10-32 57-184
M 90 10-32 64-162
MF 75 8-25 61-126
F 50 6-25 48-105
EF 35 5-5.6(80%) 70-90
DP440S EC 450 35-54 267-601 220 8200 19300
C 400 29-51 225-511
MC 300 25-51 195-486
DP440 EC 215 16-44 114-395 220 4800 14300
C 175 13-44 101-378
MC 140 13-38 97-328
M 110 13-38 117-339
MF 85 10-32 114-299
F 70 8-32 90-236
EF 38 6-7.5(80%) 100-125
DP660S EC 560 41-76 349-1050 315 16800 35700
C 500 38-70 318-892
DP660 EC 270 16-51 117-662 315 8600 26800
CX 235 16-51 174-654
C 215 16-51 171-643
MC 175 16-44 162-552
M 135 16-38 197-502
MF 115 13-38 192-451
F 90 13-38 195-401
EF 65 13-22 211-298
DP870 EC 300 22-71 448-1512 500 13200 49800
C 240 19-71 406-1464
MC 195 19-71 380-1373
M 155 19-71 400-1372
MF 100 16-51 379-942
F 90 13-44 357-912
EF 80 10-44 280-775
If you would like to know more about our products, please contact us by clicking here. Our Customers Site Customize solutions according to customer requirements!
We are able to design and manufacture complete crusher plants with capacity from 30tph to 500tph, and to provide optimum and most economical solutions according to customers' requirements on stone specifications, output, application, etc.
This is our stone production line in Bolivian! The customer's requirements:
Raw material: grinite, capacity: 500 tons/hour, finished products: 0-10mm, 10-20mm, 20-30mm.
Equipment configuration: ZSW6000X1300 vibrating feeder, PE1000x1200 jaw crusher, 2 sets HP500 cone crusher, 4 sets 4YZS2470 vibrating screen. Company Information Since in 2004, Zhengzhou General Mining Machinery Co.,Ltd has been the professional manufacturer of Grinding Mill, crushers and sand making machines,etc. TYM is committed to helping more users around the world to obtain higher profits and faster return on value. Our main products are European Version Grinding Mill, Raymond Grinding Mill, High Pressure Suspension Roller Mill, Micro-powder Grinding Mill, Jaw Crushers, Impact Crushers, Hammer Crusher, Compound Crushers, Ball Mill, nine series of products with more than 30 kinds of specifications.
Our factory
Our factory covers an area of 120,000 square meters and manufactures TYM brand Mining Machinery,has passed international ISO:9001, GOST and CE certification.
Packing & Shipping The package of all equipment is accord with the standard protective measures.The packing is suitable for short and long distance transportation. The moisture proof, quake proof, protected against dampness, and rustproof protection measures were taken to ensure the machine shipping to customers safely. All the machine will be packaged by plastic film.
Certifications
Our Services Warranty
100% brand new when leaving the factory. The seller guarantee quality of the machines (excluding wearing parts) for a period of one year from the date of trial run finish under our technician's guidance, but not exceed 15 months from date on which machine leaves the factory.
Pre-sale services:
(1) Device model choice.(2) According to customer's special requirements, design and manufacture of products.(3) Training technical personnel for clients.(4) The company is free of charge to the user on-site engineering and technical personnel planning site for the user to design the best processes and program.
Sale services:
We will send technicians to you for guiding the equipment installation and commissioning and staff training.
Sales tracking :
(1) product acceptance.(2) to help customers develop construction programs.
After-sale services :
(1) Guiding customers' installation.(2) On-site training of operators.(3) Complete sets of equipment installed, 1-2 full-time technical staff to stay free of charge to help customers on-site production of 1 month, until the user' satisfaction.
