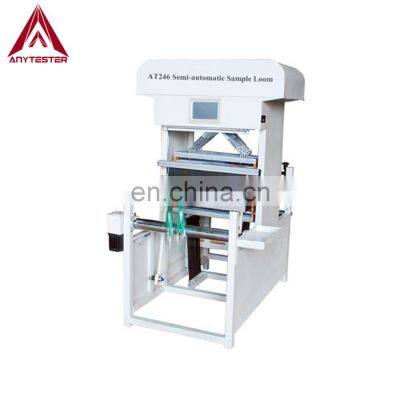

20 inches Lab Semi-automatic Sample Loom with PLC control

Product Description

Product Description
Product Description
AT246 Series Semi-automatic Sample Loom is used for sample weaving of all kinds of fabrics, such as cotton, hair, jute, silk, chemical fiber, blending, etc. It consists of shedding mechanism, weft insertion mechanism, beating-up mechanism, take-up mechanism, let-off mechanism, weft selection mechanism, electrical control mechanism, etc. It is widely used in weaving mills, scientific research units, textile institutes and foreign trade companies, etc.
Specification

Model	AT246A	AT246B
Reed width	20 inches
Color selection	manual
No. of heald frame	16 (20 or 24 optional)
Take-up	manual	Automatic
Beating-up	manual
Heald lifting	PLC control, pneumatic
Air pressure	0.45~0.8MPa
Air consumption	200L/min max.
Power supply	1 phase, 220V, 50Hz
Dimension	1300×980×1510mm

Details & Features
★Integrally welded by seamless rectangular steel pipe, reasonable construction and good rigidity;★Machine surface adopts electrostatic spraying and automobile lacquer handling, good brightness and nice appearance;
★Adopting pneumatic shedding mechanism to avoid the disadvantage of easy to wear for traditional peg mechanical structure;
★With weft-density can be settable and equipped with automatic correction function
★Warp Let-Off by constant tension aerodynamic damped, and attached with electromagnetic brake mechanism
★Stable operation, low noise and high reliability;
★PLC control touch screen, storing 6pcs of pattern cards and 1000 lines reachable for each pattern card;
★With computer interface to achieve the communication between PC and PLC.
Our Company
History
Since 1982 with more than 20 years’ experience
Warranty
Two Year Warranty for whole product
Training
Video and user manual for training
Onsite service
Installation and training service is available
Testing service
Free sample testing before order is available
Lead time
15 working days lead time for most product
Packing & Delivery

Packaging
Dimensions	1300*980*1510mm (LWH)
Weight	Approx. 200kg
Packaging Details	1. The equipment is covered with film is protect it from water vapour during the trip.  2. The box is filled with foam to protect the equipment from impact.  3. Exported wooden box made from plywood, don't need fumigated.

Payment

Payment Term	T/T	EXW	30% T/T in advance, paid the balance before shipment
					FOB
				CFR(C&F)	30% T/T in advance, paid the balance against copy of B/L
				CIF
		L/C	L/C amount above 50,000 usd, we can accept L/C at sight
		West Union	Amount lower than 5000usd
		West Union
Delivery Time	7~10days after receiving payment for one container
