Wholesale Customized 4uy-110 Wheel Type Walking Mode Combine Small Multifunctional Herb Harvester

Product Description

Product Description
Herb Harvester
The herb harvester is an agricultural machinery specially used for harvesting medicinal plants. It uses mechanized operation methods to achieve efficient and accurate harvesting of herbs, thereby improving the efficiency and quality of herb harvesting. Herb harvesters usually have the ability to adapt to different types of herbs and growth environments, and can meet the diverse needs of agricultural production.
Herb harvesters have the characteristics of high efficiency, precision and environmental protection. Its high efficiency is reflected in the ability to significantly shorten the operation cycle, reduce crop losses caused by weather changes, and increase the harvesting area per unit time. Precision is achieved by integrating sensors and big data analysis technology to automatically adjust harvesting parameters according to the growth status of herbs and field environment data to achieve precise operation.
Herb harvesters are widely used in the field of herb planting, which can effectively improve the harvesting efficiency and quality of herbs and reduce labor costs. With the continuous advancement of technology, its application scope is also gradually expanding. For example, cross-field applications in orchards, tea gardens, forestry, and other fields have promoted the coordinated development of related industries.
Product Parameters

4UY-90 PARAMETER LIST
NO	PROJECT	DESIGN VALUE	NO	PROJECT	DESIGN VALUE
1	Structural Style	Three Point Suspension	9	Matched To The Power Output Shaft Speed	540r/min
2	Walking mode	Wheel Type	10	Matching Hanging Width	705mm
3	Working Size (length*width*height)	2760*1180*1330 (adjustable)mm	11	Blade Material	65Mn
4	Transport Dimensions (length*width*height)	2450*1180*1330mm	12	Digging Depth Adjustment Range	0-400mm
5	Overall Weight	560kg	13	Depth Limiting Mechanism Type	Depth Roller
6	Working Width	900mm	14	Conveyer Type	Double Grid Chain Type
7	Operation Efficiency	Estimated at 0.167 ha/h	15	Conveyor Chain Clearance	75/55mm
8	Supporting Power/Machine Horsepower	70~100(Bridge) Horsepower	16	Chain Bar Material	55CrSi
Note:The values in the specification table are theoretical values,please refer to actual values.

4UY-110 PARAMETER LIST
NO.	PROJECT	DESIGN VALUE	NO.	PROJECT	DESIGN VALUE
1	Structural Style	Three Point Suspension	9	Matched To The Power Output Shaft Speed	540r/min
2	Walking mode	Wheel Type	10	Matching Hanging Width	705mm
3	Working Size (length*width*height)	2760*1380*1370 (adjustable)mm	11	Blade Material	65Mn
4	Transport Dimensions (length*width*height)	2450*1380*1330mm	12	Digging Depth Adjustment Range	0~400mm
5	Overall Weight	650kg	13	Depth Limiting Mechanism Type	Depth Roller
6	Working Width	1100mm	14	Conveyer Type	Double Grid Chain Type
7	Operation Efficiency	Estimated at 0.167 ha/h	15	Conveyor Chain Clearance	75/55mm
8	Supporting Power/Machine Horsepower	80~100(Bridge) Horsepower	16	Chain Bar Material	55CrSi
Note:The values in the specification table are theoretical values,please refer to actual values.

4UY-130 PARAMETER LIST
NO.	PROJECT	DESIGN VALUE	NO.	PROJECT	DESIGN VALUE
1	Structural Style	Three Point Suspension	9	Matched To The Power Output Shaft Speed	540r/min
2	Walking mode	Wheel Type	10	Matching Hanging Width	800mm
3	Working Size (length*width*height)	2760*1580*1370 (adjustable)mm	11	Blade Material	65Mn
4	Transport Dimensions (length*width*height)	2450*1580*1330mm	12	Digging Depth Adjustment Range	0~400mm
5	Overall Weight	780kg	13	Depth Limiting Mechanism Type	Depth Roller
6	Working Width	1300mm	14	Conveyer Type	Double Grid Chain Type
7	Operation Efficiency	Estimated at 0.267 ha/h	15	Conveyor Chain Clearance	75/55mm
8	Supporting Power/Machine Horsepower	100~120(Bridge) Horsepower	16	Chain Bar Materia	55CrSi
Note:The values in the specification table are theoretical values,please refer to actual values.

4UY-160 PARAMETER LIST
NO.	PROJECT	DESIGN VALUE	NO	PROJECT	DESIGN VALUE
1	Structural Style	Three Point Suspension	9	Matched To The Power Output Shaft Speed	540r/min
2	Walking mode	Wheel Type	10	Matching Hanging Width	800mm
3	Working Size length*width*height)	2760*1880*1370 (adjustable)mm	11	Blade Material	65Mn
4	Transport Dimensions (length*width*height)	2450*1880*1330mm	12	Digging Depth Adjustment Range	0~400mm
5	Overall Weight	850kg	13	Depth Limiting Mechanism Type	Depth Roller
6	Working Width	1600mm	14	Conveyer Type	Double Grid Chain Type
7	Operation Efficiency	Estimated at 0.3 ha/h	15	Conveyor Chain Clearance	75/55mm
8	Supporting Power/Machine Horsepower	100~140(Bridge) Horsepower	16	Chain Bar Material	55CrSi
Note:The values in the specification table are theoretical values,please refer to actual values.

4UY-180 PARAMETER LIST
NO.	PROJECT	DESIGN VALUE	NO.	PROJECT	DESIGN VALUE
1	Structural Style	Three Point Suspension	9	Matched To The Power Output Shaft Speed	540r/min
2	Walking mode	Wheel Type	10	Matching Hanging Width	800mm
3	Working Size (length*width*height)	2760*2080*1370 (adjustable)mm	11	Blade Material	65Mn
4	Transport Dimensions (length*width*height)	2450*2080*1330mm	12	Digging Depth Adjustment Range	0~400mm
5	Overall Weight	900kg	13	Depth Limiting Mechanism Type	Depth Roller
6	Working Width	1800mm	14	Conveyer Type	Double Grid Chain Type
7	Operation Efficiency	Estimated at 0.333 ha/h	15	Conveyor Chain Clearance	75/55mm
8	Supporting Power/Machine Horsepower	≥140(Bridge) Horsepower	16	Chain Bar Material	55CrSi
Note:The values in the specification table are theoretical values,please refer to actual values.

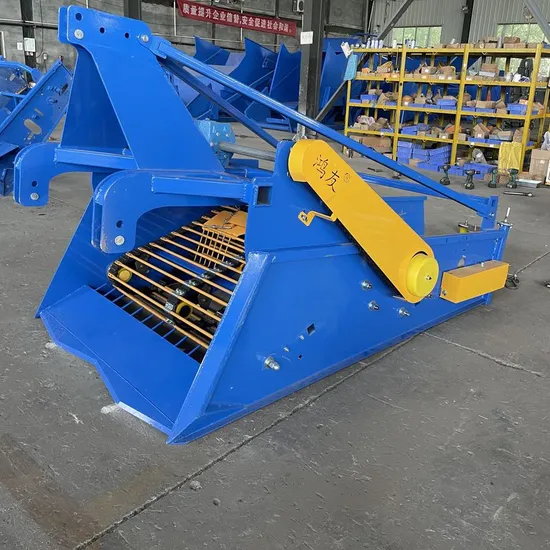

Detailed Photos
MULTIFUNCTIONAL HARVESTING:
This machine is designed to harvest multiple crops, including potatoes, sweet potatoes, and peanuts, making it an ideal investment for farmers with diverse agricultural needs.
RELIABLE PERFORMANCE:
The machine features a gear drive system and a powerful motor, ensuring reliable performance and durability in various farming conditions.
SUITABLE FOR VARIOUS FARM SIZES:
This harvester is suitable for farms of all sizes, including small, medium, and large-scale operations, making it a versatile addition to any agricultural operation.
OUR ADVANTAGE:
1.It features working efficiency, lower breakage rate, and lower skin break rate.
2. Light & quick running without vibration, no blocking by the grasses, leaks the soil quickly, lower buried potato rate.
3. The penetrating angle of the excavating device is the same as the elevation angle of the transfer & separate device. It effectively solves the problem of soil accumulation after shoveling.
4. Matching power is the common four-wheel tractor, it features wide adaptation, strong applicability, low investment, and ease of operation.
OUR FEATURE:
1. Single-row potato harvester machine for sale can be used in various tubers harvest, such as potato, sweet potato, peanut, garlic, and so on.
2. This Single-row potato harvester machine for sale has high efficiency, low breaking rate, and fast working speed without vibration.
3.The Single-row potato harvester machine for sale has no block grass & soil leakage fast, simple structure & durable.
