Sby-2250X10 Ten Shuttle Circular Loom for Woven Bag/ Tarpaulin Fabric

Product Description

Sby-2250X10 Ten Shuttle Circular Loom for Woven Bag/ Tarpaulin Fabric
Descripition:
This series of ten shuttle circular loom is used for weaving PP/PE flat yarn to be woven fabric in roll, it can weave different quality flat yarn even complete recycled material. Reasonable design, proper structure, easy operation, convenient maintenance,low power consumption and high efficiency etc.
Feature:1. Sensitive automatic stop with the intelligent detector for warp-breaking,weft-breaking and weft-ending2. Rimless wheel shuttle style, less friction, more steady running;3. New weft automatic feeding system, reducing waster;4. Adopts the latest energy saving synchronous motors to control the winder,main frame and fabric lifting roller to be synchronized, when the loom stops,the winder stops at the same time with no harm of rubber sheet of winder roller and the fabric, also avoid less density of fabric which is usually caused by restarting the loom after stop.5. Adopts the latest energy saving synchronous motors to adjust the weft density and comcensate the weft density in case of weft-breaking,that improve the evenness smooth of woven fabric.
Main technical Datas:

ltem	SBY-2250x10S
Number of shuttles(pcs)	10
Revolutions (Max.)	70rpm
Weft insertion	700ppm
Working width/double flat	1700-2250mm
Number of warp tape	2520pc
Warp/weft core inside diameter	Φ32-38mm
Warp/weft core length	220-230mm
Weft bobbin diameter(max)	115mm
Main motor power	11Kw
Max.roll diameter	Φ1200mm
Dimensions	18000x4000x4500mm
Weight	8T

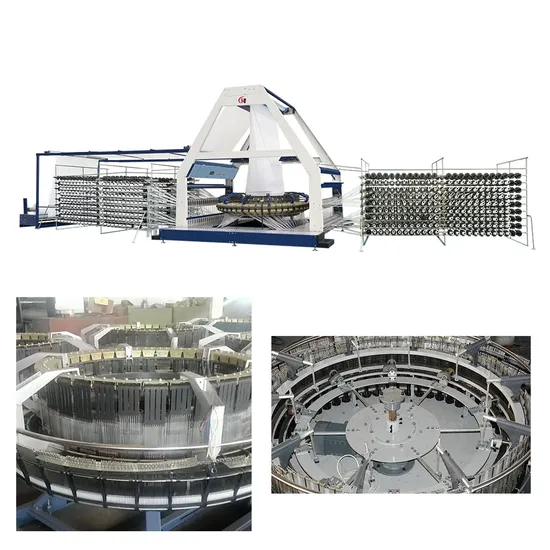

Machine details:
Company Information:
FAQ:
1. Are you trading company or manufacturer?
We are manufacturer, and also provide the business solution to all the friends.
2. What's payment terms you accept?
The buyer make the 30% deposite, the 70% balance will be paid by TT within 7 days before delivery or the buyer open 100% irrevocable L/C at sight as the appointed bank of the seller.
3. What's the delivery time?
The seller will arrange shipment within 90 working days once confirm the order.
4. How to install and debug the machine after arrival?
We will provide instructions and installation videos. If the Buyer needs engineers to install in the local area, the buyer should pay USD150 per day for subsidy of engineers and afford the charge of daily life(including the daily meal, traffic and hotel) in the locus of buyer and return tickets from China to User's factory.
5. Does it easy to operate and what can i do if it doesn't work?
First, our machine is stable and easy to operate by one man, what you do is just learn some basic thing. And we will sent you manual and video, we suggest you to come to visit our factory to learn more thing by yourself, and if there is something goes wrong, you can call us, video-chat, email us. And we will give solutions within 36 hrs. Our engineer also can be distributed to overseas as you required.
6. How long is your machine's warranty period?
Seller warrants the products for 13 months from the B/L date.
