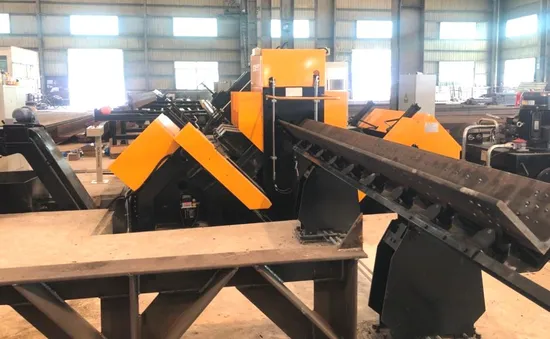

CNC High Speed Angle Steel Marking and Drilling Line in Power Tower and Communication Tower, Bl3635, Angle Size 360*360*35mm
| US$70,000.00-80,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
BL3635
Structure
Vertical Drilling Machine
Layout
Vertical
Controlling Mode
CNC
Number of Shaft
6
Hole Diameter
<50mm
Automatic Grade
Automatic
Precision
High Precision
Certification
GS, CE
Condition
New
Number of Drilling Head in Every Sid
3
Spindle Model
Bt40
Max. Drilling Diamete
26mm
Spindel Speed
180-3000rpm
Typing Force
1030kN
Qty. of Marking Characters
15
Character′s Size
14*10*19mm
Transport Package
Suitable for Export Transportation
Specification
360*360*35mm
Trademark
SAFETY
Origin
China
HS Code
8459210000
Production Capacity
20units Per Year
Product Description
CNC high speed Angle steel marking and drilling line, CAD2532,CAD2532A,CAD3635,CAD3635AApply scope:
The production line is suitable for power tower,communication,steel structure bar marking and drilling.
Technical parameters:
| Модель | BL2532 | BL3635 | ADM2532 | ADM3635 | CDP3635 | |||
| Processing size | Min. Angle size (mm) | L140´140´10 | ||||||
| Max. Angle size (mm) | L250´250´32 | L360´360´35 | L250´250´ 32 | L360´360´35 | L360´360´35 | |||
| Max. Angle length(mm) | ||||||||
| Drilling spindle | mber of drilling head in every side | 3 | ||||||
| Spindle model | Morse #4 | BT40 | ||||||
| Max. Drilling diameter(mm) | Æ26 | Æ40 | Æ26 | |||||
| Spindel speed (rpm) | 180 - 560 | 180 - 6000 | ||||||
| Adjustment range of distance between hole and back line of angle(Axis-Y in side A and B) | 20-220 | 20-340 | 50-220 | 50-330 | 50-330 | |||
| Typing ability | Typing force(KN) | 1030 | ||||||
| Group number for marking | 1 | |||||||
| Qty. Of marking characters | 15 | |||||||
| Character's size(mm) | 14*10*19 | |||||||
| Feeding speed(m/min.) | 30-80 | 30-80 | 40-80 | 40-80 | ||||
| Feeding way | Trolley servo feeding | |||||||
| Processing accuracy | Accord with GB2694-2010 | |||||||
| Programming mode | Input the parameters by software or CAD drawing transfer | |||||||
| Function of program | Real-time monitoring, Fault display, Fault alarm , etc. | |||||||
| Dimension (L*W*H) (m) | 29*8.9*2.5 | 29*8.9*2.5 | 30*7.5*3 | 33*9*3 | 29*8.5*3 | |||
Product structure characteristics:
The machine is mainly composed of lateral feed table,overturn feeding,feed channel,CNC trlley marking,typing unit,drilling
unit,press unit,finished material channel,hydraulic system,pneumatic system,control system and so on.
1.The use of numerical control technology,servo motor feeding,high efficiency,stable operation.
2.Key hydraulic,pneumatic,electrical components all use of domestic and international famous brand.
3.Programming simple program data and can be used directly lofting software generated.
4.Poftware for the English interface,easy to operate,can display the working graphics.
5.Feeding,marking,drilling,and unloading are automatically carried out.
6.Simply input the workpiece size.hole distance.stadia.the number of jobs.work procedures or directly using the CAD/CAM
software to generate the lofting.
7.The machine have material support and vertical pressing device can adapt to bent angle.
8.With no cutting function,you can set the size of the material.
9.Fault self diagnosis function.
10.The user can choose to add the shear unit,and the shear unit is a double edge shear.
