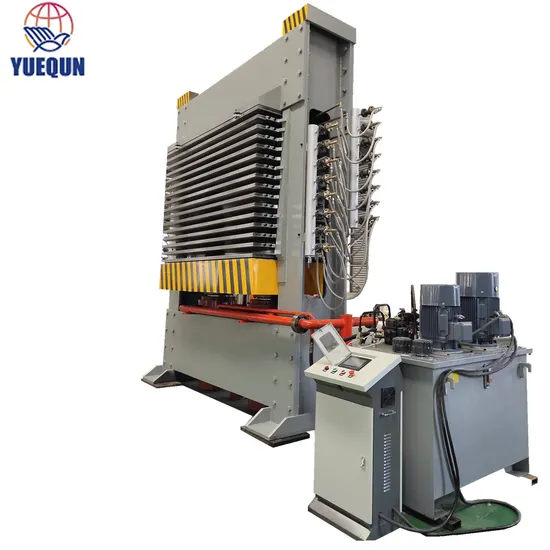

Factory Price Hydraulic 15 Layers 600t Hot Press for Plywood Making Machine
| US$32,000.00 | 1 set (MOQ) |
Basic Info.
Type
Hot Press Machine
Automatic
Automatic
Certification
CE, ISO
Place of Origin
Shandong, China
Voltage
380V
Applicable Industries
Manufacturing Plant, Plywood Machinery
Power (Kw)
26
Application
Plywood Production
Condition
Condition:
Dimension(L*W*H)
3550*1370*4200mm
Weight (Kg)
35000 Kg
Key Selling Points
High-Accuracy
Hot Platen Size
2700*1370*42mm
Transport Package
in Nude
Specification
500 tons
Trademark
Yuequn
Origin
China
Production Capacity
30 Set / Month
Product Description
duct Description| Model | YQHP4X8/500/15 |
| Max pressure | 500 Tons |
| Board feeding direction | Transverse |
| Layers | 15Layers |
| Layer spacing | 70mm |
| Number of hot press plate | 16pcs |
| Hot press plate size | 2700*1370*42mm |
| Cylinder | 2*ø360mm*1050mm |
| | 1*ø180mm*1050mm |
| Stroke | 1050mm |
| Compression resistance | ≤25 Mpa |
| Total Power | 7.5KW+18.5kw |
| Low pressure pump flowing | 250ml/r*1pcs |
| high pressure pump flowing | 10ml/r*1pcs |
| Overall dimension | 3550mm*1370mm*4650mm |
| Working methods | Full |
| Composite frame | Assembled |
| Upper and bottom beam | 900mm |
| Middle beam | 400mm |
| Thickness of the frame | 35 mm |
| Weight | About 33Tons |
Pre-sale service
1) Provide the free consultation of equipment
2) Provide the standard device and the flow chart
3) According to the clients' special requirement ,offering the resonable plan and free design to help to select the equipment .
4)Welcome to visit our factory
Service during the sales
1) Inspect the machine before leaving the factory
2) Oversea install and debug the equipment
3) Train the first-line operator
After sales service
1) 24 hours online service
2) Provide the VIDEO with install and debug the equipment
3) Provide technical exchanging
