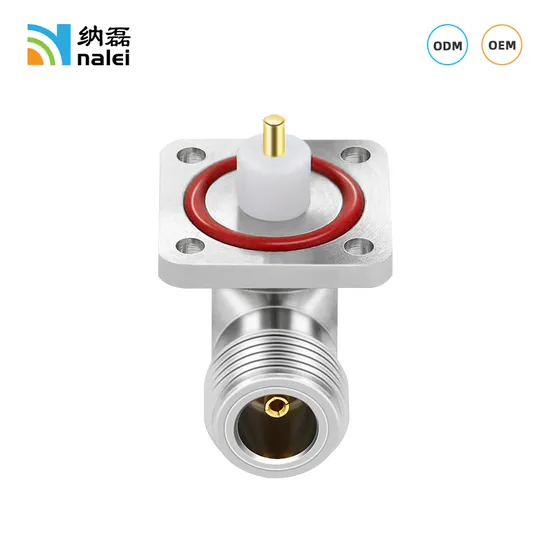

Nalei DC-6g N Type Female Right Angle with Flanged RF Coaxial Connector N-Kwfd Panel Mounting Four-Hole Internal Guide Welding

Product Description

Product Parameters
Preferred Materials,Compliant with Standards
1.Pure Brass is used as the Substrate, and the Shell is Treated with Nickel Plating, Which has Good Wear Resistance.
2.Threads and Inner Conductors are Strictly Measured and Produced According to International Standards to Achieve non-Destructive Interconnection and Reduce Joint Wear.
3.Body:Brass,Ternary alloy plated.
4.Inner Contact:Tin Brone,Gold plated.
5.Insulator:PTFE.
6.Silicone Rubber.Precision Machining,Process Specification
1.Pure Brass is used as the Substrate, and the Shell is Treated with Nickel Plating, Which has Good Wear Resistance.
2.Threads and Inner Conductors are Strictly Measured and Produced According to International Standards to Achieve non-Destructive Interconnection and Reduce Joint Wear.
3.Body:Brass,Ternary alloy plated.
4.Inner Contact:Tin Brone,Gold plated.
5.Insulator:PTFE.
6.Silicone Rubber.Factory Inspection,Stable Performance
1.Pure Brass is used as the Substrate, and the Shell is Treated with Nickel Plating, Which has Good Wear Resistance.
2.Threads and Inner Conductors are Strictly Measured and Produced According to International Standards to Achieve non-Destructive Interconnection and Reduce Joint Wear.
3.Body:Brass,Ternary alloy plated.
4.Inner Contact:Tin Brone,Gold plated.
5.Insulator:PTFE.
6.Silicone Rubber.Withstand a Variety of Harsh Environment Verification
1.It can be Customized According to Customer Application Scenarios.
2.RoHS (Compliant).
3.Temperature Range (-40ºC~+85ºC).
4.Salt Mist (IEC 60068-2-11 (72H or Customized)).
5.Protection Class (IP65).
6.Durability (500 cycles).
7.Reference Standards (IEC 60169-16).

Industry-specific Attributes
Type	N Type RF Connector
Applicaton	RF, Microwave
Origin	Nanjing,China
Certification	ISO9001,ROHS,CE
Customization	Available
Trademark	nalei
Product Description
Product Name	N Type Female Right Angle with Flanged Coaxial Connector
Model	N-KWFD5-L34-F01
Material and Plating
Body	Brass,Ternary alloy plated
Inner Contact	Tin Brone,Gold plated
Insulator	PTFE
Silicone Rubber
Electrical Characteristics
Impedance	50 Ω
D/C	6 GHz
Frequency Range	DC-6 GHz
Insertion Loss	≤ 0.25dB
VSWR	≤ 1.2
Dielectric Withstanding Voltage	≥ 1000V
Insulator Resistance	≥ 5000MΩ
Center Contact Resistance	≤ 5.0MΩ
Outer Contact Resistance	≤ 2.5MΩ
Temperature Range	-40ºC~+85ºC
Durability	500 cycles
Environmental and Mechanical Specifications
RoHS	Compliant
Sealing Class	IP65
Thermal Shock	IEC 60068-2-3
Vibration	IEC 60068-2-6
Salt Mist	IEC 60068-2-11(72H or Customized)
Reference Standards	IEC 60169-16

Product Application Areas

Packaging & Shipping

Packaging & Delivery
Transport Package	BOX / Carton
Package Size (For Reference Only)	30.00cm * 20.00cm * 8.00cm
Package Gross Weight (For Reference Only)	0.500kg
Production Capacity	10000 Piece/Pieces Per Week
Port	NANJING/SHANGHAI,CHINA
