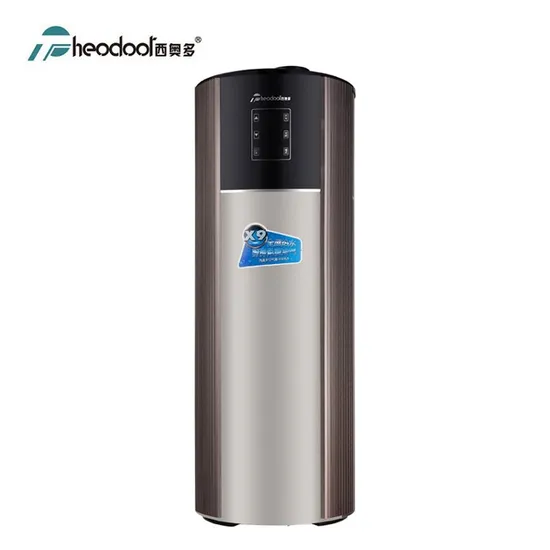

X9 WiFi Control Heat Pump Heater Hybrid Air Source Water Heater

Product Description

X9 series Air to water heat pump -Hybrid air source water heater:
Intelligent WIFI control
Prepare hot water for you in advance before you go home
Free cool air
Provide free kitchen air conditioning while producing hot water
Healthy bath
Smart operation
Multi-mode of energy saving and fast heating by one button switch
Intelligent water heating, healthy bath
kitchen air conditioning
Provide free kitchen air conditioning while producing hot water. One machine dual-use. Energy saving and comfortable.
Smart control
Use your mobile phone to control home water heater anytime and anywhere; three heating modes: AUTO, ECO (economic) and HEATER (fast heating).
Superior materials
Apply Panasonic compressor which is special used for air source heat pump. External aluminum alloy high efficient heat exchange coil. Car painting and wire drawing cover. The 360 degree supercharged foaming thickness reaches 50mm polyurethane insulation layer.
Constant temperature and healthy
Intelligent defrost, unique technology of resistance mixing water provides constant temperature. The super thick inner tank is made of food grade 304 stainless steel. Built in magnesium anode rods to sterilize and prevent water tank from scaling.
1. Double energy system by air source technology and smart electric water integrated technology.
2. All in one design, easy installation, save space.
3. Save energy, saving more energy by 70% comparing with ordinary water heater.
4. Protecting Environment. There isn't any burning gas from the water heater. The refrigerant won't contaminate the ozonosphere. So it benefits the society.
5. Supply water anytime, and not be affected by geographical and weather changing.
6. Intelligent WIFI control, the water temperature can be adjusted as needed and controlled by micro-computer automatically.

Model	RS-3.6FA/260L	RS-3.6FA/300L	RS-3.6FAD/150L	RS-3.6FAD/190L	RS-3.6FAD/260L	RS-3.6FAD/300L	RS-4.2FAD/260L	RS-4.2FAD/300L
Rated Input Power	0.8 KW	0.8 KW	0.8 KW	0.8 KW	0.8 KW	0.8 KW	1.2 KW	1.2 KW
Rated Heating Capacity	2.8 KW	2.8 KW	2.8 KW	2.8 KW	2.8 KW	2.8 KW	3.8 KW	3.8 KW
Rated Current	3.6A	3.6A	3.6A	3.6A	3.6A	3.6A	5.5A	5.5A
Power Supply	220V~240V / 50Hz		220V~240V / 50Hz				220V~240V / 50Hz
Outlet water temperature	55 degrees		55 degrees				55 degrees
Water output capacity	77L/H	77L/H	77L/H	77L/H	77L/H	77L/H	90L/H	90L/H
Capacity of Water Tank	260L	300L	150L	190L	260L	300L	260L	300L
Electric Heater Power(EHP)	\		2KW				2KW
Auxiliary heater ampere	\		9.1A				9.1A
Electricity Water capacity	\		41L/H				41L/H
Refrigerant	R410A / R134a
Compressor	Panasonic
Condenser	Stainless steel coil /External coil
Evaporator	High efficiency finned heat exchanger
Solar Coil	Available for 190L , 260L and 300L
Size(mm)	650X1760	650X1890	650X1350	650X1485	650X1760	650X1890	650X1760	650X1890
Net Weight (Kg)	98	110	72	83	98	110	98	110
Noise (dB)	46	46	46	46	46	46	50	50
Water connection	3/4	3/4	3/4	3/4	3/4	3/4	3/4	3/4
