Medium-Duty Rotary Cultivator, Light Rotary Tiller, Heavy Variable Speed Type Rotary Tiller

Product Description

Product Description

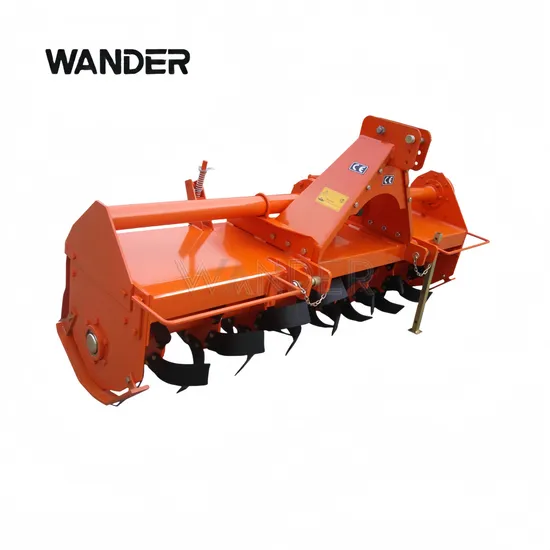

This Light rotary tiller TLM model is equipped with a high-strength steel cutterhead and a cutting edge with optimized angle design, ensuring that each rotation can penetrate deep into the soil layer and thoroughly crush hard blocks, making the soil structure more porous and breathable.
Meanwhile, by adjusting the depth control lever, users can adjust the tillage depth according to their actual needs to meet the planting requirements of different crops.
Boasting a more potent engine than lightweight counterparts, a medium-sized rotavator demonstrates exceptional prowess in handling extensive areas and challenging soil circumstances with remarkable efficiency.
Its engine typically delivers a horsepower ranging from 20HP to 120HP, ensuring rapid and thorough soil tilling.Crafted with robust materials and high-quality components, this rotavator is engineered to withstand the demanding conditions of daily agricultural use.
The frame is constructed from reinforced steel, and the tines are made of 60SI2MN, capable of withstanding continuous operation without significant wear and tear. Research indicates that these machines have an average lifespan of over 10 years when properly maintained, providing a long-term investment for farmers.

Medium-duty rotary cultivator TM Series
A heavy-duty rotavator is a formidable piece of equipment designed for farmers who require unmatched power, durability, and efficiency in soil preparation for their large-scale farming operations.
High power mid mounted gearbox: Equipped with a high-power mid mounted gearbox, it can easily cope with various extreme soil conditions, whether it is hard clay or sandy soil, ensuring the best working effect.

	Model	Working Width(cm)	PTO Turning Speed	Number of Blades	Tilling Depth (cm)	Fitted Power (hp)	Net Weight(kg)	Package Size (cmxcmxcm)
Light rotary	TLM-85	85	540rpm	16	8-13	18	130	105x73x73
	TLM-95	95		16		20	138	115x73x73
	TLM-105	105		20		22	148	125x73x73
	TLM-115	115		24		22-25	158	135x73x73
	TLM-125	125		28		25-30	168	145x73x73
	TLM-135	135		28		30-35	178	155x73x73
Medium -duty rotary	TM-120	120		24/36		25-30	175	145x73x73
	TM-130	130		28/42		30-35	185	155x73x73
	TM-140	140		28/42		30-35	200	165x73x73
	TM-150	150		32/48		35-40	210	175x73x73
	TM-160	160		32/48		40-45	240	185x73x73
	TM-170	170		36/54		45-50	260	195x73x73
	TM-180	180		36/55		50-55	290	205x73x73
Heavy variable speed type	TH-190	190		42	10-20	55-65	410	212x95x73
	TH-200	200		48		65-75	440	222x95x73
	TH-210	210		48		75-85	470	232x95x73
	TH-220	220		54		85-95	500	242x95x73
	TH-230	230		54		95-105	530	252x95x73
	TH-240	240		54		105-115	560	262x95x73

Three Kinds of PTO Shaft to choose:
Other Rotary Tillers options available :
Rotary Tillers TL Series:
