Granite Marble Stone Edge Bridge Saw Cutting Machine Infrared Laser 4 5 Axis Stone Chamfer CNC Cutting Machine Bridge Cutter

Product Description

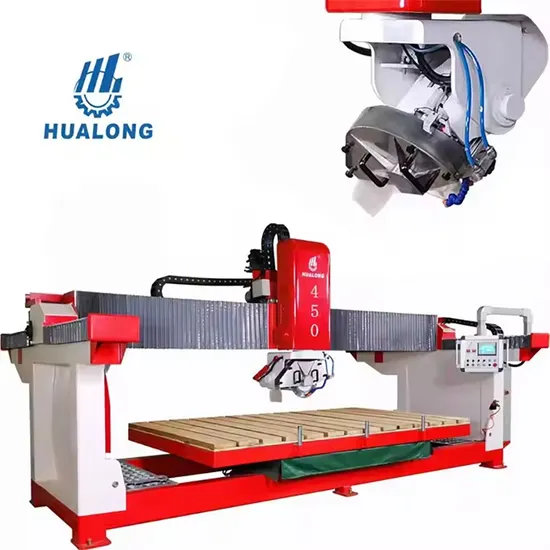

Hualong HLSQ-450 is a monoblock Automatic Bridge Stone Cutting Machine with Siemens PLC controller with 3 interpolated axis, +/-270° rotatable head and a fully tiltable/rotatable table, is digitally programmable and sutable for cutting slab of grainte, marble, quartz and other natural or engineered stones to size, usually used to process kitchen countertops, bathroom vanity, floor tiles and step slabs. It is available to produce shapes like round, rectangular or other irregular shapes by adjusting both the cutter and the worktable.
* HLSQ-450 is a basic model of bridge saw for stone processing also ecnomical practial and easy to operate with digital intelligence.
* Fully warranty is provided.

TECHNICAL DATA HLSQ-450
Configuration	Diameter of saw blade	mm	Φ400 - Φ450
	Dimension of working platform	mm	3300 x 2000
	Power of main motor	kw	15
	Power of tool slide reciprocating motor	kw	1.1
	Power of crossbeam shifting motor	kw	1.5
	Power of hydraulic station motor	kw	2.2
	Power of elevator motor	kw	1.5
	Gross power	kw	21.3
Main Performance Parameters	Max. length of horizontal cutting	mm	3300
	Max. thickness of cutting	mm	90
	Max. lifting travel of cutter	mm	300
	Water consumption	m3/h	2
Measurement	Gross weight	kg	5400
	Dimension (L x W x H)	cm	5700x3260x2765

Main Features
1) Monoblock structure for easy transport, installations and no foundation needed.
2) Siemens, Schneider electric and other high quality accesories such as Hiwin linear guide are adopted.
3) 0°, 90°, 180° and 270° automtaic head rotatation and blade positioning.
4) Blade can tilt 45° automtically for chamfering cutting.
5) Automatic cross cutting repeatedly so easy by pushing one-button.
6) Manual cuts available for simple machining
7) Worktable can rotate 0-360°, pause at every 45° automatically or stop at any degree by remote control.
8) Worktable can tilt 0-85°, easy for slab loading.
Configuration Details:
Our Service
·All of our machine will be full-checked and tested by our quality control department before shipment.
·Lifetime technology maintenance in free
·Spare parts supply in free due to our defects within 12 months' warranty time and at cost out of 12 months.
·Free training for installation, operation and maintaince.
·Technical support all working days.
·English version 'instruction books', "Operation Manual" will be offered.

Packaging & Loading
1)All parts wrapped by waterproof PE film and/or air bubbles.
2)Spare and accessary parts of small size packed in plywood cartons.
3)With steel ropes to fix in container, anti-skid suitable for long distance shipment.
FAQ
Q1: Do You Offer Free Samples?
A1: Normally we don't offer free samples. But further solutions will be discussed respectively upon request.
Q2: Can You Supply Us Wearing Parts For The Bridge Cutting Machine?
A2: Sure, it is our duty.
Q3: How About The Delivery Time After Payment For The Order?
A3: Normally 25-45 days. It depends on the ordered models, quantity and our production duty engaged already.
Q4: What Service Can You Provide?
A4: Online technology support, engineers arranged to overseas for guiding machine installation training operation, debugging and maintenance.
