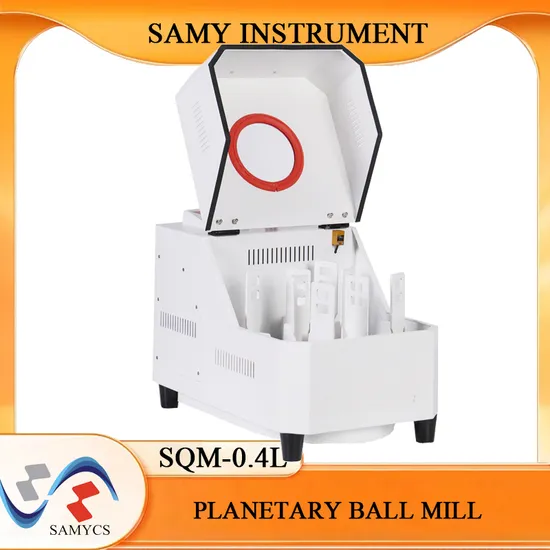

0.4L Fully Automatic High-Speed Laboratory High-Purity Powder Sample Grinder Ball Mill

Product Description

0.4L Fully Automatic High-Speed Laboratory High-Purity Powder Sample Ball Mill Grinder Product Description
SQM-0.4L oil-sealed planetary ball mill is an essential device for mixing, fine grinding, sample preparation, nano-material dispersion, new product development and small batch production of high-tech materials.
Product Features
1. The windows for you to see and control the grinding process better, one in the front of the machine and another on the top of the machine.
2. Back and side radiating holes for better heat dissipation and so as to prolong the machine working life.
3. With small size, light weight, low noise.
4. Can be operated continuously, one-way running, automatic positive and reverse continuous and regular operation.
5. Can be dry grinding, wet grinding, vacuum grinding, protection of the atmosphere.
6. Main belt tightness adjustable, long-term use is not easy to slip, greatly extended the service life.
7. The planetary ball mill appearance original box clamshell (or open), easy to operate, cover with safety switch, safe and reliable. Compact structure, beautiful shape, greatly reduce the weight, the whole machine is fully integrated.
8. Adopts the complete rolling friction drive between the metal wheel and the abrasive wheel. The noise and wear to the minimum, and the operation and operation of the gear type ball mill may not appear the phenomenon of breaking and damage, greatly extended the operation of the stability and service life.
Working Principle
Planetary Ball Mill has four ball grinding jars installed on one turntable. When the turntable rotates, the jar axis makes planetary movements, the balls and samples inside the jars are impacted strongly in high speed movement, and samples are eventually ground into powder. Various kinds of different materials can be ground by the mill with dry or wet method. Minimum granularity of ground powder can be as small as 0.1μm.
Product Application
1. Agricultural
Plant material, seed, soil, tobacco, wood fiber
2. Biological
Bones, hair, paper towels
3. Ceramic and glass
Ceramic oxide and clay minerals, glass, hydroxyl phosphate
Carbon fiber, catalyst, cellulose, pigments, coatings, plastics and polymers
4. Building materials
Bentonite, cement clinker, polymer, gypsum, sand, stone
5. Environmental research
The mixture, electronic chips, sludge, waste
6. Mineral and metallurgical and metal electrons
Alloys, coal, coke, iron ore, metal oxide, quartz, semi-precious stone, slag, magnetic materials, etc.
Product Accessories Introduction
Grinding jar and ball material: zirconia, silicon oxide, agate, tungsten carbide, stainless steel, high chrome steel, nylon, polyurethane, polypropylene (PP), PTFE, alumina.
Jar volume: 50ml, 100ml, 200ml, 250ml, 500ml, 1L, 1.5L, 2L, 2.5L, 3L, 4L, 5L, 10L, 15L, 20L, 25L.
Ball size: 1mm to 20mm all available.
Detailed Photos
Product Parameters

Model	Sqm-0.4L Laboratory Oil Sealed Small Planetary Fine Grinding Ball Mill Machine Price
Capacity	50-100ml*4 jars=400ml=0.4L
Style	Planetary
Grinding ways	Dry grinding, wet grinding, vacuum grinding, low temperature grinding
Loading and unloading method	Intermittent type
Transmission mode	Gear drive
Speed control mode	Frequency conversion speed regulation
The revolution speed(r/min)	5-450
Rotation speed(r/min)	10-900
Rated power(KW)	0.55KW
Run time(h)	0-9999
Feed particle size(mm)	<15mm, hard material <3mm
Grain size(μm)	0.1μm,or 100nm
Net Weight	35KG
Dimension	55*35*33m
